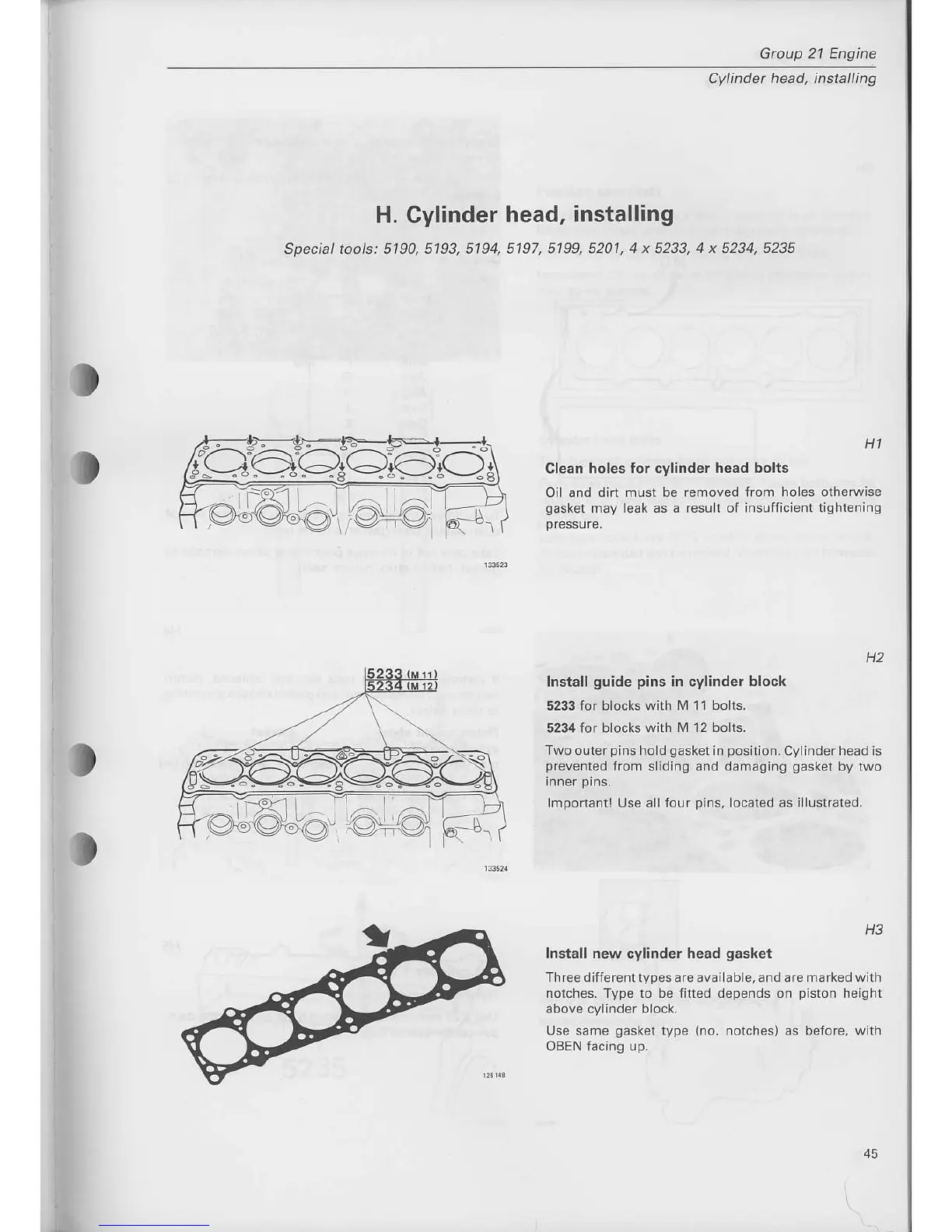

Group 21 Engine
cylinder head, installing
H. Cylinder
head,
installing
Special tools: 5190, 5193,
5194, 5197,5199.5201,4 x 5233, 4 x 5234, 5235
Clean holes lor cylindel
h6ad bohs
Oil and
dirt must be removed from holes
gasket
may leak as
a result of insufficient
H2
lnstall
guide pins
in cylinder block
5233 for blocks
with M 11 bolts.
5234 for blocks with M 12 bolts.
Twoouterpins hold
gasket
in
position.
Cylinderhead is
prevented
from
slidjng and clamaging
gasket
by two
inner
pins,
lmportantl Use all four
pins,
located as
illustratsd.
H3
Install
new cylinder
head
gasket
Thres dil{sr€nttypes are available, and are marked with
notches. Type
to
be fitted depends
on
piston
height
above cylinder block.
Use s8me
gasket
type
(no,
notches) as
before, with
OBEN facing up.
H1
tightening
45
?/'--'\r
S--:'l
Q4t
)io.iQ
