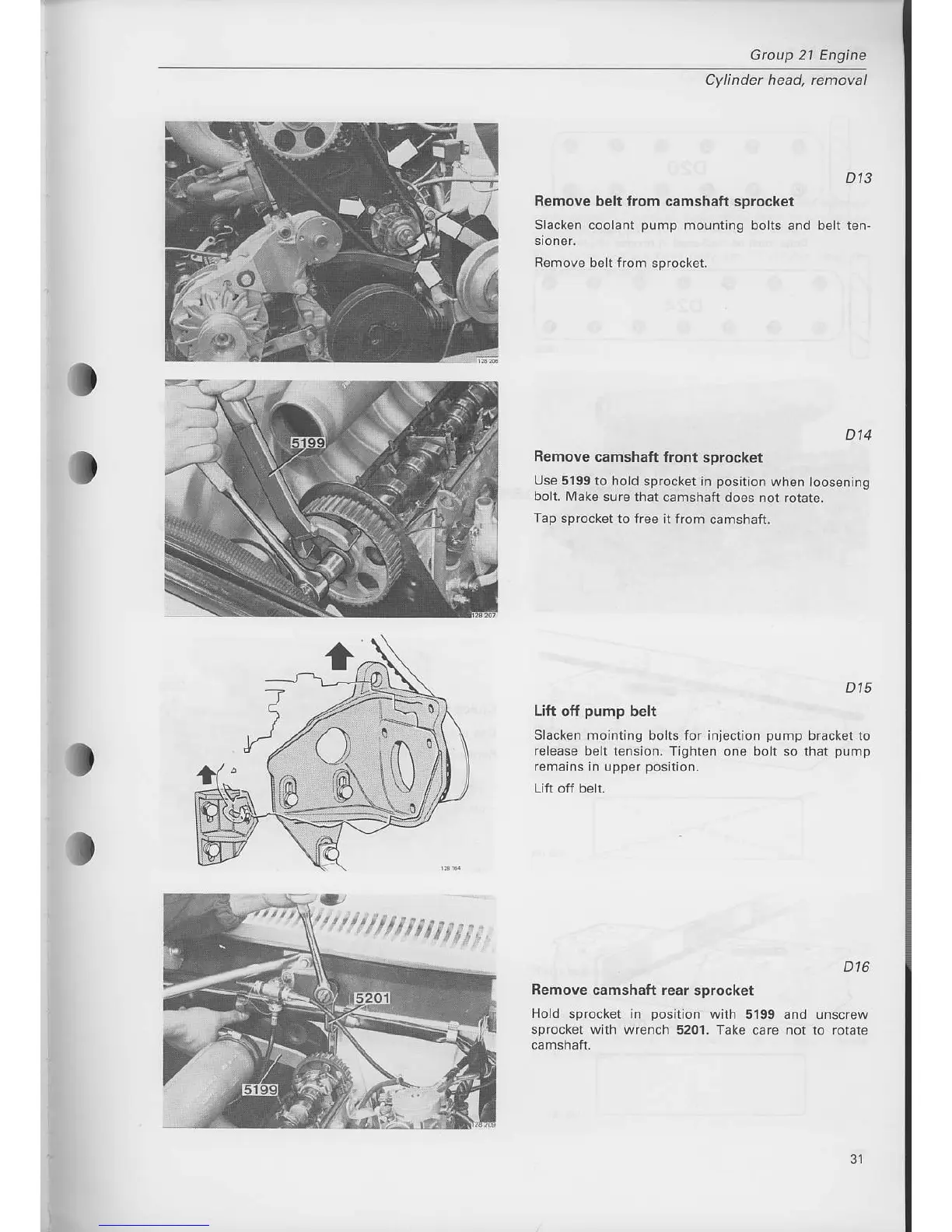

Cylinder head, removal
D13
Remove belt from
camshaft sprocket
Slacken coolant
pump
mounting bolts
and
belt
ten
Remove
belt
from
sprocket.
D14
Bemove
camshaft front
sprocket
Use 5199
to hold sprocket
in
posjtion
when toosening
bolt.
IMake sure
that camshaft does
not rotate.
Tap
sprocket
to free it from
camshaft.
Lift
off
pump
belt
Slacken mojntins bolts for
injection
pump
re
ease belt tension. Tighten one bo t so
remaans in upper
position.
Lift off belt.
D15
D16
Remove camshaft rear
sprocket
Hold sprocket in
position
with 5199 and unscrew
sprocket with wrench 5201- Take
care not to rorate
31
