21 Engine

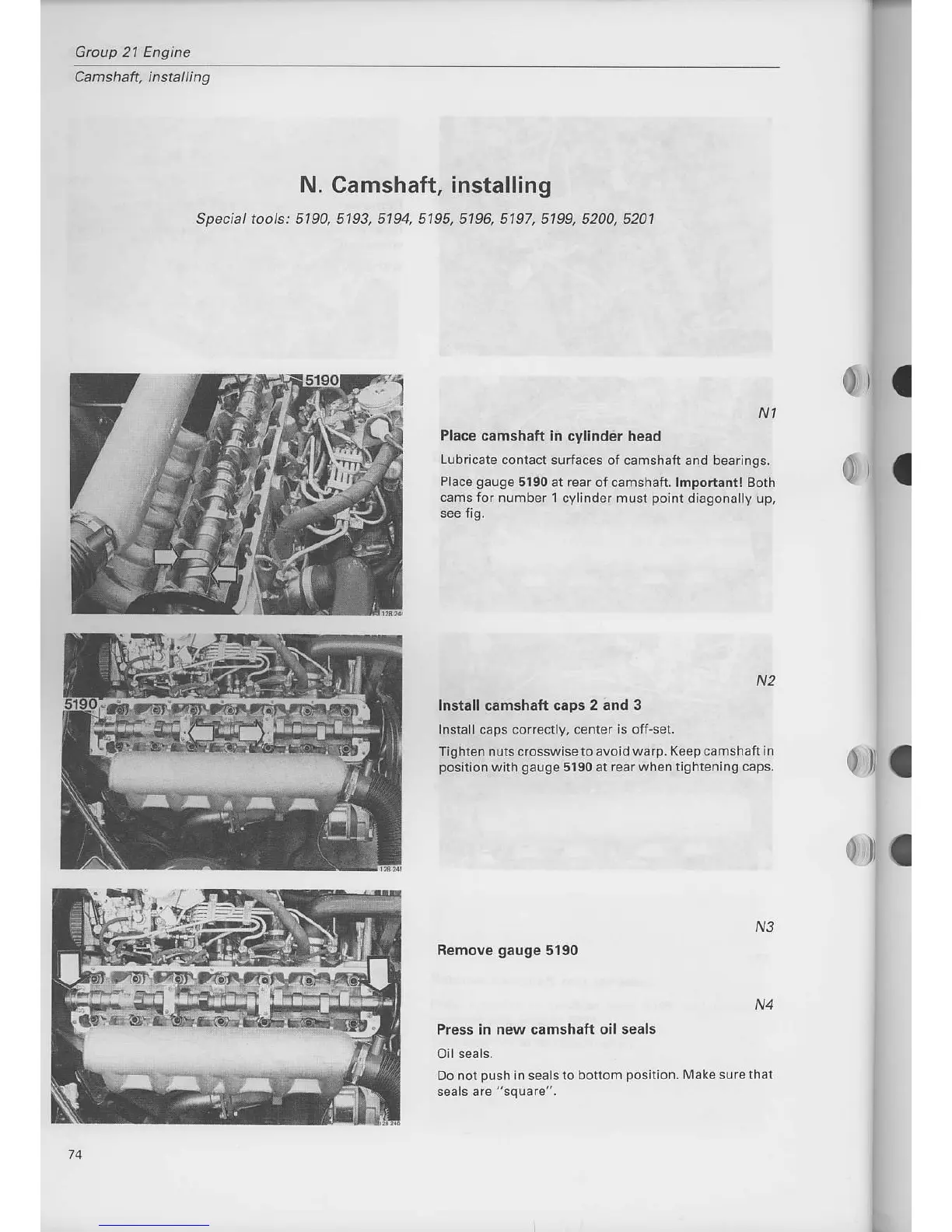

Camshaft, installing
S
pecial
tools : 5 1 90, 51 93, 51 94, 51 95, 51 96, 51 97, 51 99, 5200, 5201
N. Camshaft, installing
Remove
gauge
5190
Place camshaft in
cylinder head
Lubricate
contact surfaces of
camshaft and bearings.
Place
gauge
5190
at
rear
of camshaft. lmportant! Both
cams for
number 1 cylinder rnusl
point
diagonally
up,
see iig.
N2
Install camshaft caps
2 and 3
Install
caps
correctly, cenrer is off set.
Tighten nuts crosswise
to avoid warp. Keep camshaft
in
position
with
gauge
5190 at
rear when tightening caps.
0)i
a
0rl
N3
Press
in new camshaft oil seals
Oil
seals.
Do
notpush in sealstobottom
position.
Makesurethat
seals are "square'-
0)a
0)a
L
