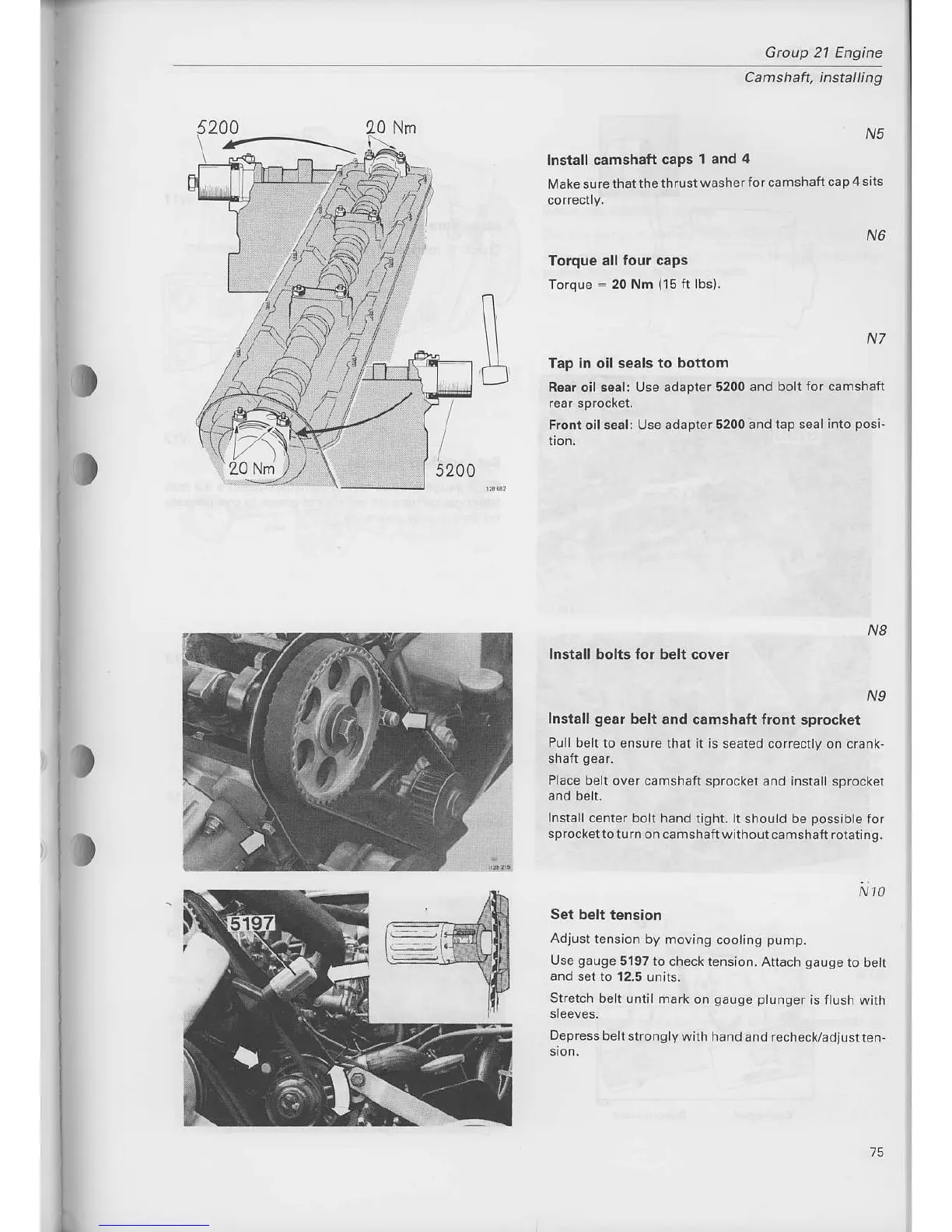

Group 21 Engine
Camshaft, installing
N5
Install camshaft
caps 1 and
4
fMak€ sure
thatthe thrustwasherfor
camshaft
cap 4 sits
Torque all four caps
Torque
=
20 Nm
(15
ft lbs).
D
,D
D
Tap in oil seals to bottom
R€ar oil se6l: Use
.dapter 5200 and bolt
for camshaft
Front oil sealr tise adapter 5200
and tap seal into
posi
N8
Install
bolts tor belt cover
N9
Install
gear
belt and camshaft front
sprocket
Pull belt to
ensure that it is seated correctly
on crank
Place
beli over camshaft sprocket
and install sprocket
Install center bolt hand
tight. lt shoulcl be
possible
for
sprocketto
turn on camshaft withoutcamshaft
rotating.
Set belt tension
Adjust
tension by
moving cooling
pump.
Use gauge
5197to
checklension. Artach gaugero
betr
and set to 12.5
units.
Slfetch belt
untii mark
on
gauge
ptunger
is ftush
wilh
Depress
belt strongly with
hand and rechecuadjustten,
20 Nm
75
