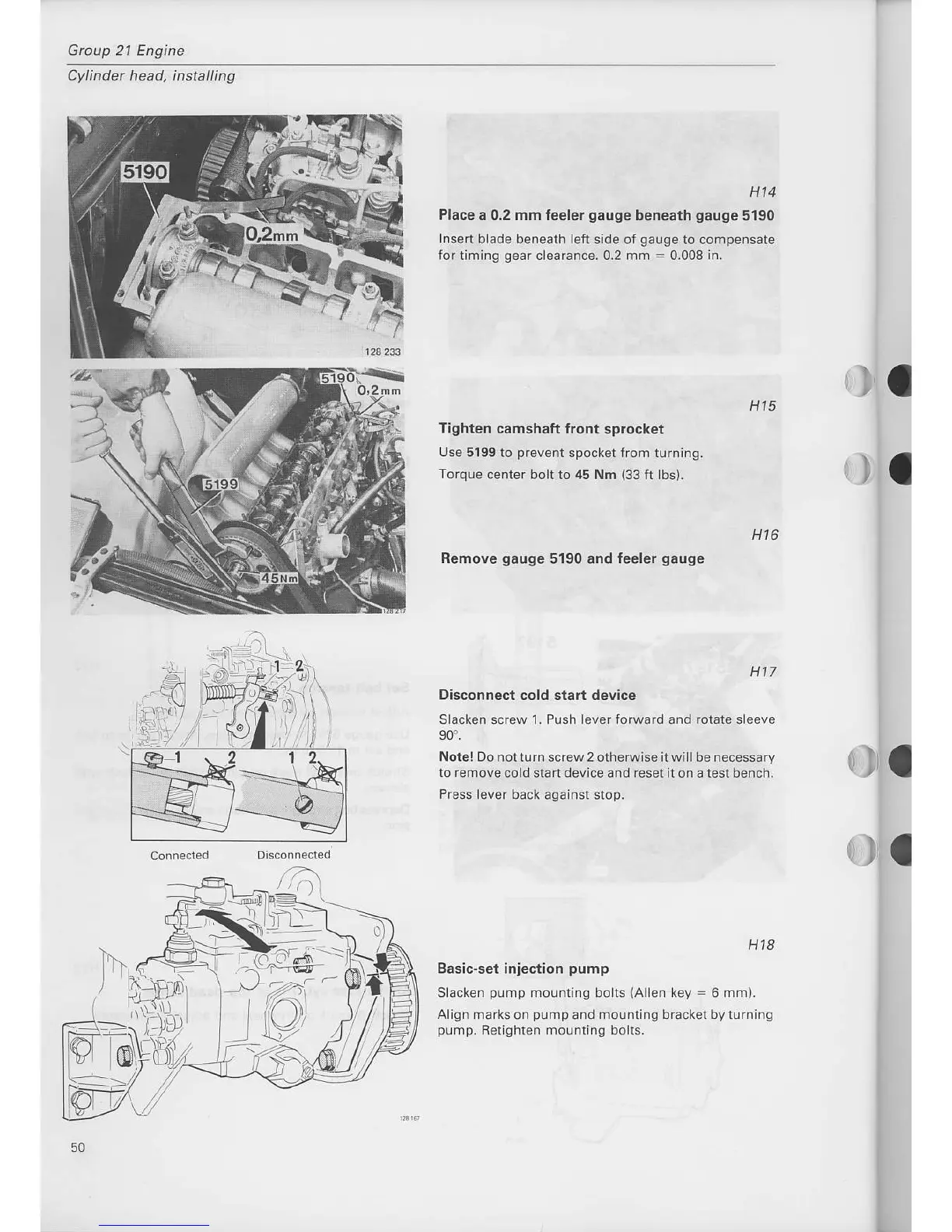

Group 21 Engine
Cylinder head, installing
H14
Place a 0.2 mm feeler
gauge
beneath
gauge
5190
Insert
blade beneath left side of
gauge
to compensale
for timing
gear
clearance. 0.2 mm
=
0.008 in.
Ht5
Tighten
camshaft front
sprocket
Use 5199 to
prevent
spocket from turning.
Torque
center bolt to 45 Nm
(33
ft tbs).
,)
a
)e
H16
Remove
gauge
5190 and
feeler
gauge
H17
Disconnect
cold start device
Slacken screw 1. Push leverforward and rotale sleeve
90'.
Not€! Do notturn screw 2 otheMise it will be necessary
to removecold
startdevice and reset il on a test bench.
Press lever
back against stop.
H1a
Basic-set injection
pump
Slacken
pump
mounting bolts
(Alen
key
=
6 mm)
Align marks
on
pump
and
mounting bracket by turning
pump.
Retighten mounting bolts.
