Step3: in this interface, user can adjust brightness, hue,
saturation and contrast in live; click “default” button to
resort default setting; click “OK” button to save the
setting.
Step4: user can setup all channels with same parameters,
tick off “all” to do relevant setup.

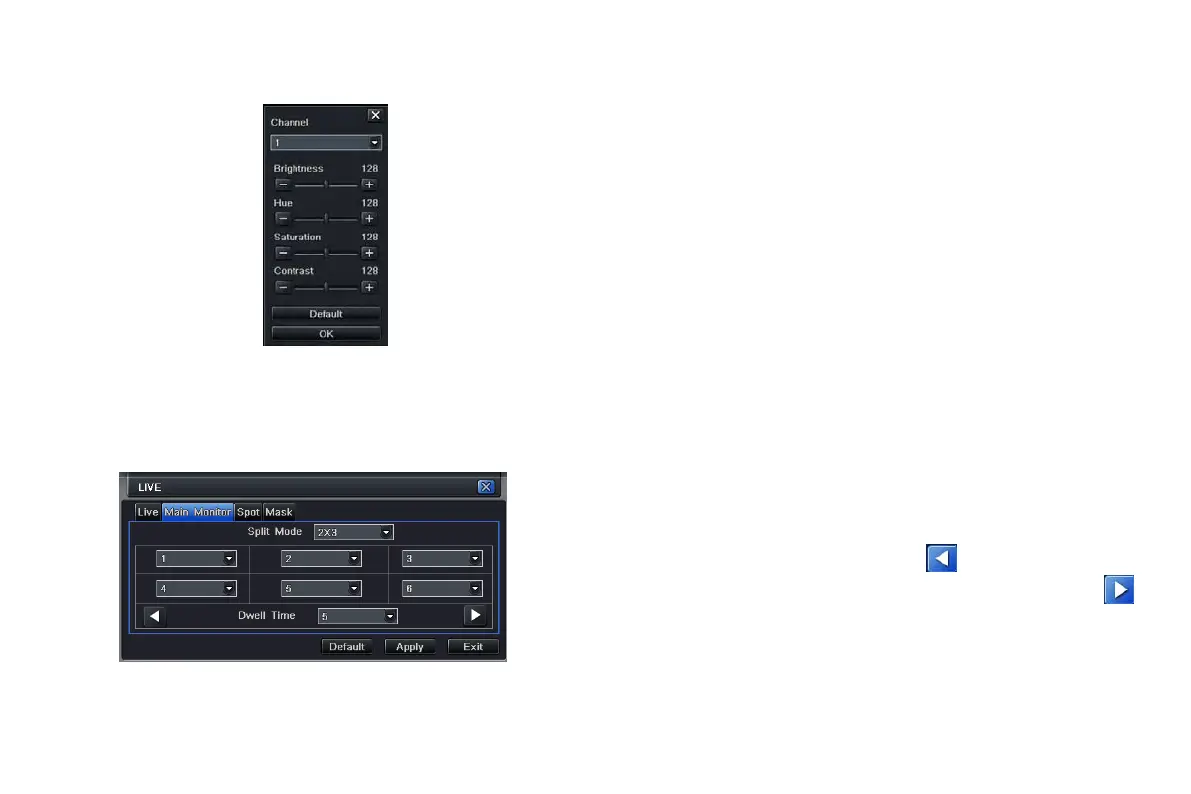

Fig 4-7 live-color adjustment
4.2.2 Main monitor
Step1: enter into system configurationlive configurationmain monitor; refer to Fig 4-8:
Step2: select split mode: 1×1、2×2、2×3、3×3、4×4, 5×5, 6×6 and channel
Step3: dwell time: the time interval for a certain dwell
picture display switching to next dwell picture display
Step4: while selecting the split mode, user can setup the
current picture group. Click
button to setup the
previous channel groups of dwell picture and click
button to set the latter channel groups of dwell picture.
Fig 4-8 live configuration-host monitor
