3.3 Simulator Components

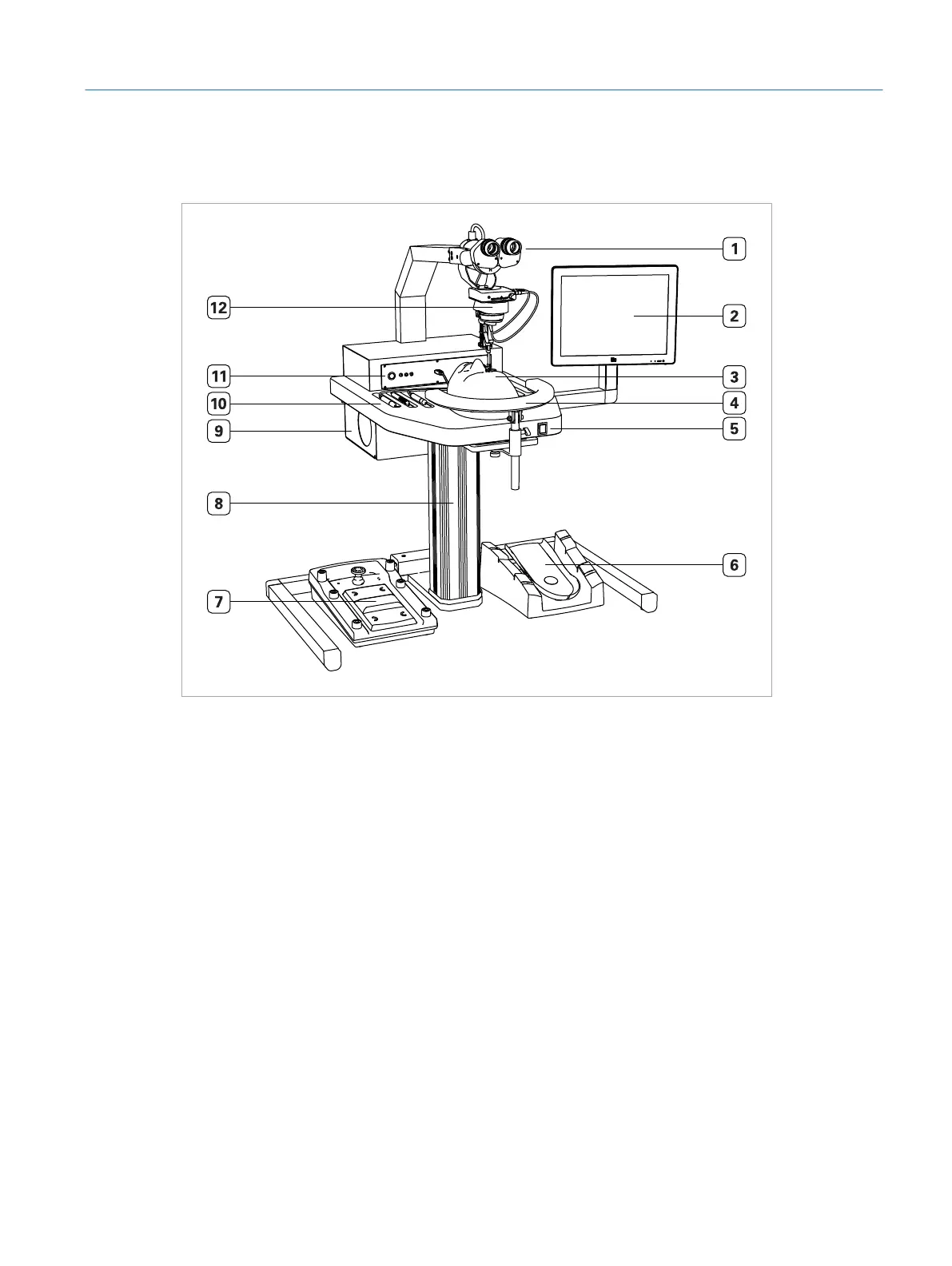

Fig. 1: Overview of the Eyesi Surgical simulator
1 Stereo microscope
2 Touch screen
3 Surgical interface head
4 Optional wrist rest
5 Height adjustable operating table
6 Instrument foot pedal
7 Microscope foot pedal
8 Lifting column
9 Simulator PC
10 Instruments
11 Front panel with power button and ports for interface head and instruments
12 Optional widefield optics for vitreoretinal surgery (Oculus BIOM
®
/SDI
®
)
