| Start-up
34 | CO2 Incubator Basic VWR
Chapter 5
Connection to the power supply system:

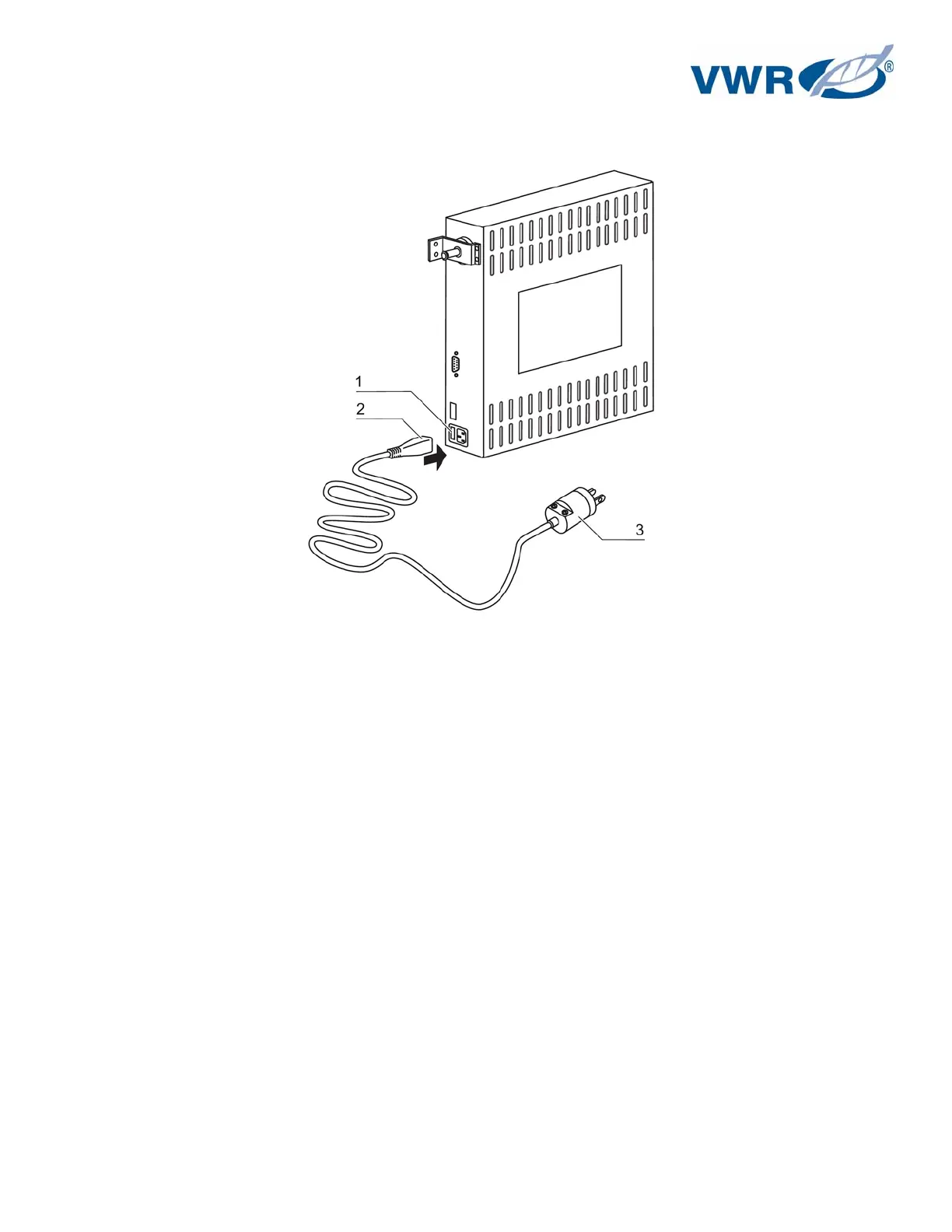

Figure 13 – Power supply connection
1. Before connecting the device to the power supply, check to see if the voltage of the power
supply corresponds with the specifications on the nameplate at the front of the device. If the
ratings given for voltage (V) and current (A) are not correct, the device must not be connected to
the power supply.
2. Connect the connector for non-heating appliances [2] to the socket [1] at the control box of
the device.
3. Connect the grounding plug [3] of the power supply cable to a correctly grounded and
fused socket.
4. Make sure the power supply cable is not subjected to tensile or compressive force.
