VWR CO2 Incubator Basic | 69
Maintenance |
Chapter 10
Replacing the device fuses

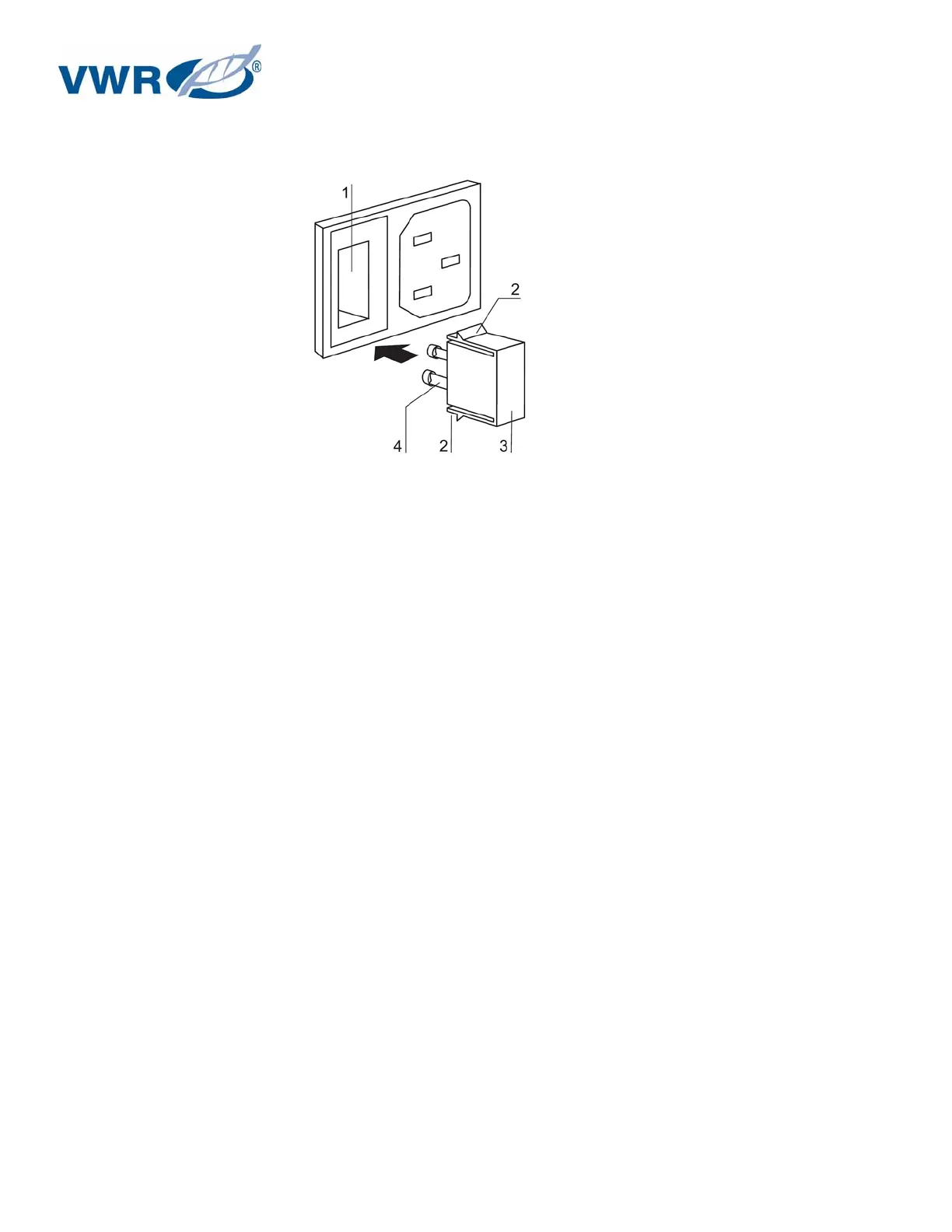

Figure 22 – Device fuse replacement
The two identical device fuses [4] are installed in the fuse compartment [1] next to the power plug
receptacle of the device:
Time delay fuses, 6.3 A (5x20 mm)
1. The fuse holder is secured to the fuse compartment [1] using two locking tabs [2].
2. To remove the fuse holder, squeeze the two locking tabs and pull holder [3] out of fuse
compartment.
3. Remove faulty fuse from holder and install new fuse.
4. Slide fuse holder into fuse compartment and press holder on until locking tabs are fully
engaged.
