Clutch BTS Repair
wc_tx000298gb.fm 8
3.2 Mounting muffler and heat plate

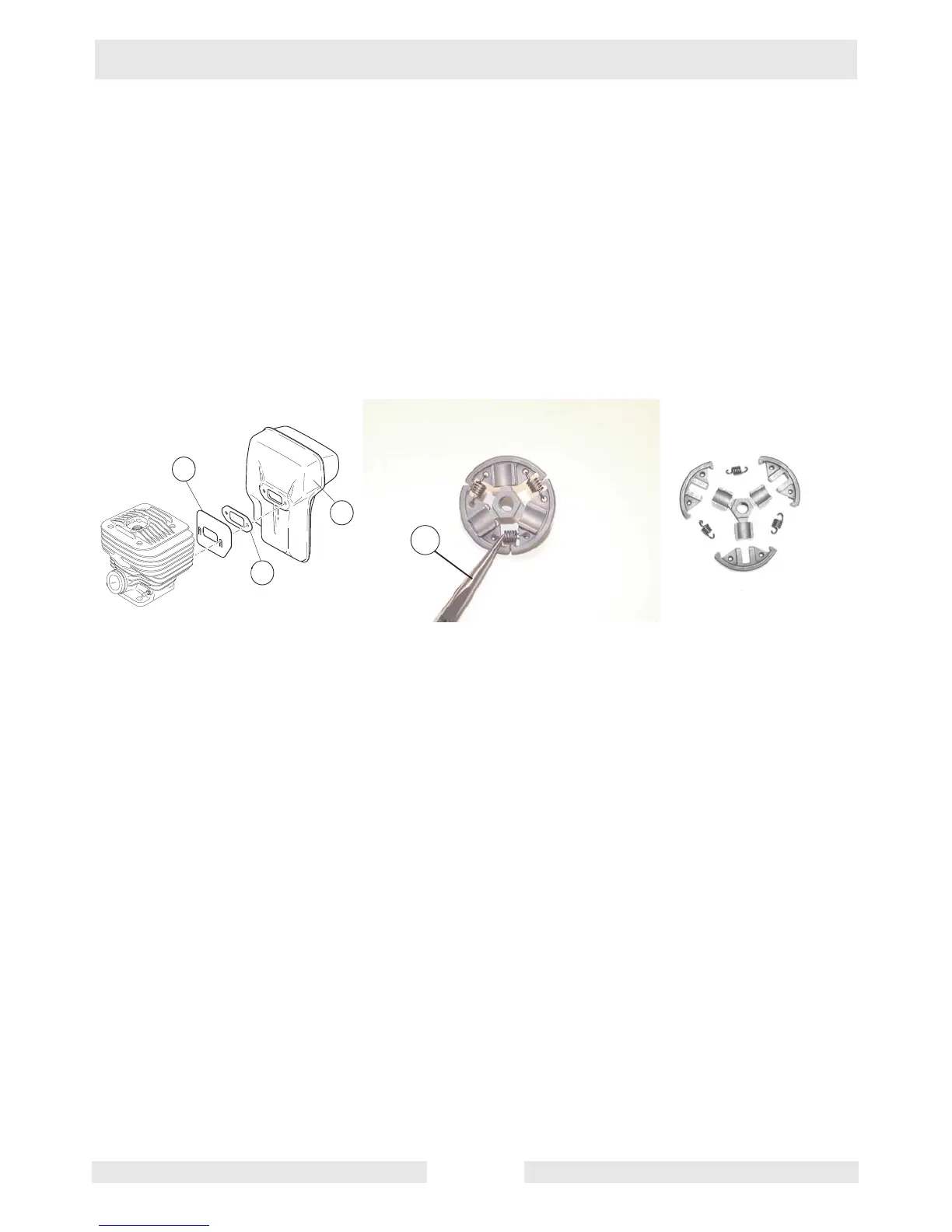

See Graphic: wc_gr001386
When mounting the muffler (10) ensure that the heat plate (12) is
installed correctly.
Note: The heat plate goes directly onto the cylinder, then the gasket
(13) and muffler.
3.3 Repairing the clutch
See Graphic: wc_gr001386
3.3.1 The tension springs of the clutch can be removed/ replaced with
pointed pliers (b). If spares are required, the 3 tension springs are only
available as individual parts.
3.3.2 The tension springs should only be replaced as a set if replacement is
required.
3.3.3 If the hub / flyweight is defective, the complete clutch must be
replaced.
