BTS Repair Cutting Attachment
wc_tx000307gb.fm 33
12.8 Removing / mounting the cutting device bearings
See Graphic: wc_gr001415
Removing
12.8.1 Warm housing, remove ball bearings, spacer sleeve and snap rings
from the housing.
Mounting
12.8.1 Heat housing up to approx. 212°F (100°C).
12.8.2 Mount external snap ring (4).
12.8.3 Push ball bearing (5) up against the ring.
12.8.4 Insert middle ring (6) and spacer sleeve (7), then push second ball
bearing up to ring.

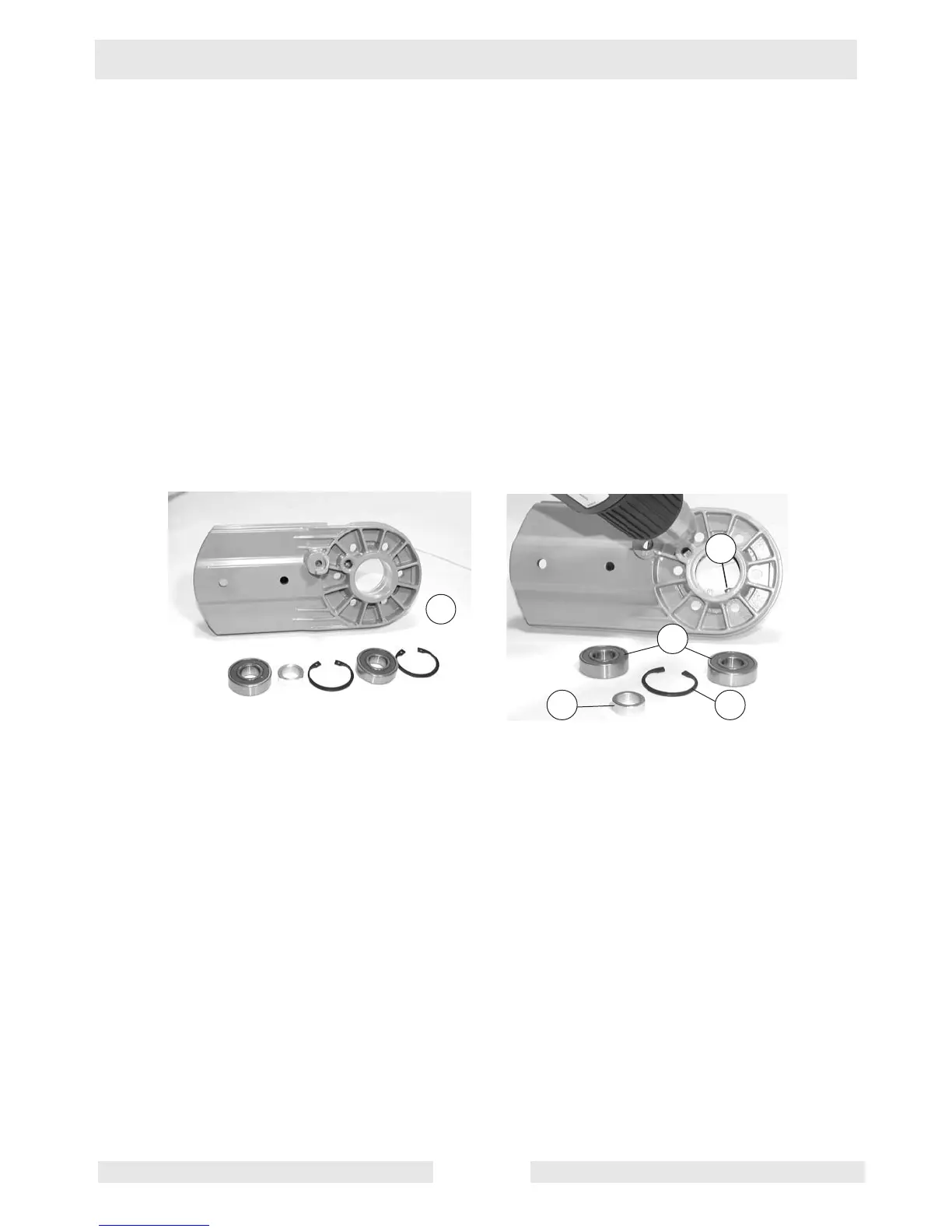

wc_gr001415
a
4
5
7
8
