Wacker Neuson BTS 930-8340

BTS Repair Carburetor
wc_tx000301gb.fm 19
6.2 Removing the carburetor and intake hose

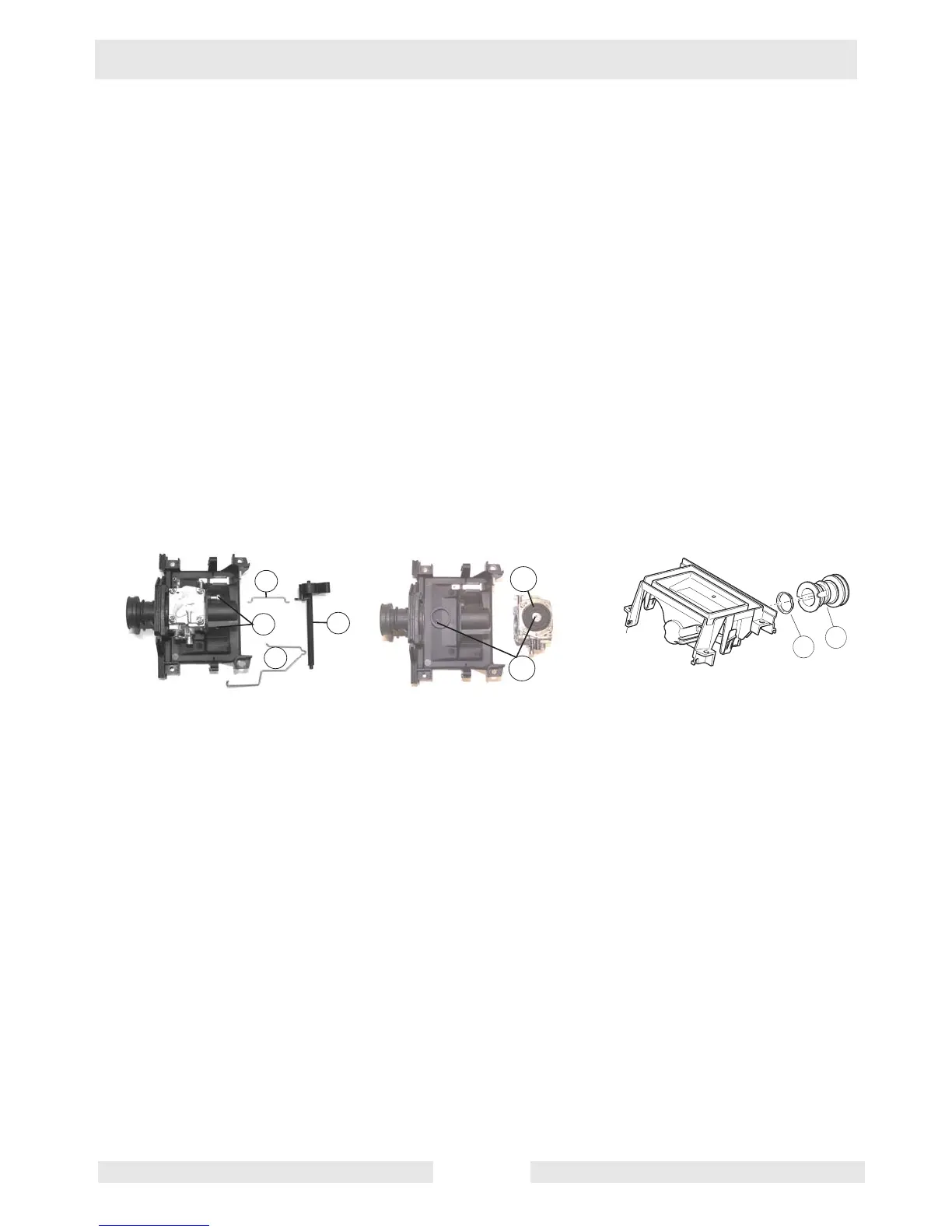

See Graphic: wc_gr001399
Removing the carburetor
6.2.1 Remove intake elbow with carburetor.
6.2.2 Remove choke shaft (1), choke rod (2) and throttle control rod (3).
Unscrew the two fixing screws (4).
6.2.3 Remove the carburetor from the intake elbow.
6.2.4 The seal (5) must not block the bore (6) for ventilating the control side
of the carburetor (compensation system).
Intake hose
6.2.1 Pull the intake hose (7) out of the intake elbow and check for damage.
6.2.2 Replace the insert (8) in the intake hose again before assembling the
carburetor.
7
8
wc_
g
r
001399
6
5
3
2
4
1
