Cutting Attachment BTS Repair
wc_tx000307gb.fm 34

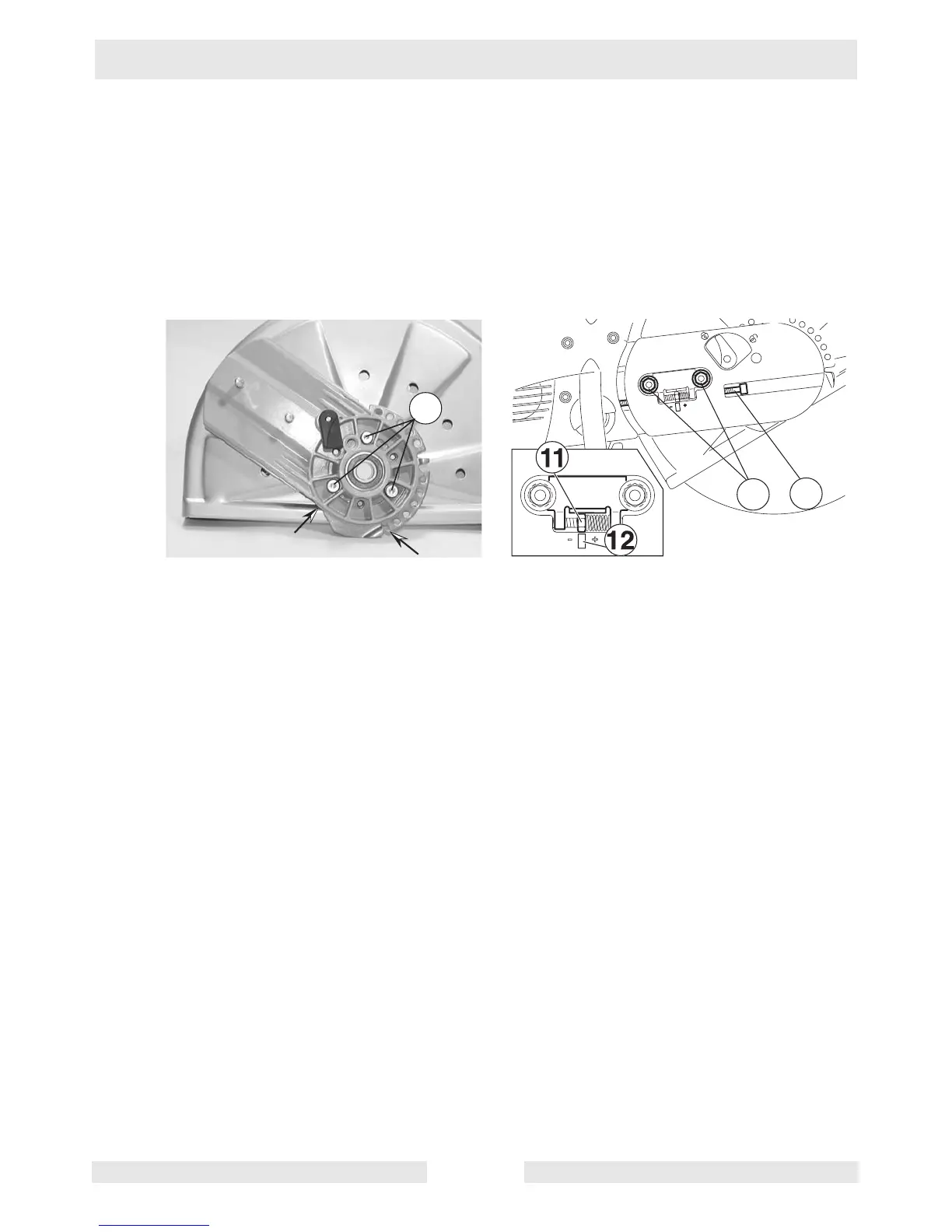

12.9 Adjusting the cutter guard holding attachment
See Graphic: wc_gr001416
If the guard is subjected to high stresses, the holding attachment and
the guard may no longer be aligned (arrows).
For correction, loosen screws (8) and adjust holding attachment.
12.10 Tensioning the V-belt
See Graphic: wc_gr001416
12.10.1 After mounting the cutting device, tighten the nuts (9) by hand.
12.10.2 Turn the screw (10) until the square nut (11) is aligned with the marking
(12) on the hood.
12.10.3 Tighten the nuts (9) to 14 ft.lbs. (20 Nm).
