Ignition System BTS Repair
wc_tx000299gb.fm 14

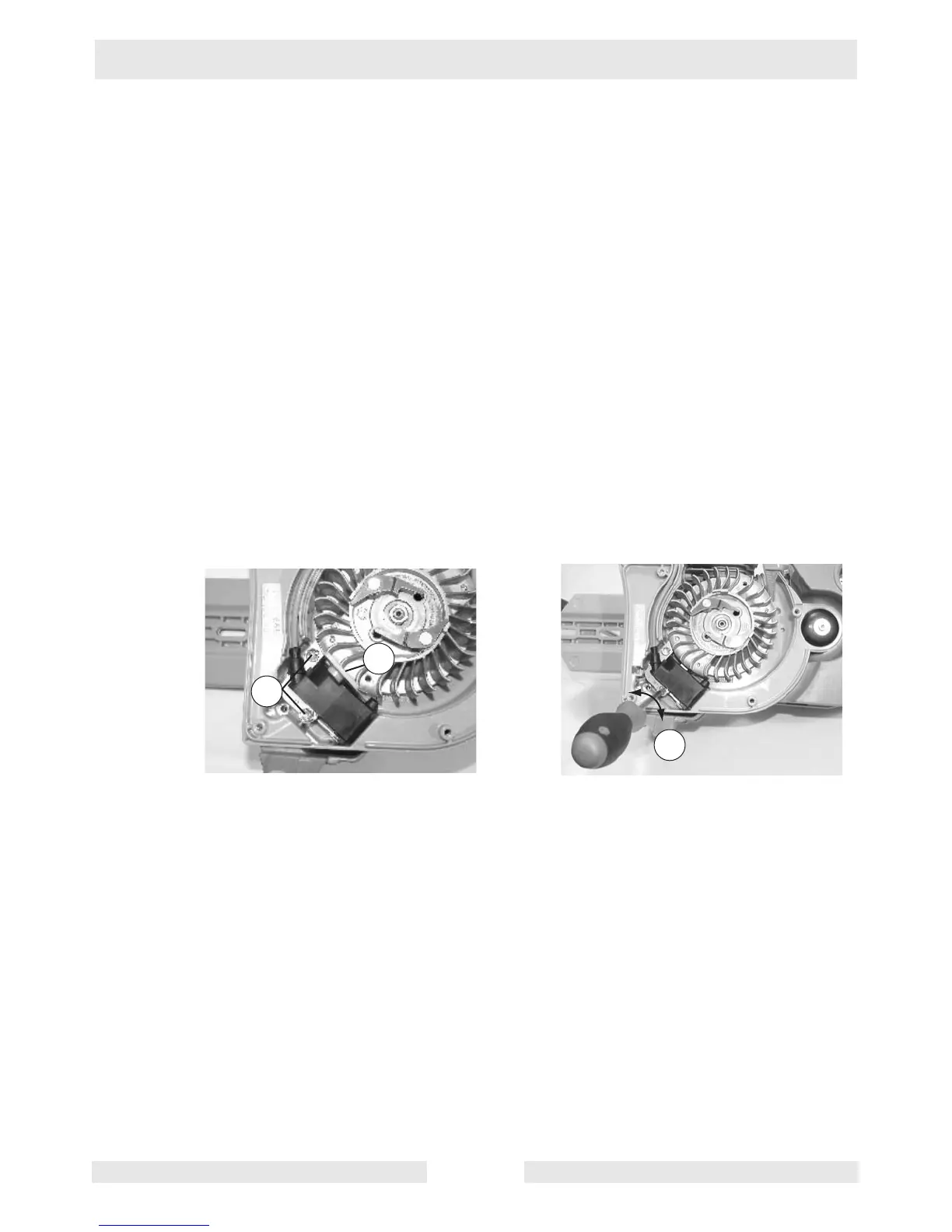

4.4 Removing/checking/mounting the ignition armature
See Graphic: wc_gr001394
Removing
4.4.1 Unscrew starting device.
4.4.2 Remove the two screws (1) of the ignition armature. Clip off ignition
and short circuit cable.
Checking
4.4.1 In the event of a fault, first check the ignition ground connection.
To do this, loosen and then tighten the screws (1) a few times, then
check ignition once again.
Mounting
4.4.1 Connect ignition and short circuit cable.
4.4.2 Position with 0.012" – 0.016" (0.3 mm – 0.4 mm) (a) between ignition
device and magnet on the flywheel.
4.4.3 Press ignition device firmly whilst at the same time tightening the
screws evenly.
1
a
b
wc_gr001394
