BTS Repair Ignition System
wc_tx000299gb.fm 13

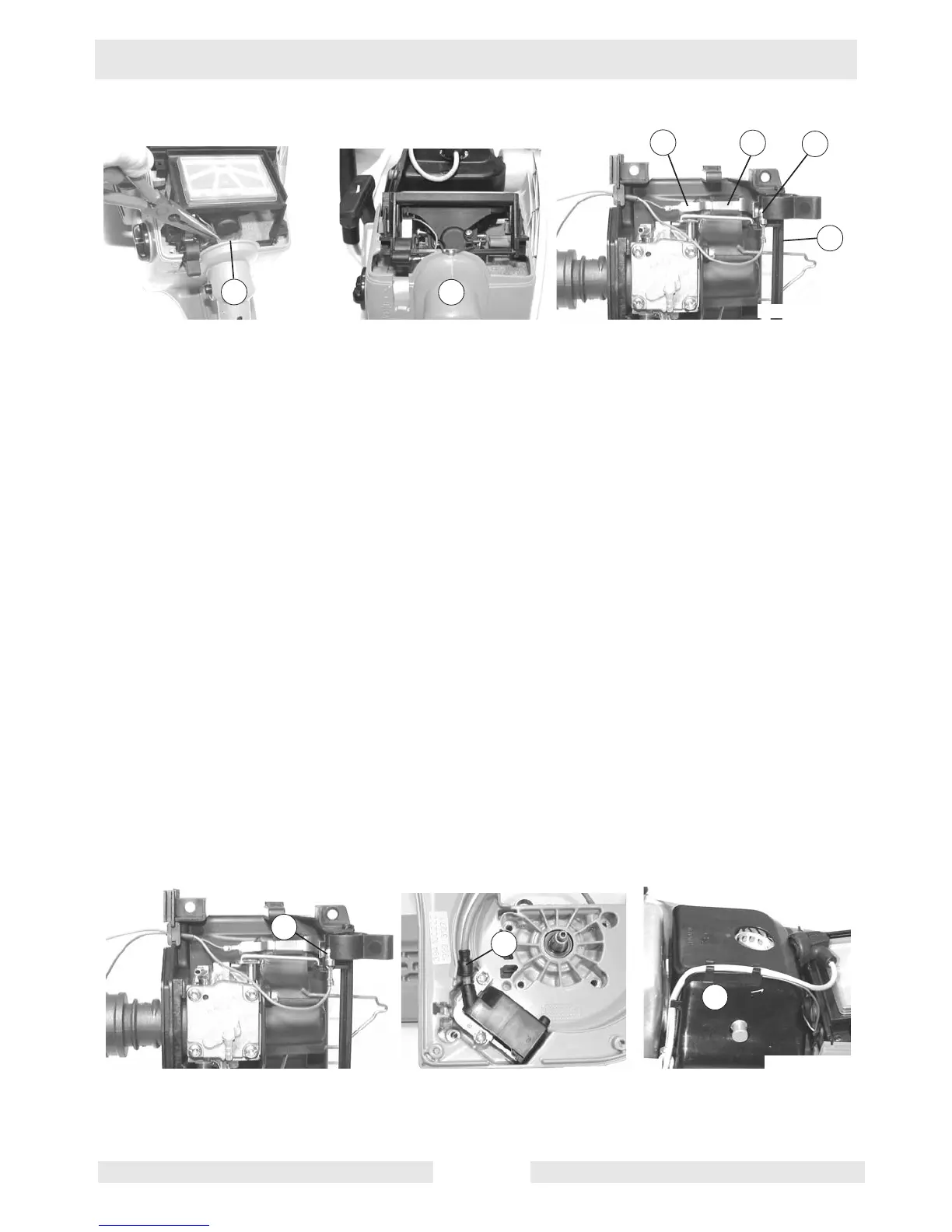

Assembling
4.3.1 When mounting the short circuit cable, make sure that the connection
between the connector lug of the short circuit cable and the contact
spring is in order (a).
4.3.2 Twist ignition cable into the ignition armature.
Note: To prevent moisture leaking in, fill protective cap (4) with silicone
before replacing.
4.3.3 As a safety measure, lay the short circuit cable in the brackets
underneath the ignition cable during assembly (b).
7
8
5
6
c
d
wc_gr001392
wc_gr001393
b
4
a
