BTS Repair Cutting Attachment
wc_tx000307gb.fm 31

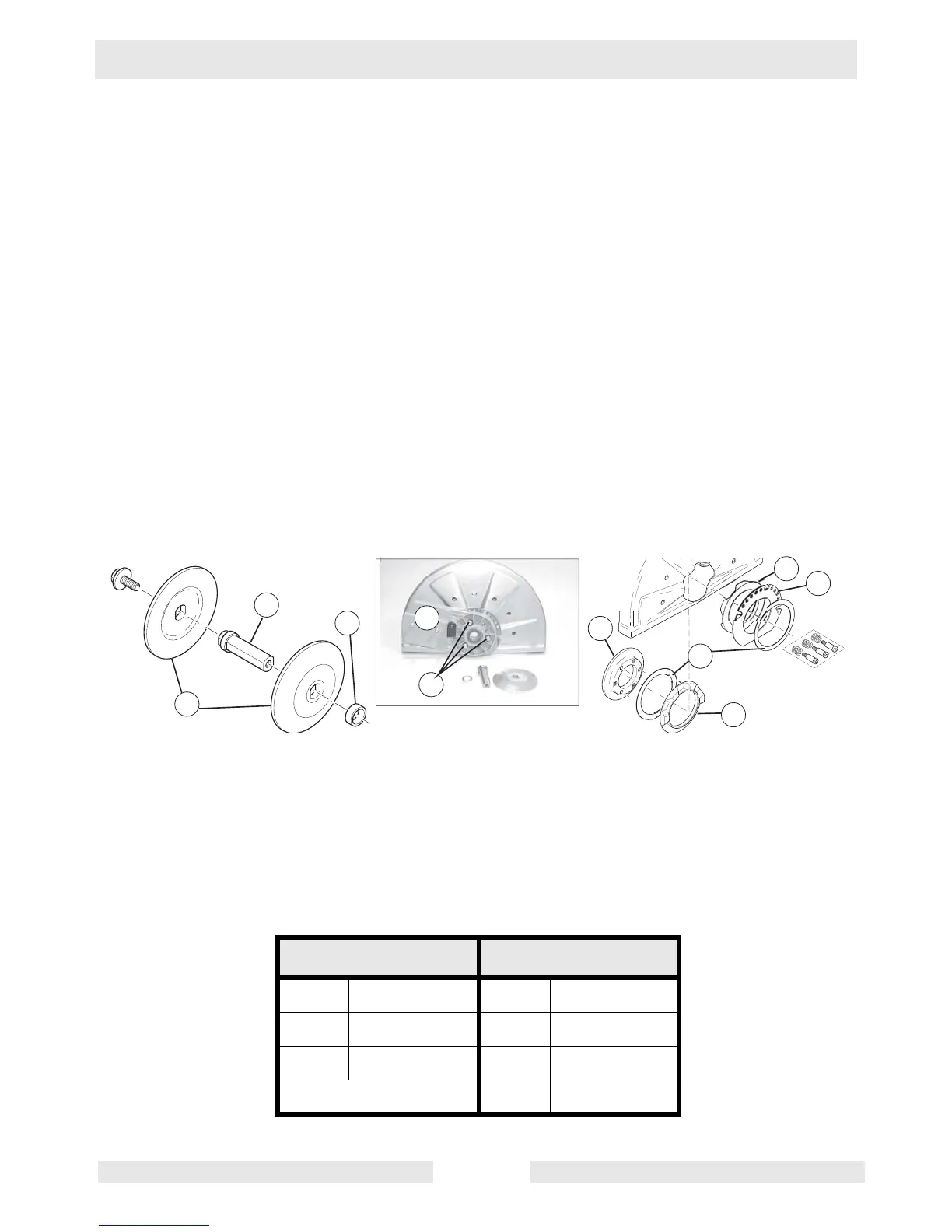

12.3 Replacing the drive axle
See Graphic: wc_gr001413
To remove the axle (7), the pressure disk (8) and the V-belt pulley must
be dismantled.
Note: When mounting the inner flange disk, make sure that the spacer
sleeve (9) 0108151 is mounted.
12.4 Removing the complete pressure ring
See Graphic: wc_gr001413
Unscrew the 3 screws with springs (10), the housing (14) and the
pressure ring (11).
Note: The screws (10) have to be fitted at angles of 120° and are
tightened to 7.3 ft.lbs. (10 Nm).
12.5 Cutter guard holding attachments
See Graphic: wc_gr001413
When mounting, place as follows:
Inside Outside
11 Pressure ring 14 Housing
12 Teflon ring 12 Teflon ring
13 Rubber part 16 Locking plate
- 15 Rubber part
