Ignition System BTS Repair
wc_tx000299gb.fm 12

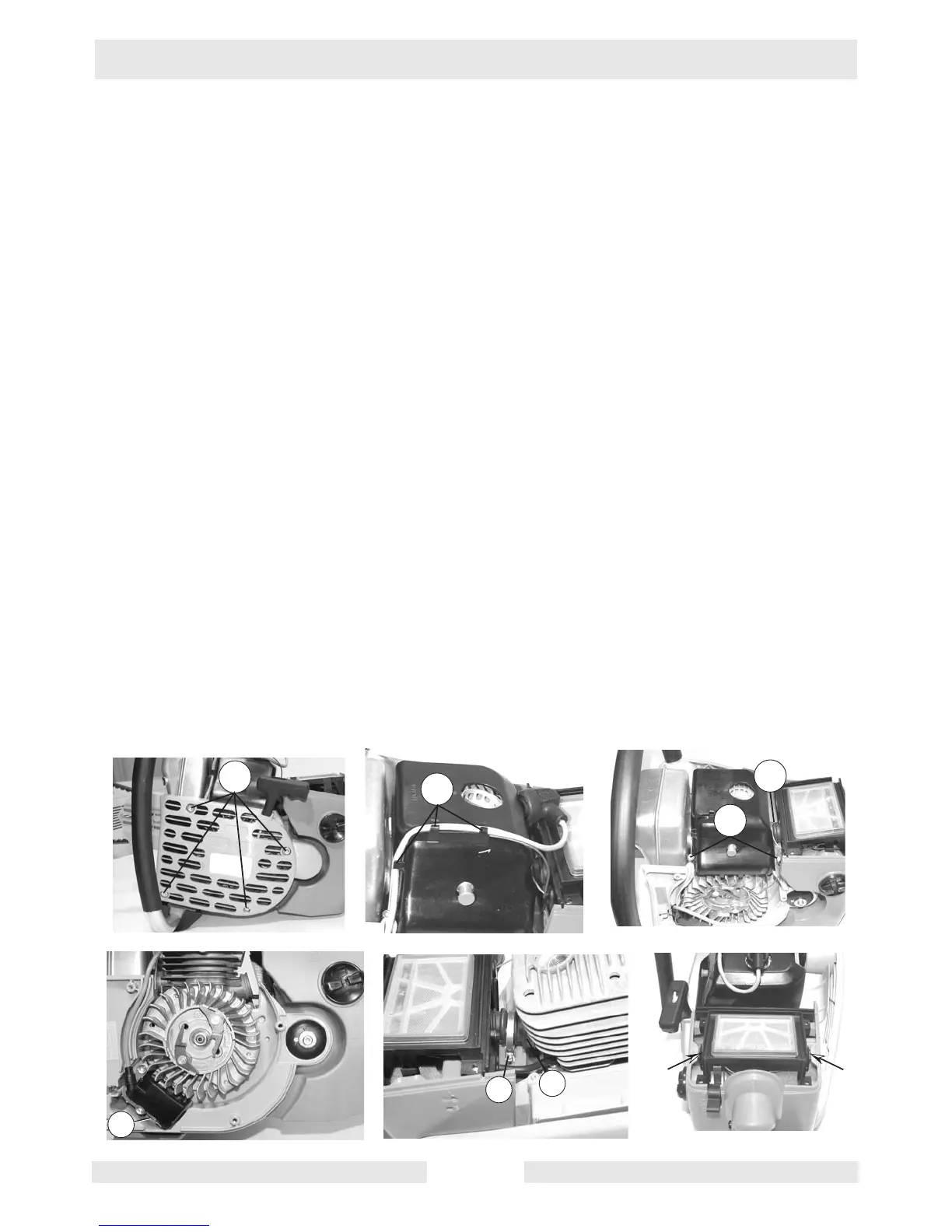

4.3 Removing/assembling the ignition / short circuit cable
See Graphic: wc_gr001390, wc_g001391, wc_gr001392 and wc_gr001393
Removing
4.3.1 Unscrew the starter device that is fixed with 4 screws (a).
4.3.2 Unscrew filter hood.
4.3.3 Remove ignition and short circuit cable from the guide (1) of the hood.
4.3.4 Remove hood - to do this, unscrew the 3 screws (2).
4.3.5 The screw (2a) also holds the grounding wire.
4.3.6 Unscrew ignition from the ignition armature.
4.3.7 Loosen short circuit cable from the socket connection (b).
4.3.8 Loosen the hose clamp (3) of the intake hose.
4.3.9 Pull the suction hose (4) off the cylinder.
4.3.10 Loosen the locking device of the intake elbow from the tank housing.
To do this, push both levers inwards (arrows) and lift the intake elbow
slightly.
4.3.11 Push throttle control rod towards the cylinder using pointed pliers,
pulling upwards out of the guide of the gas grip (c).
4.3.12 Remove intake elbow with carburetor and choke shaft from the tank
housing (d).
4.3.13 Pull short circuit cable (5) from its place in the choke shaft (6).
4.3.14 Loosen grounding wire (7) from the socket connection of the contact
spring.
wc_gr001390
a
1
2
2a
3
4
b
wc_gr001391
