Starting System BTS Repair
wc_tx000300gb.fm 16
5. Starting System
5.1 Removing/mounting the starter / return spring

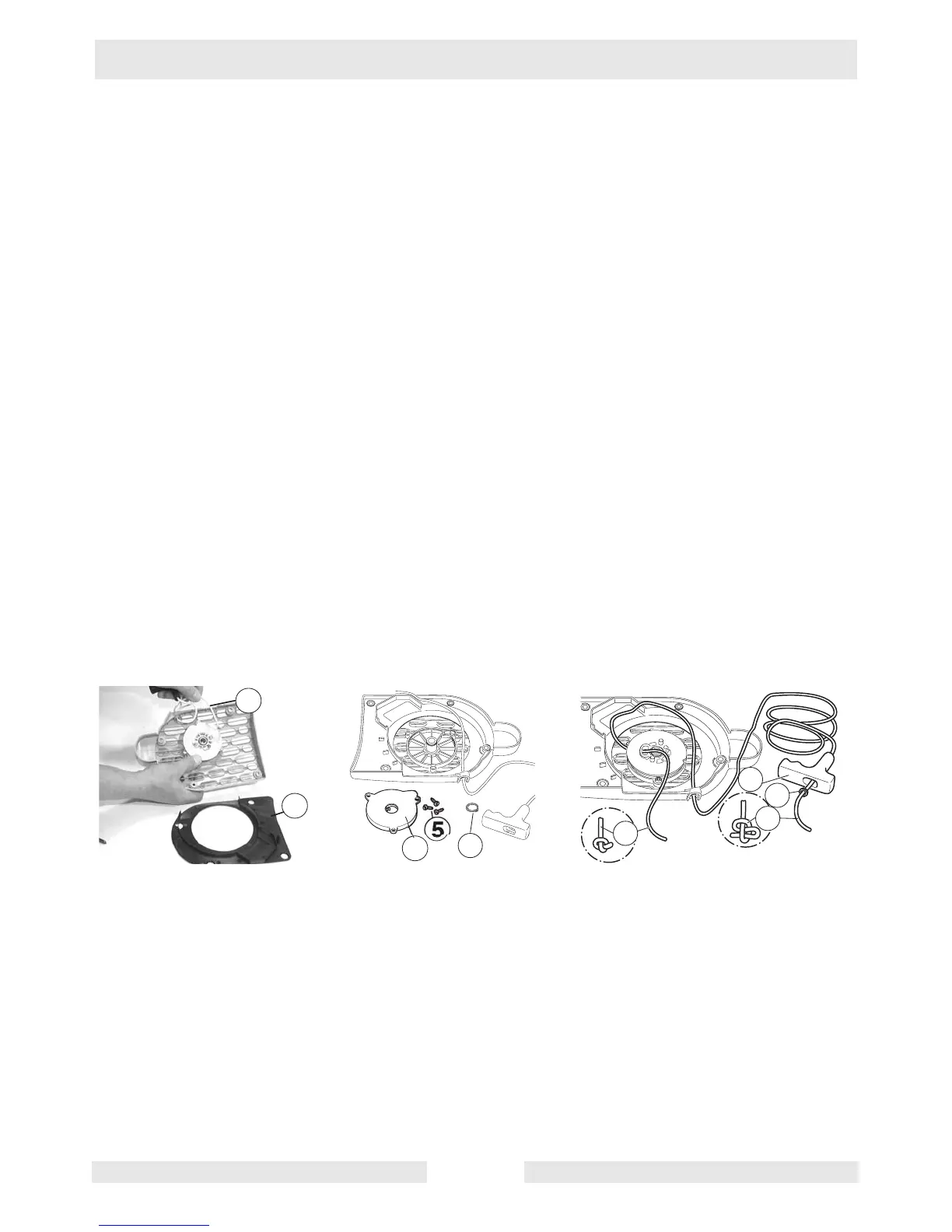

See Graphic: wc_gr001396
Removing the starter
5.1.1 Remove air duct (1).
5.1.2 Relieve the tension on the return spring by pulling out the starter cable
(2) slightly.
5.1.3 Hold cable drum and remove cable from rope drum. Let drum spool
back slowly.
Removing the return spring
5.1.1 To remove the return spring, remove the circlip ring (3); the return
spring (4) is in a cartridge which is fixed to the fan housing with three
screws (5).
Note: Lightly grease new spring.
Mounting the return spring /starter cable
5.1.1 Thread cable through, knotting (6) into the cable drum and knotting (7)
into the starter grip (8).
5.1.2 The washer (9) is mounted between the starter grip and the knot.
Note: Melt cable ends.
