5.2 Pretensioning/checking the return spring
See Graphic: wc_gr001367

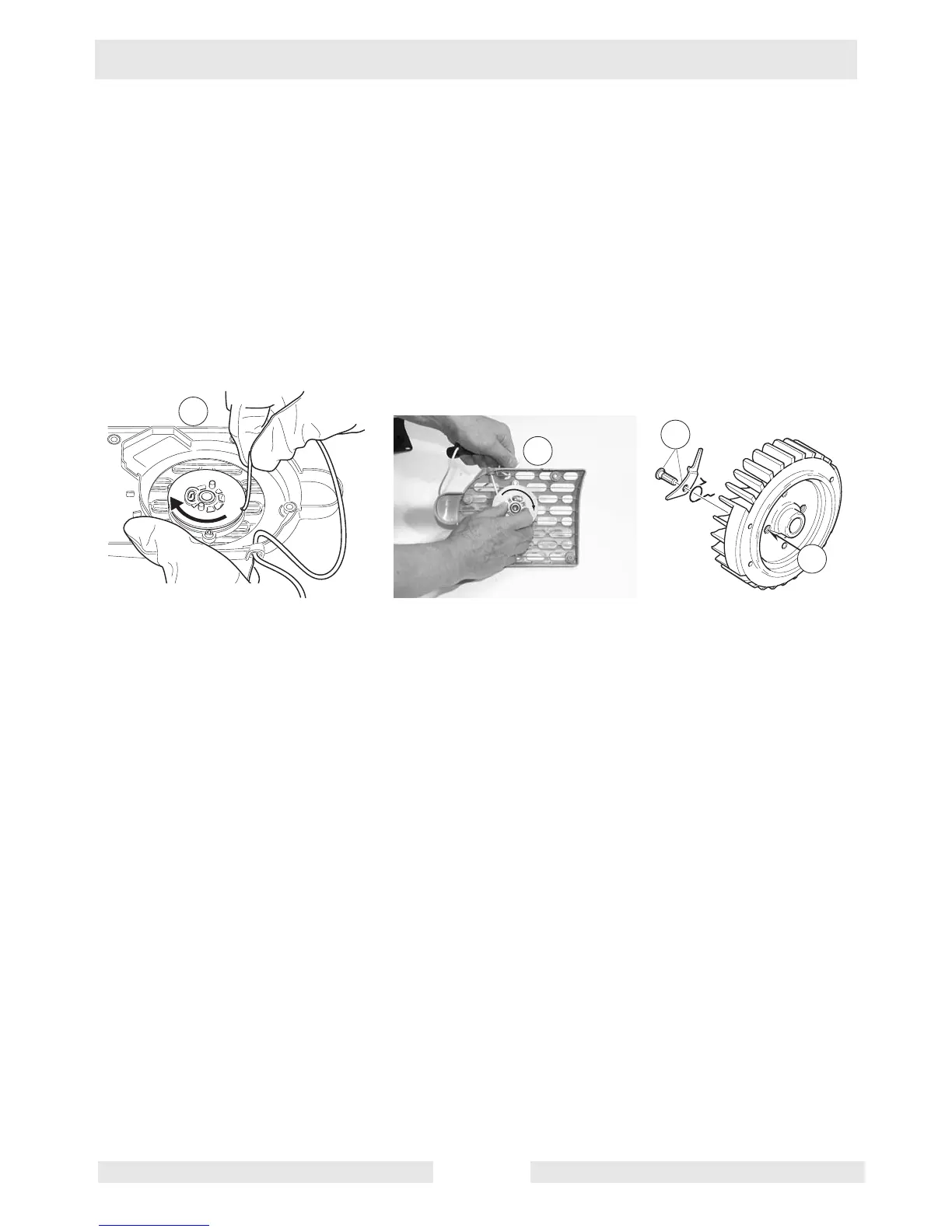

Pretensioning the return spring
Wrap the starter cable as far as possible around the drum. Hold cable
tight and turn the drum with the cable 2-3 times to pretension (a).
Checking the return spring
When the starter cable is fully extended, the rope drum must still turn
at least half a turn (b).
5.3 Replacing the starter ratchet
See Graphic: wc_gr001367
5.3.1 Knock out the bolts with a punch (c).
5.3.2 To assemble, push the punch in so far that there is only 0.06"–0.07"
(0.15 mm–0.2 mm) between the ratchet and the bolt (10).
