Cutting Attachment BTS Repair
wc_tx000307gb.fm 30
12. Cutting Attachment
12.1 Replacing the pressure disc

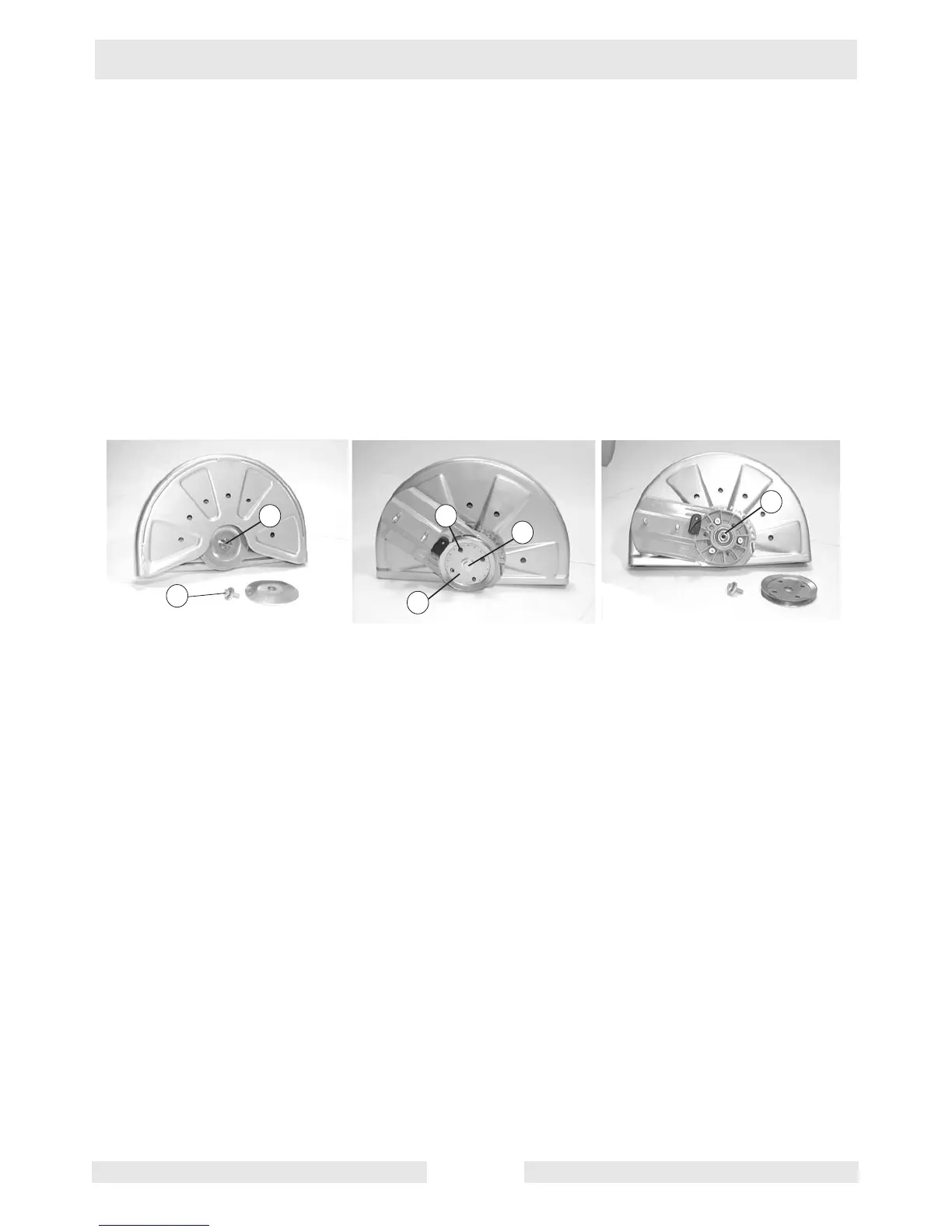

See Graphic: wc_gr001412
12.1.1 Undo screw (1) and remove pressure disc.
Note: With the 25.4 mm (1") axle, the inner flange is located behind the
recess of the axle (2).
12.1.2 Remove axle and flange together.
12.2 Removing / mounting the V-belt pulley
See Graphic: wc_gr001412
Removing
Block the V-belt pulley (3). To do this, push a pin through the hole (4)
in the V-belt pulley into the housing. Remove screw (5).
Mounting
When mounting the pulley, make sure that the shim 0108152 (6) is
mounted between the V-belt pulley and the ball bearing.
Note: The V-belt pulley is only fixed in place when the cutting disk is
mounted.
wc_gr001412
1
2
3
4
5
6
