Front Handle / Vibration Absorbers BTS Repair
wc_tx000303gb.fm 24

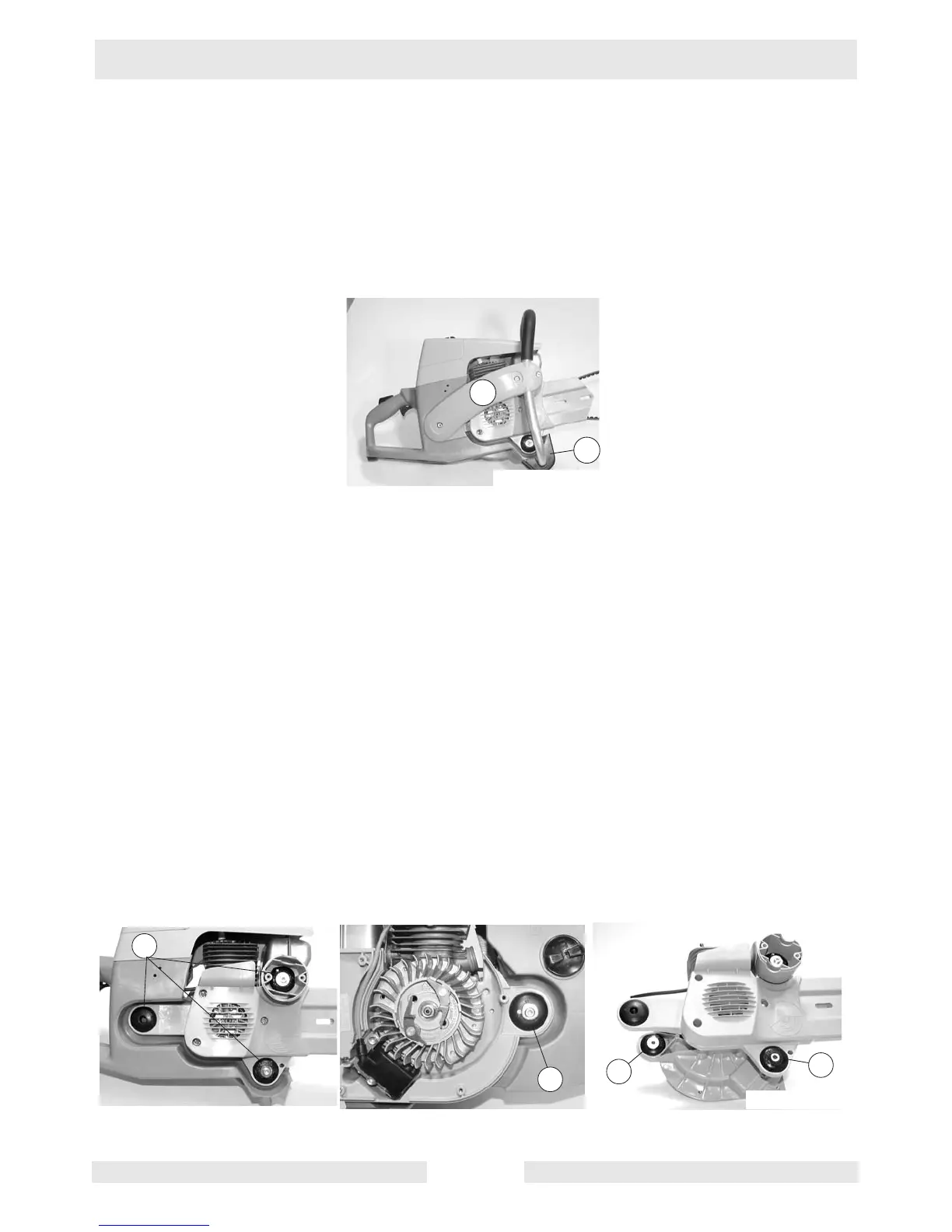

8. Front Handle / Vibration Absorbers
8.1 Removing and replacing the bracket handle
See Graphic: wc_gr001404
To dismantle the front handle, the strut (1) with 3 screws and the foot
(2) with 2 screws must be unscrewed.
8.2 Replacing the vibration absorbers
See Graphic: wc_gr001405
The system consists of 4 vibration absorbers, 3 of which are on the
clutch side.
8.2.1 To dismantle them, the front handle, filter system and tank must be
removed.
8.2.2 The fourth vibration absorber is on the flywheel side. To dismantle it,
the starter device must be removed.
8.2.3 The vibration absorbers are slotted into the housing. Mount the
sleeves (3+4) with the collars inwards.
8.2.4 Lightly grease vibration absorbers.
1
2
wc_gr001404
b
3
4
a
wc_gr001405
