BTS Repair Clutch
wc_tx000298gb.fm 9

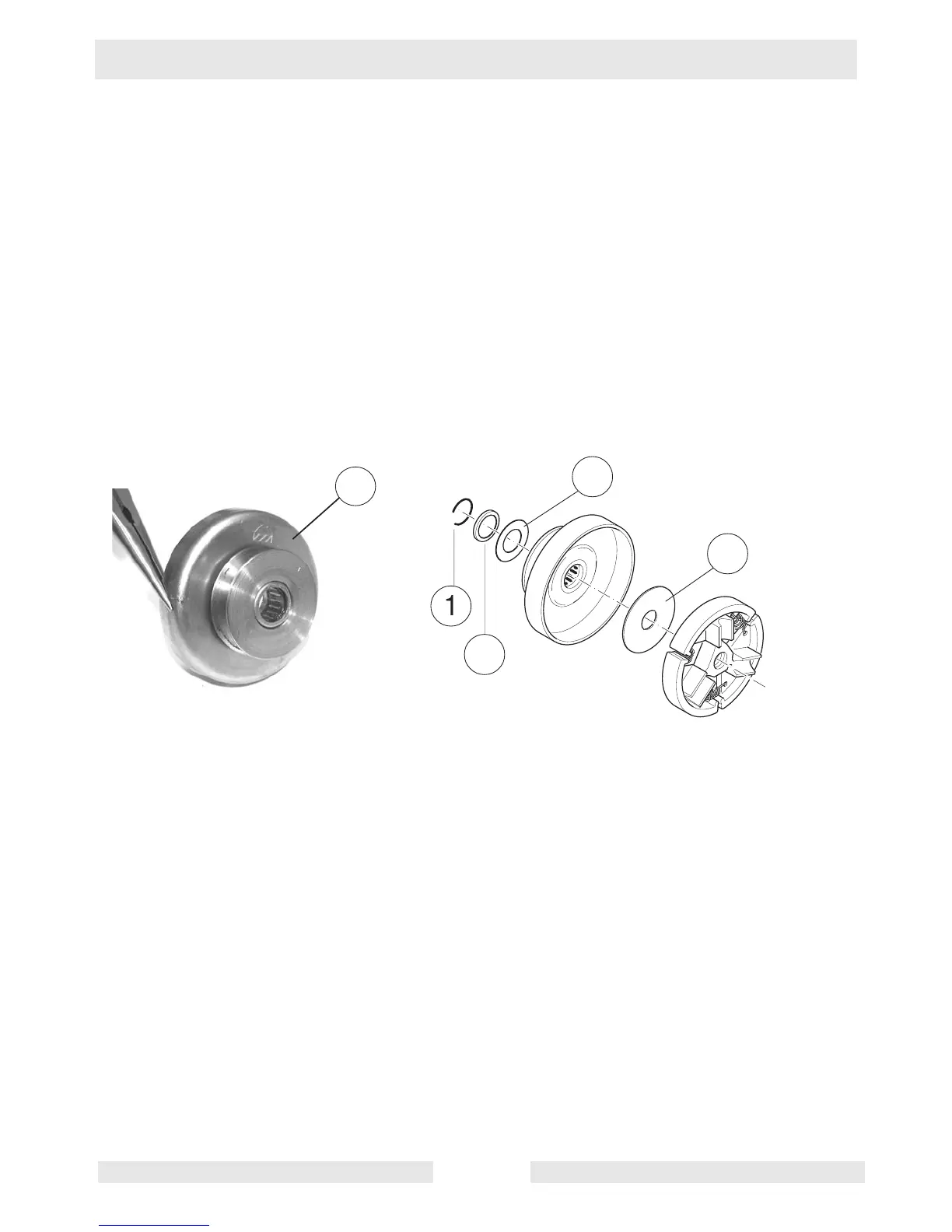

3.4 Mounting the clutch/drum
See Graphic: wc_gr001387
3.4.1 Before installing the clutch drum, the needle bearing that is pressed in
must be greased. (Alvania #2)
3.4.2 When mounting the drum and the clutch, be careful to mount the
washers in the right order.
• (1) Ring (sits in the groove of the crankshaft)
• (2) End collar (with recess towards ring)
• (3) Guide washer
• (4) Clutch guide washer, before assembly.
Press into the support on the back of the clutch hub.
