Cutting Attachment BTS Repair
wc_tx000307gb.fm 32
12.6 Replacing the guard stop

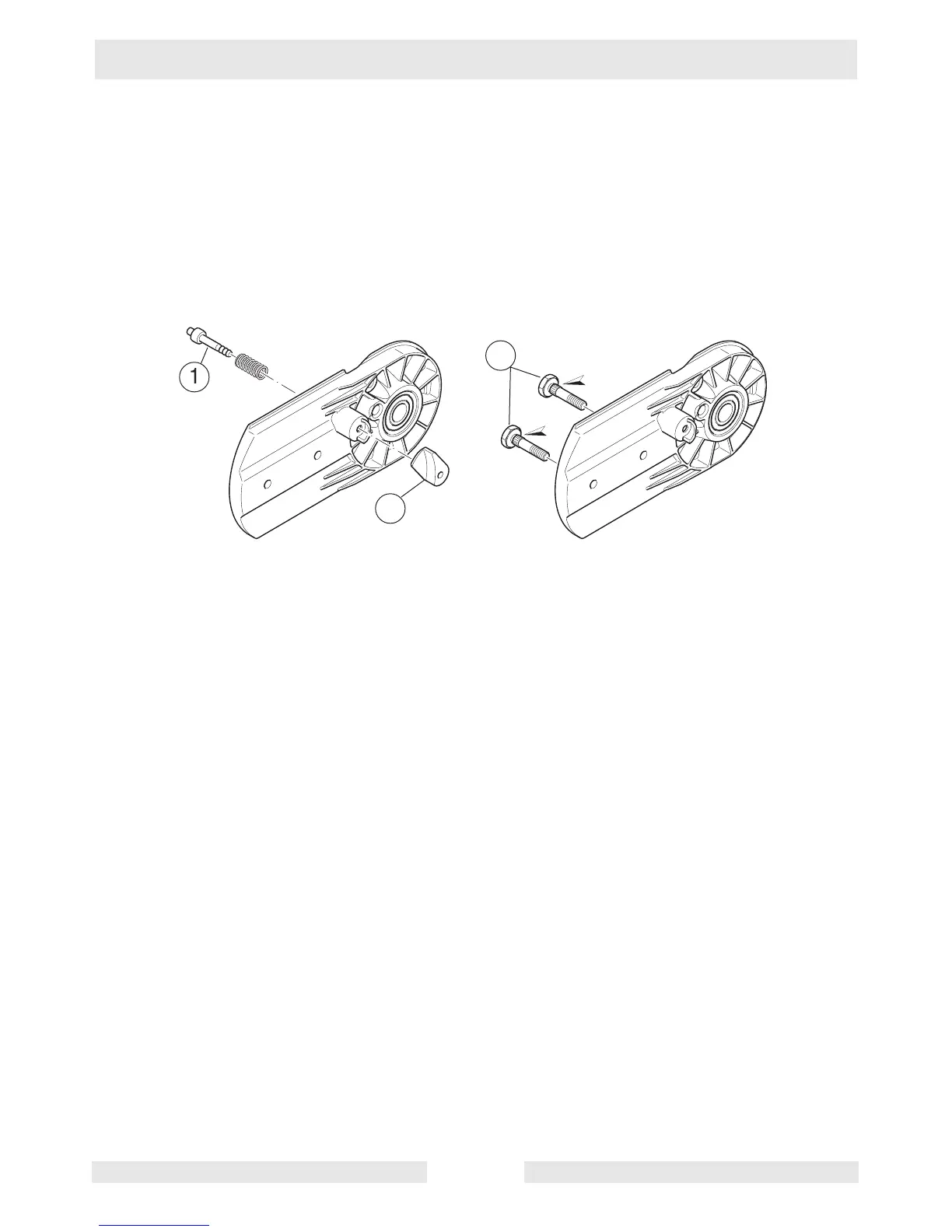

See Graphic: wc_gr001414
Knock the shaft (1) with a pin out of the handle (2).
To assemble, push the new handle onto the shaft until the shaft is flush
with the outside edge of the handle.
12.7 Replacing the fixing screw
See Graphic: wc_gr001414
Push the screws (3) out of the housing.
Before inserting, wet the stop area (arrow) on the screws with “Loctite
609”.
