Operation

3Operation

This chapter describes the controls, and contains information on the function and handling

of the indicator lights and controls.

The pages stated in the table refer to the description of the controls.

Numeric or alphanumeric combinations (for example 40/18 or 40/A) used for identifying

control elements, mean:

figure no. 40/control element no. 18, or position A in figure no. 40

Figures carry no numbers if they are placed to the left of the text.

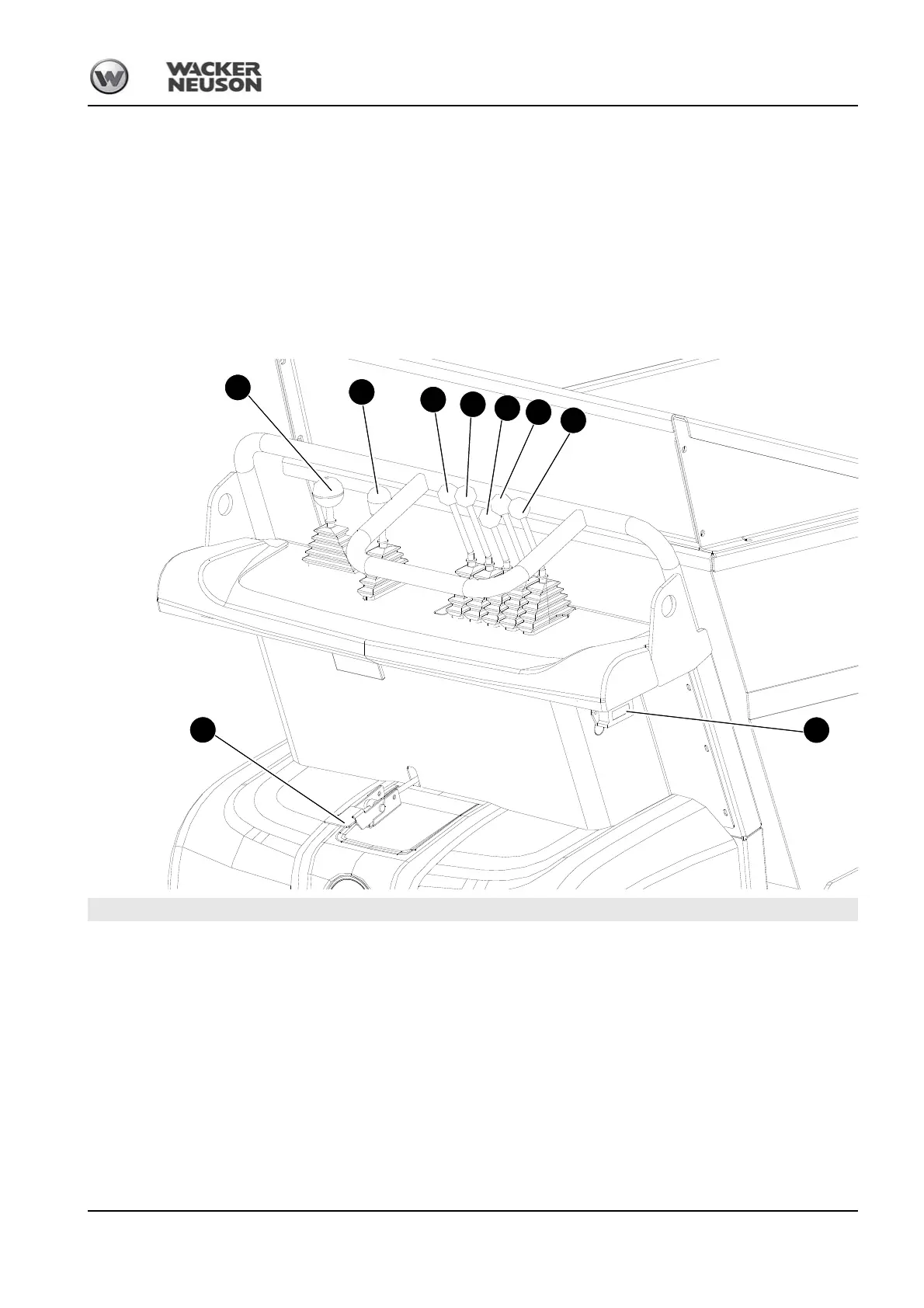

3.1 Control stand overview (model DT08-P skip and high-tip skip)

Pos.

Description For more information see page

1 Loader unit operation (option)/raise skip (option)......................................................................................................................3-18

2 Skip operation ......................................................................................................................................................................3-17

3 Normal or high speed lever ....................................................................................................................................................3-13

4 Drive lever (left)....................................................................................................................................................................3-13

5 Drive lever (right)..................................................................................................................................................................3-13

6 Throttle

7 Auxiliary hydraulics (option).................................................................................................................................................................... 3-28

8 Hour meter

9Lock
