BA DT08 SL EN – Edition 1.0 * dt08b530.fm 5-17
Maintenance
5.6 Tracks
Careful when working with tracks –
Danger of accidents!
☞ Use suitable means to support and secure the machine
☞ In addition, ensure that the machine cannot overturn
Checking track tension
Check track tension as follows:
☞ Park the dumper on firm and level ground
☞ Raise the dumper with suitable means
☞ Tracks must be raised off the ground
☞ Stop the engine
☞ Use additional supports for the dumper and ensure that it cannot overturn
☞ Measure the clearance at the middle track roller A
➥ The rubber track should not sag more than 15 mm when tight
If possible, the distance from the rollers should be the same for both tracks.
Increasing track tension
Proceed as follows:
☞ Park the dumper on firm and level ground
☞ Raise the dumper with suitable means
☞ Tracks should be raised off the ground
☞ Stop the engine
☞ Use additional supports for the dumper and ensure that it cannot overturn
☞ Screw in set screw B with a suitable tool
➥ Ram C is extended
➥ The track is tightened
☞ Check track tension
➥ Repeat the procedure if the tracks are not tight enough
Check track tension once a day since excessive or insufficient track tension can
damage the tracks and the components of the undercarriage.

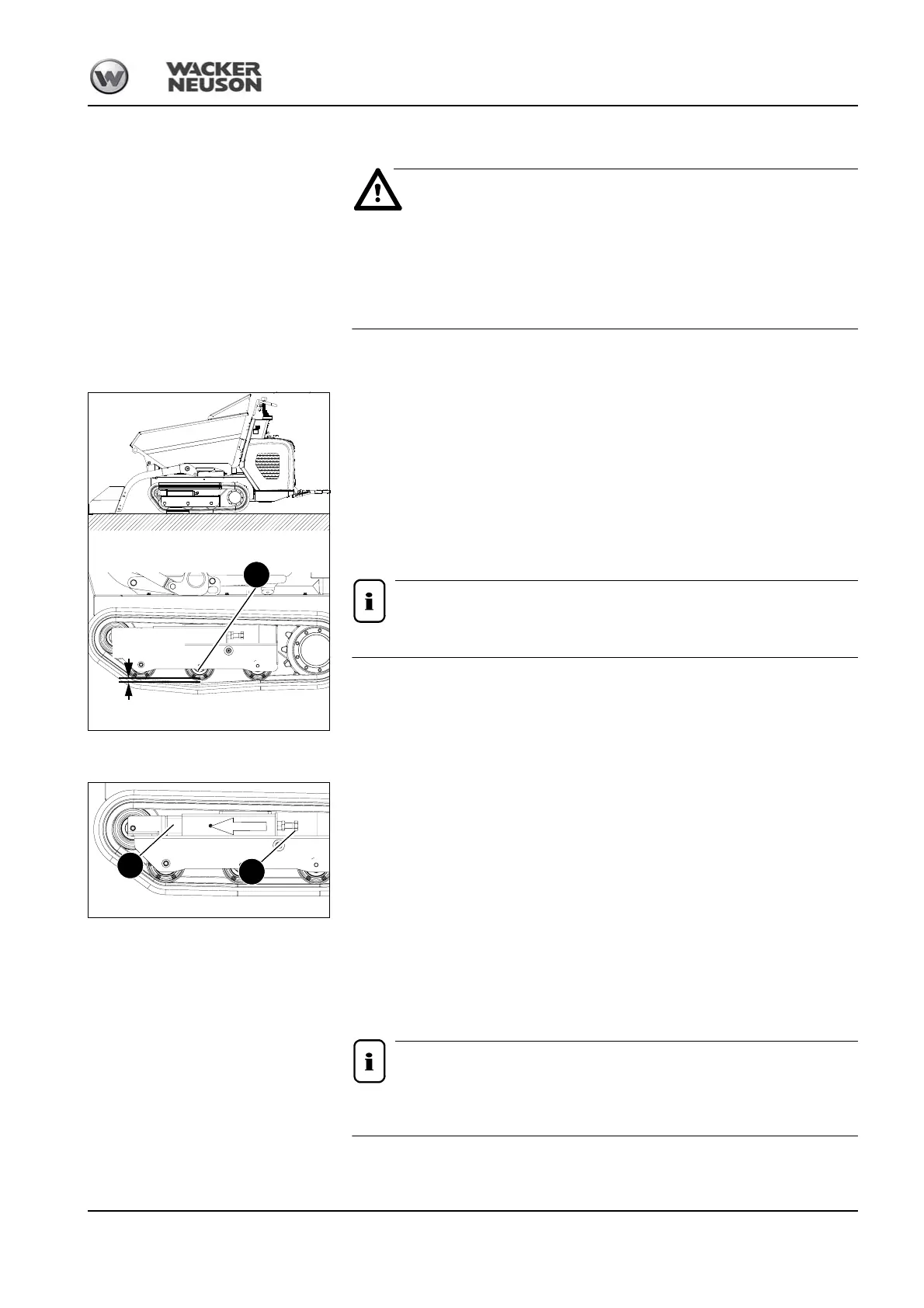

Fig. 83: Checking track tension
15 mm
A
Fig. 84: Increasing track tension
B
C
