Skip operation
Danger!
Do not operate the skip when driving on slopes, otherwise –
Danger of accidents!
☞ Do not actuate the skip when driving across slopes
☞ Do not actuate the skip when driving up or down slopes
Notice!
The loader unit also moves as the skip is dumped in and out.
High-tip skip (option)
Danger!
Do not operate the skip when driving on slopes, otherwise –
Danger of accidents!
☞ Do not actuate the skip when driving across slopes
☞ Do not actuate the skip when driving up or down slopes
Notice!
The loader unit also moves as the skip is dumped in and out.

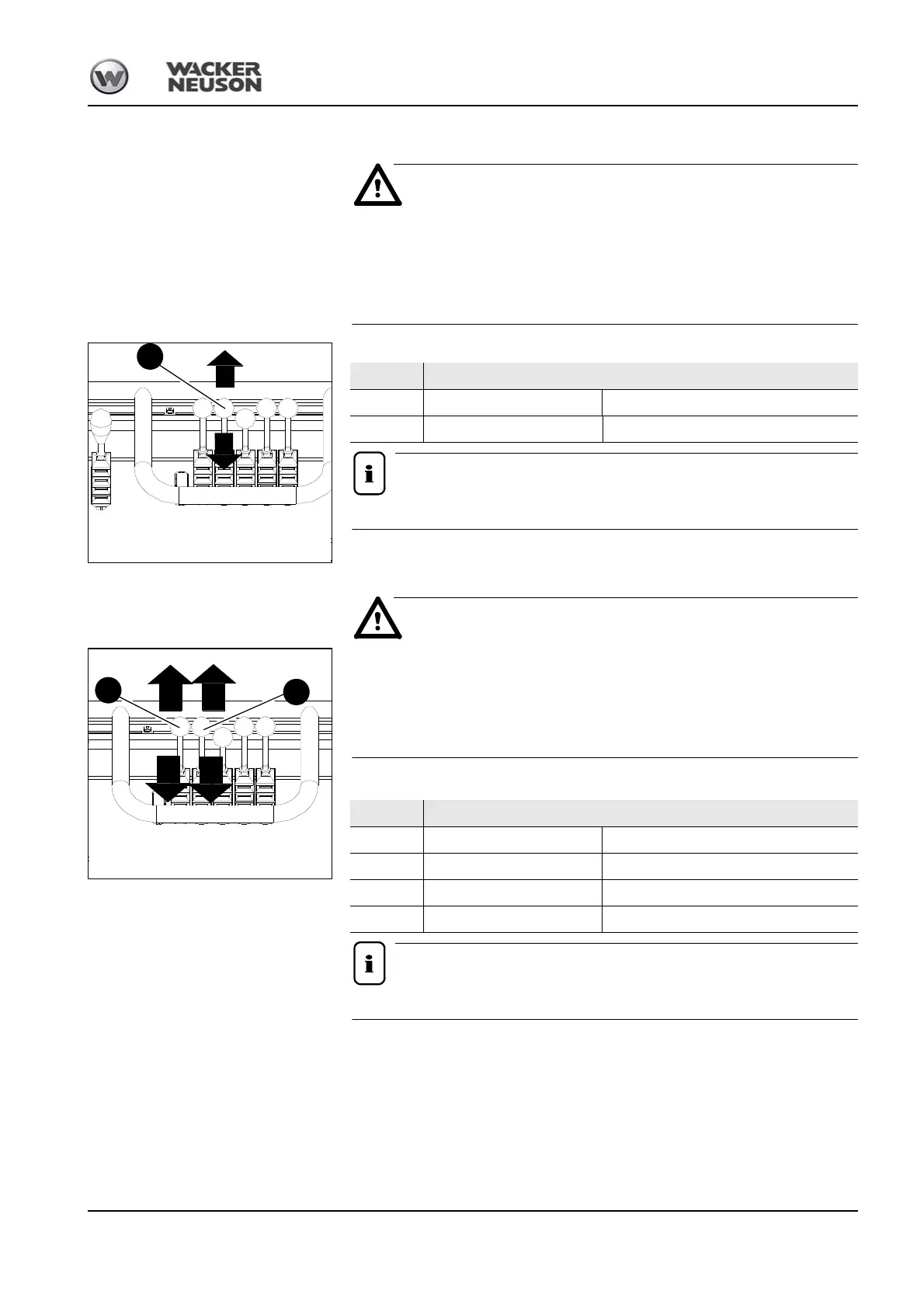

Fig. 48: Skip operation
A
B
2
Position Function
•A 2 Push forwards Skip is dumped out
•B 2 Pull backwards Skip is dumped in
Fig. 49: Operating the high-tip skip
A
B
E
F
1
2
Position Function
•A 1 Push forwards Skip is lowered
•B 1 Pull backwards Skip is raised
•E 2 Push forwards Skip is dumped out
•F 2 Pull backwards Skip is dumped in
