Maintenance
Maintenance strut for high-tip skip
Danger!
Careful when carrying out maintenance work on or under the skip, and in
general when carrying out maintenance work with the dumper body dumped
out –
Danger of accidents!
☞ Use the maintenance strut
Mount the maintenance strut as follows:
☞ Raise the skip
☞ Dump out the skip
☞ Raise safety rod A
➥ The skip is blocked in the raised position
☞ Remove the safety pin and the stud from opening B and insert them in opening C
➥ The skip is blocked in the raised position

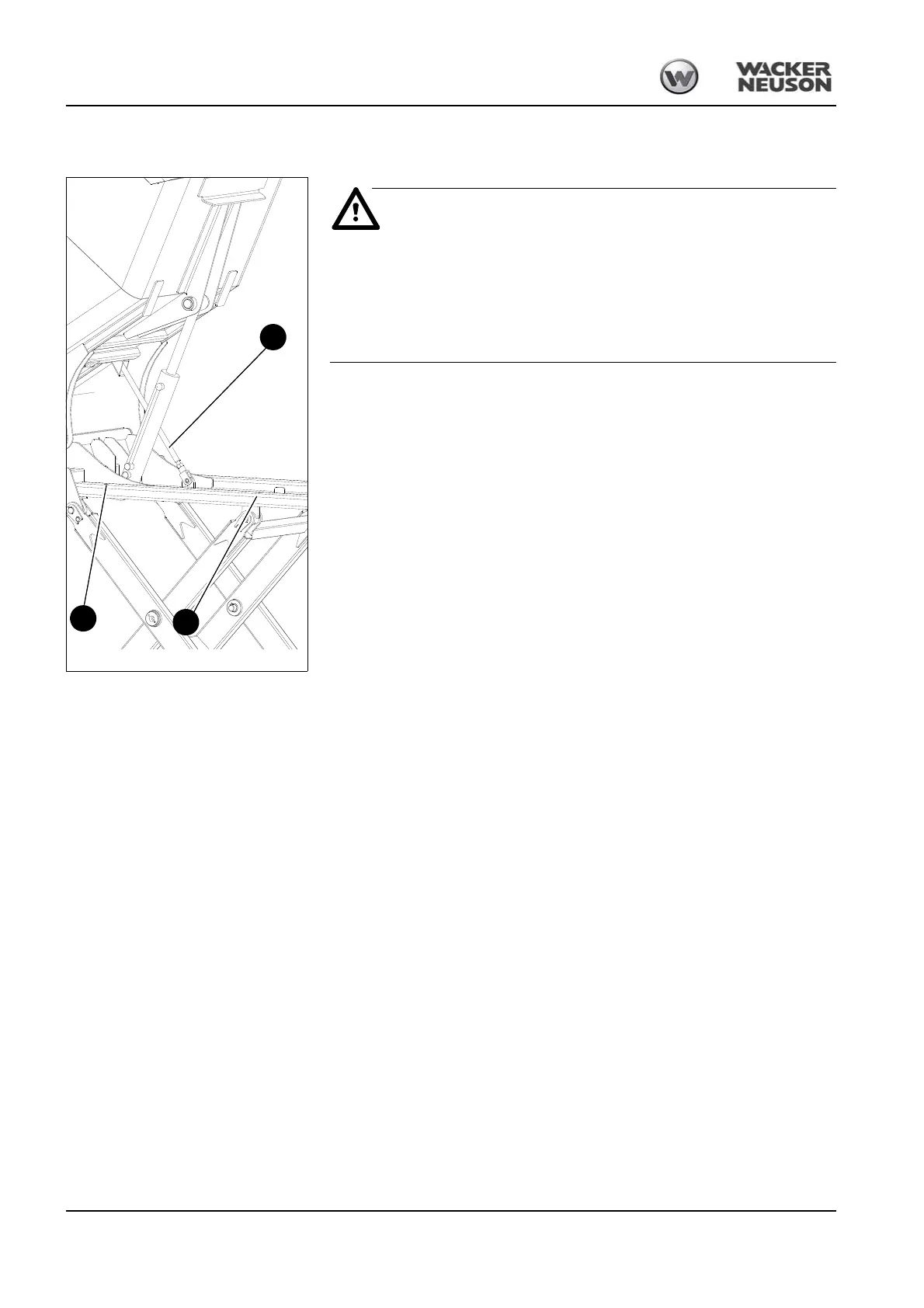

Fig. 67: Maintenance strut
B
C
A
