Operation
Operation monitoring
BA RC50_RC70 en 00
107

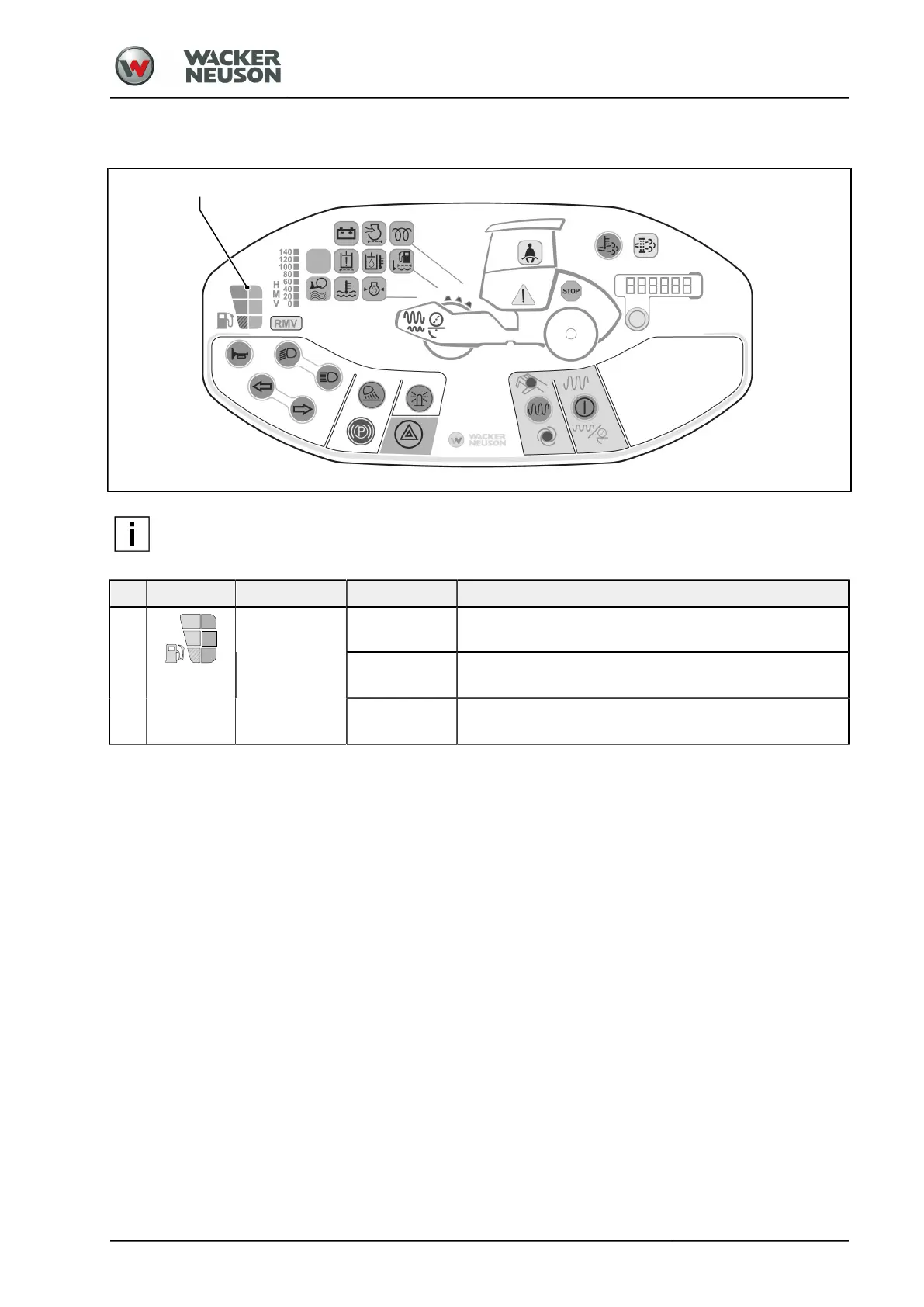

3.23.01 Control panel – fill level control indicator
NOTE
The filling levels in the service fluid tanks are indicated by luminous spots. One or more luminous
spots light up according to the filling level.
No. Symbol Indicator Status Meaning/measure
Lights up
green
Fuel available
Flashes green Fuel fill level between 2/3 and 1/3:
Top up the fuel.
[1] Fuel fill level
Flashes yel-
low
Fuel fill level below 1/10:
Top up the fuel.
