Operation
Safety strut
54
BA RC50_RC70 en 00
3.01 Safety strut
WARNING
Unintentional movement of the machine!
Severe injury or death due to unexpected machine movement during
setting work.
■
Do not connect or disconnect the safety strut unless the engine is
stopped and the ignition is set to off.
■
Park the machine on safe ground, i.e., flat and horizontal ground
with sufficient bearing capacity.
■
Secure machine against rolling away.
The safety strut is used to prevent uncontrolled steering system
movements. This helps to prevent, e.g., the machine's front end or rear
ends from swinging out.
Applying safety strut always before:
■
crane loading the machine.
■
transporting the machine.
■
maintenance and repair work.
NOTE
Before inserting the safety strut, safely stop the machine
■
Remove any steering angle (set the steering system to
straight-line motion) and
■
Remove any track offset.

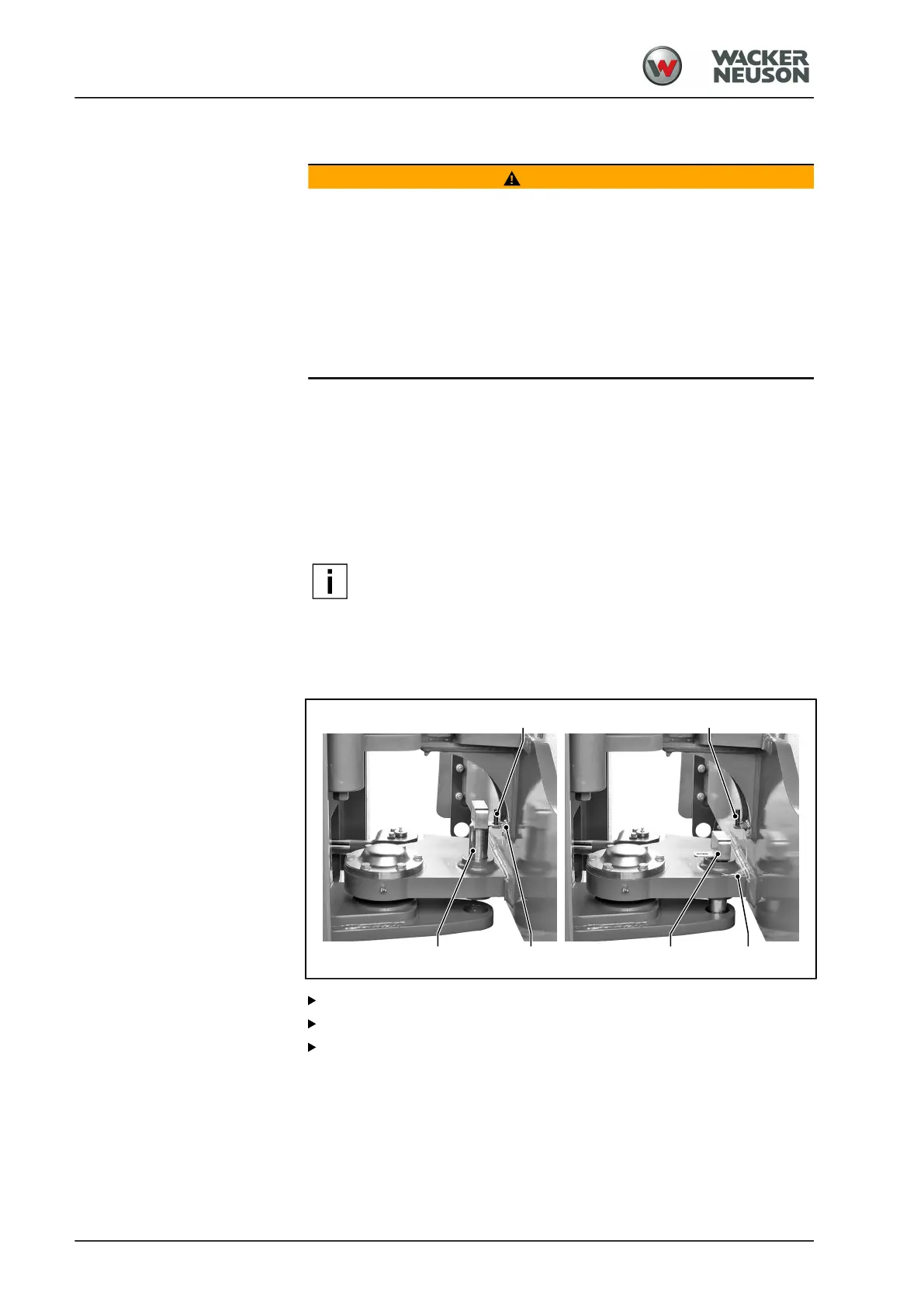

Applying the steering block
Remove the pin retainer [1].
Lift the locking pin [3] off the mounting bracket [2] on the console.
Rotate the locking pin [3] by 180° and lower it.
a
Steering block is applied.
