Auxiliary equipment
Padfoot shells
212
BA RC50_RC70 en 00

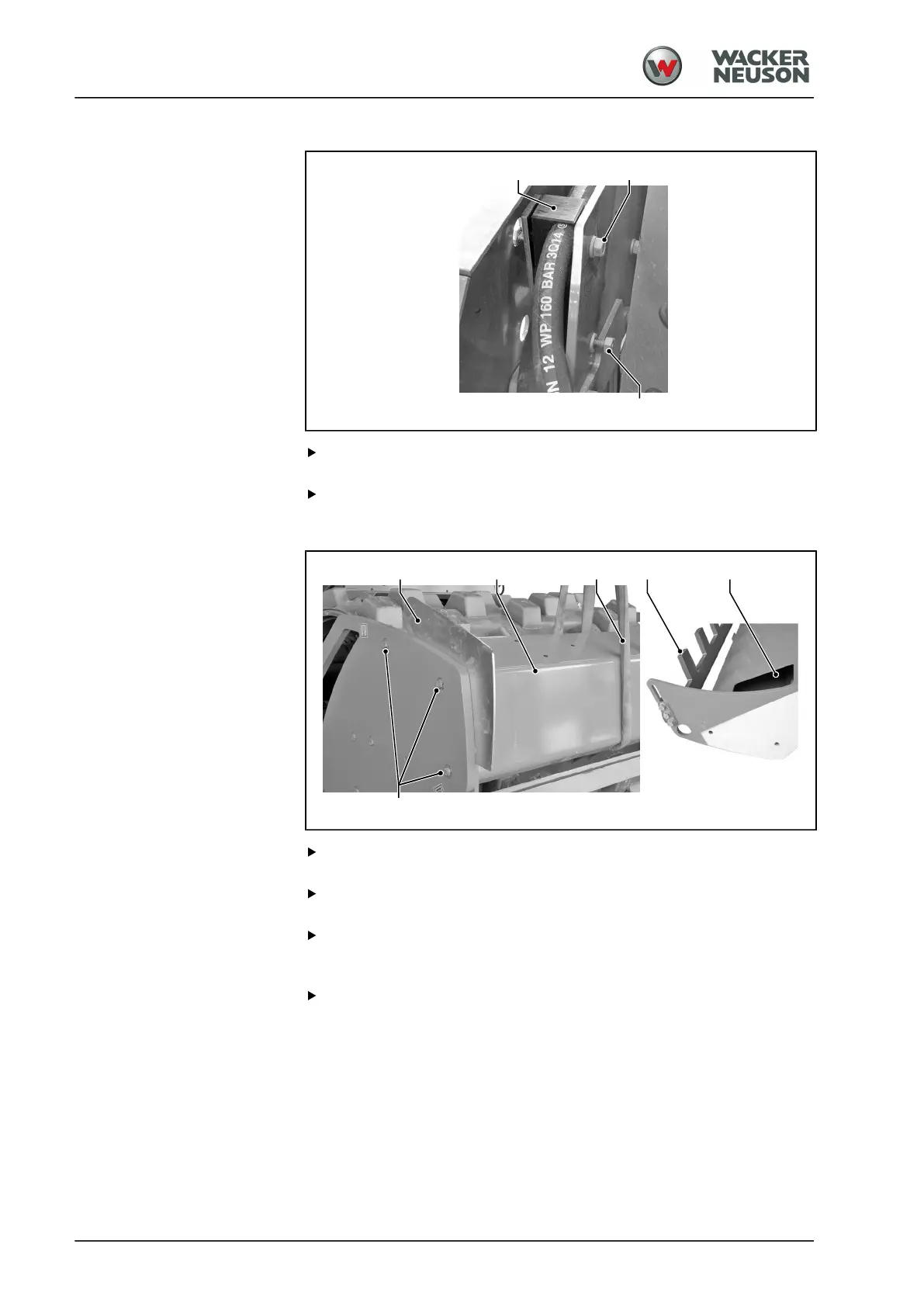

Loosening the fastening screws on the hose clamp
Loosen the hexagon nut [1] on the hose clamp [2] and turn it until it is
flush with the end of the screw thread.
Slide the screw back until the hexagon nut [3] is flush with the plate.
Removing the front crossbeam
Attach the front crossbeam [1] to the crane with the round sling [2]
and tension it slightly. Note the position of the centre of gravity.
For versions with assembly opening on the rear of the crossbeam:
Loosen the screws [5] and remove them together with the cover [6].
For versions with spacer plates [4]: Loosen
three screwed connections [3] on each side. Remove the
spacer plates [4] first. Then remove the screwed connections [3].
Remove the front crossbeam [1]. Set it down outside the machine's
working area so that the scraper [7] can be removed.
