Wacker Neuson RC70

Auxiliary equipment
Padfoot shells
BA RC50_RC70 en 00
215
2
1 4 3

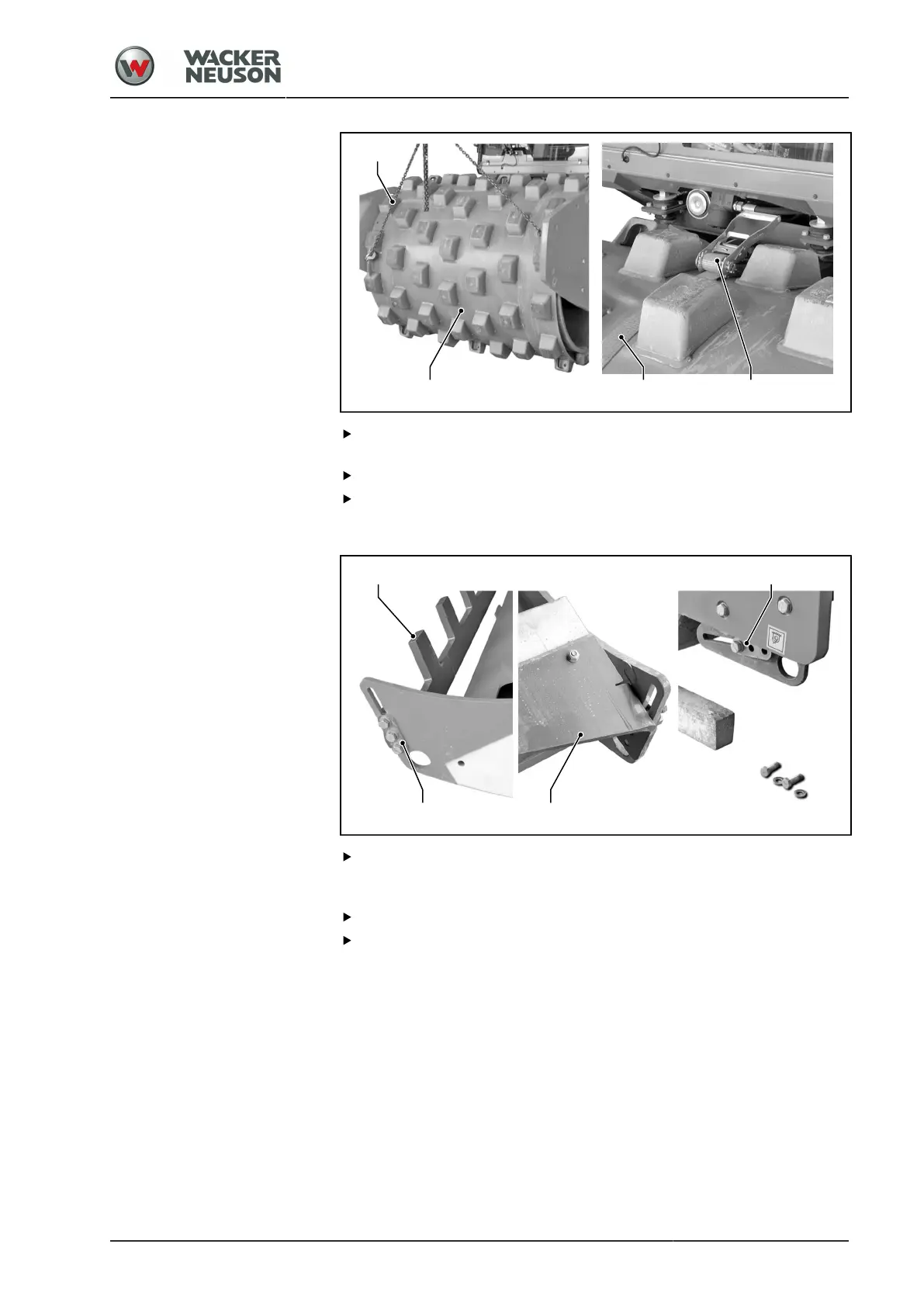

Attach the shell half [1] to the crane with a chain [2] and tension it
slightly.
Open the buckle [3] and remove the tension strap [4].
Remove the shell half [1] from the drum.
Fitting the smooth drum scrapers – method 1
4
31
2
Loosen the clamp connection [1] and replace the padfoot drum
scrapers [2] with the smooth drum scrapers [3] (observe lateral
spacer plates).
Tighten the clamp connection [1] on both sides.
Fit the rear smooth drum scraper [4].
