Operation
Operating doors and windows
70
BA RC50_RC70 en 00
Opening the window fully
Pull the handle [1] up to release cam I or II from the lock [2].
Push the window all the way outwards.
a
The window is open but not locked in the open position.

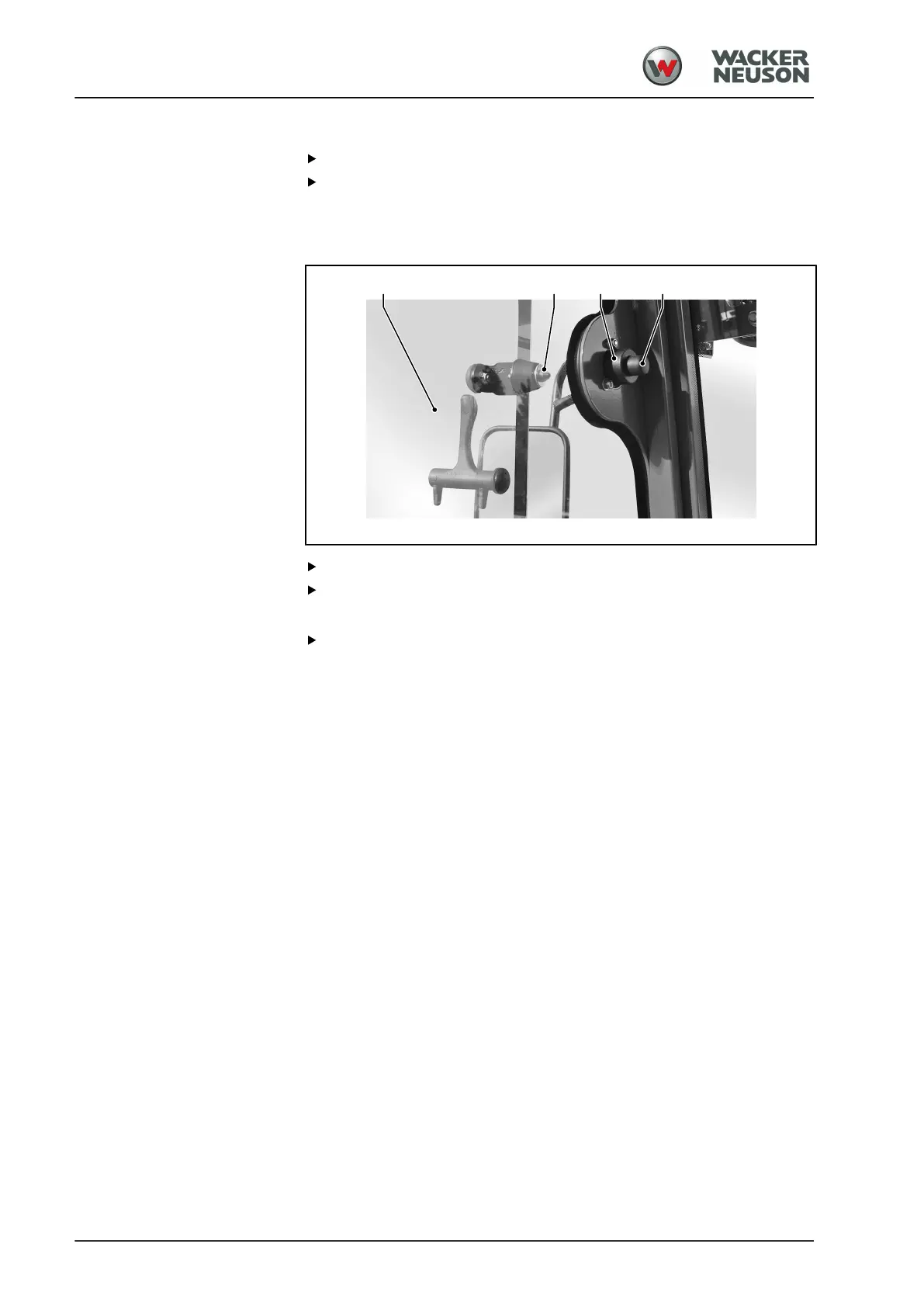

Locking and releasing the window
Open the window [1] fully and tilt it forwards by 180°.
Let the cam [2] engage in the bushing [3].
a
The window is fully open and locked.
Press the push button [4].
a
The lock is released.
a
The window can be tilted back and closed.
