Maintenance
Transmission
BA RD18 en 01
147
Before carrying out any work on the scrapers:
Safely park the machine and secure it against rolling away.
Switch off the diesel engine and remove the ignition key.

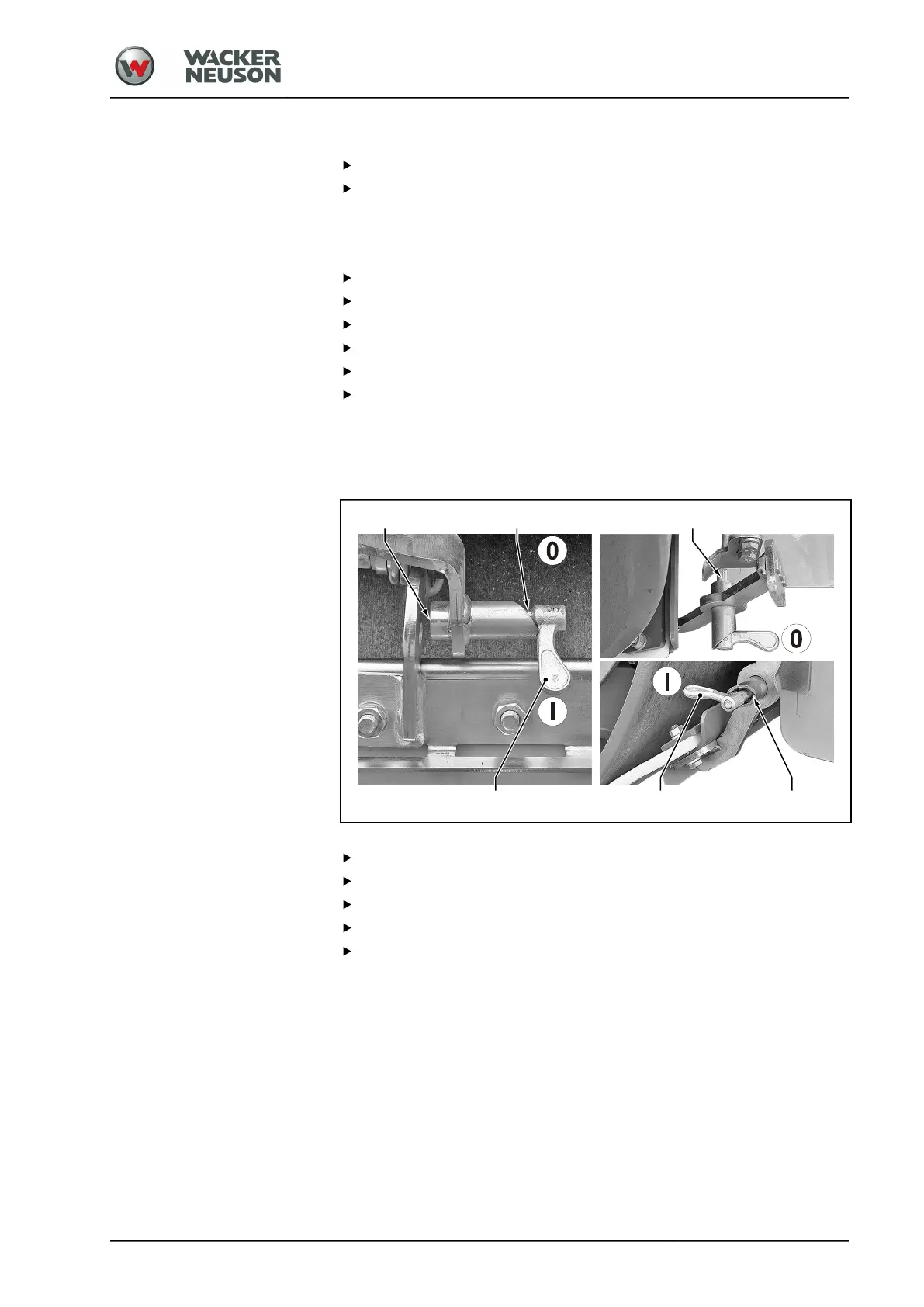

Adjusting/changing the scraper
Tyre clearance – 10 mm
Turn the locking lever [3] to position 0.
Move the scraper [1] away.
Loosen clamp connection [2] (2 ×).
Replace the scraper [1] with a new one if necessary.
Push the scraper [1] towards the tyre until the clearance is reached.
Tighten the clamp connection [2].
a
The scraper is adjusted.
4.06.05 Lubricate the scraper stop lever
Switch off diesel engine and remove ignition key.
Clean off dirt adhering to the catch.
Turn stop lever [1] to I position.
Lubricate the guide bolt of the locking lever with oil at positions [2].
Move the locking lever to and fro several times between positions 0
and I to distribute the lubricant in the guide.
