Tables
Fuses
BA RD18 en 01
177

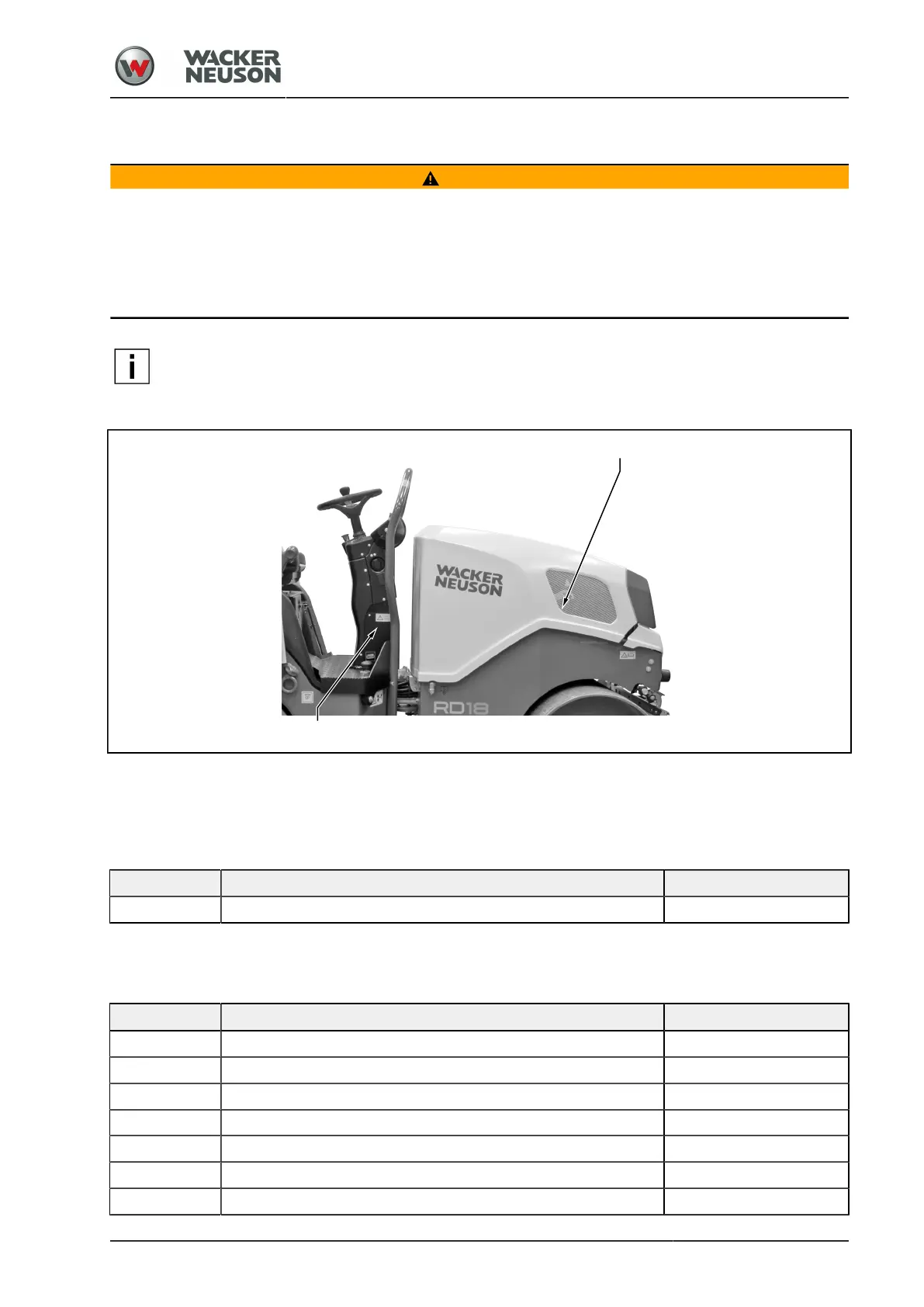

5.03 Fuses
WARNING
Fire in the machine electrical system!
Serious injuries or death or material damage as a result of fire caused by using fuses not meeting
specifications.
■
Only use fuses specified by the manufacturer (not fuses with a higher amperage).
■
Do not bridge fuses.
NOTE
The fuse assignment indicates a fully equipped machine. Depending on the machine
configuration (special attachments), slots are correspondingly free or occupied by fuses.
Please follow the fuse assignment shown on the adhesive label in the engine compartment.
[1] Main fuse [2] Central electrical system
5.03.01 Engine compartment
[1] Main fuses
Component Fuse assignment Fuse
F01 Main fuse on the battery 80 A
5.03.02 Steering column
[3] Central electrical system/option 1
Component Fuse assignment Fuse
F1 All-wheel lock 5 A
F2 Cold start assistance central relay 1 A
F3 Drum edge lighting 15 A
F4 Left driving light 10 A
F5 Right driving light 10 A
F6 Reversing lights 15 A
F7 Working spotlight 15 A
