Maintenance
Water sprinkling
158
BA RD18 en 01
Switch off diesel engine and remove ignition key.
Remove a sealing cap [2] per sprinkler pipe [1] (observe internal
gasket ring).
Remove the valve insert [4] with the membrane as well as the
sprinkler nozzles [3] with filter from the sprinkler nozzle housing.
Unscrew filter head [5] at the water tank and remove it together with
the compression spring (observe gasket ring on filter head).
Pull the filter insert from the water tank.
Clean water tank thoroughly with pressure washer (if available) or
water jet.
Flush the sprinkler nozzle housings and the hoses.
Insert filter insert in the water tank.
Screw the filter head [5] together with the compression spring into the
water tank.
Insert valve insert [4] with the membrane as well as the sprinkler
nozzles [3] with filter from the sprinkler nozzle housing.
Screw sealing caps [2] per sprinkler pipe [1] (observe internal gasket
ring).
4.08.06 Emptying and cleaning the additive-sprinkling system
NOTE
Observe the disposal regulations as specified by the additive
manufacturer.
Switch off the diesel engine and remove the ignition key.
Prepare a suitable container to collect the contents of the tank.

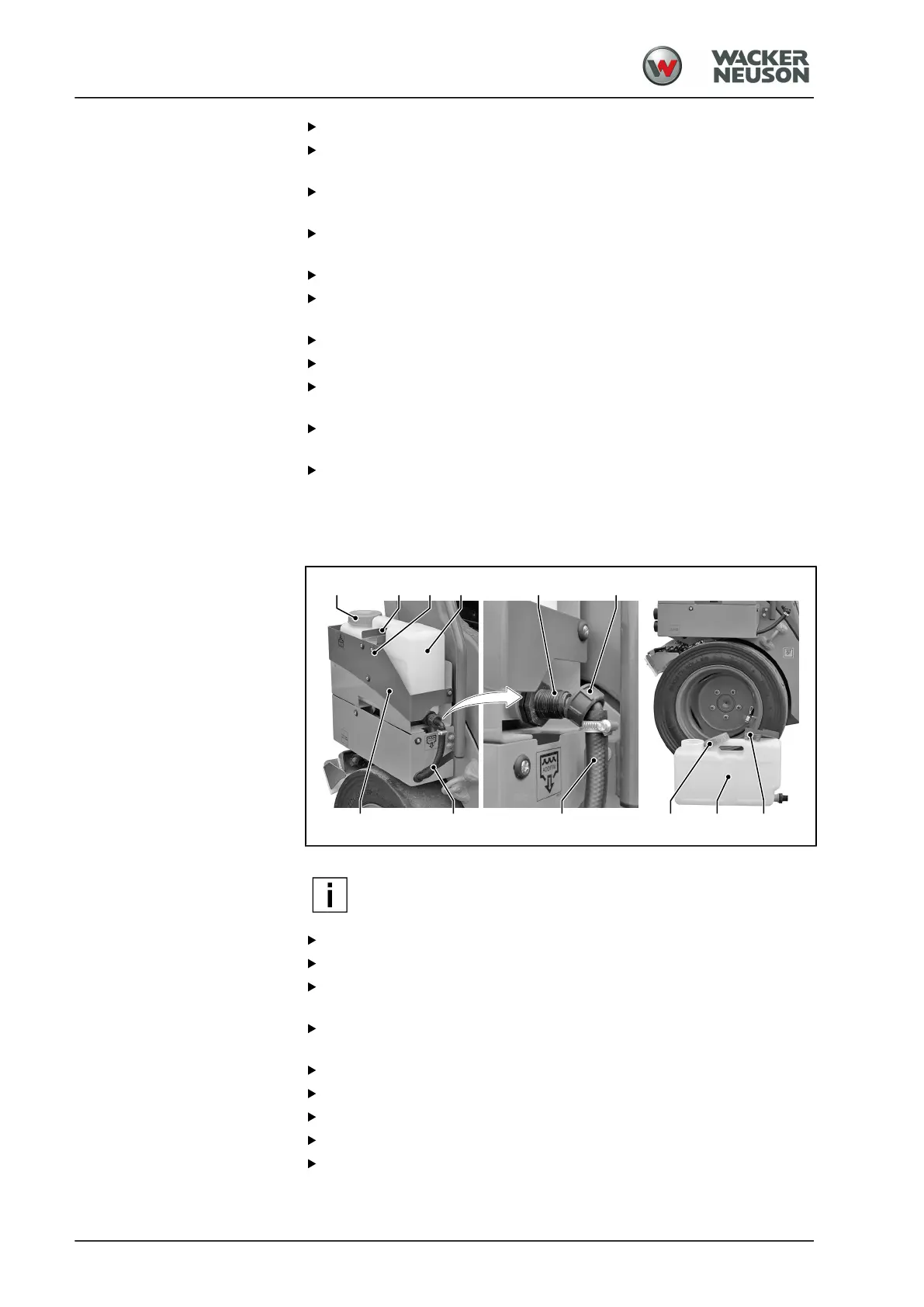

Undo the bracket [2] on the additive tank [4]: Undo two screws [3].
Store the screws, nuts and washers.
Open the tank cover for the additive tank [1] to allow the pressure to
equalise.
Undo the union nut [6].
Remove the hose [8] from the connection [5].
Catch and dispose of any release agent emulsion that flows out.
Lift the additive tank [4] from the cladding [7] and drain it.
After the tank has been drained, actuate the additive-sprinkling
system until release agent emulsion no longer escapes from the
sprinkler nozzles.
