Maintenance
Transmission
150
BA RD18 en 01
■
Apply a jack with sufficient lifting capacity to the marked lifting
points on the chassis, or
■
Lift the machine only by the marked suspension points using
suitable hoisting gear (crane with round sling/chain).
Put/jack machine on the machine frame on liners capable of bearing
(tyres may not be in contact with the ground).
NOTE
Only persons familiar with changing tyres and aware of
dangers are allowed to change the tyres.
When jacking up the machine, use only stable liners capable of
bearing (e.g. support timber of sufficient size).
Perform the work with two fitters!

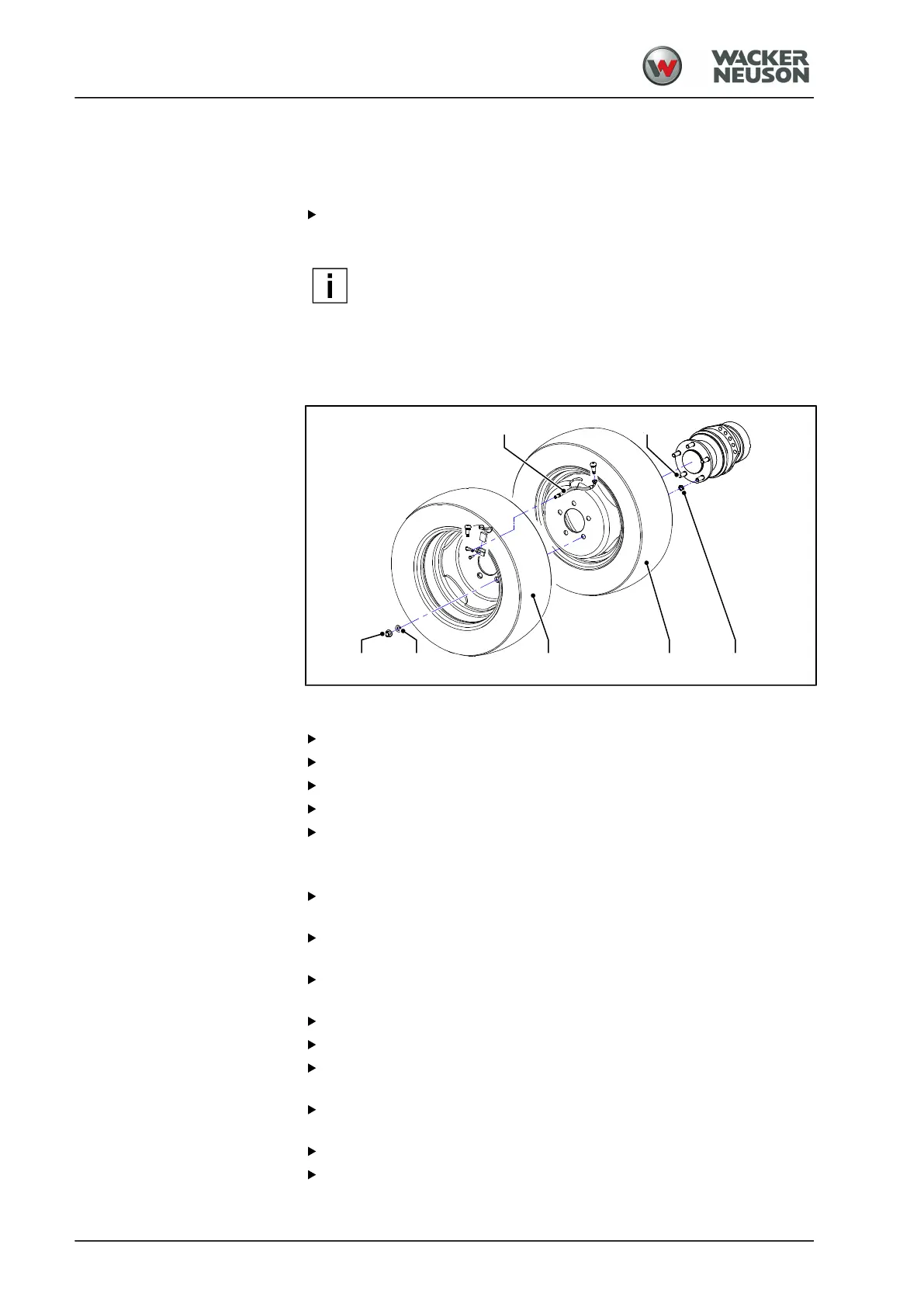

Removal
Push the valve extension hose [1] out of the bracket.
Undo and unscrew the wheel nuts [2].
Remove the retaining rings [3].
Remove the wheels [4] and [5] from the wheel hub.
Remove the centring rings [6] from the wheel studs [7].
Installation
Clean and remove any rust from the contact surfaces between the
wheel rims and the wheel hub.
Clean and remove any rust from the wheel nuts [2], retaining rings [3]
and centring rings [6].
Guide the valve extension hose [1] to the outside via the opening on
the wheel rims.
Place the centring rings [6] onto the wheel studs [7].
Place the inner wheel [5] onto the wheel studs [7] on the wheel hub.
Place the outer wheel [4] onto the wheel studs [7] in such a way that
both valves are aligned.
Guide the valve extension hose [1] to the outside via the opening on
the wheel rims.
Place the retaining rings [3] onto the wheel studs [7].
Screw the wheel nuts [2] onto the wheel studs [7] and tighten them to
the specified tightening torque.
