Operating manual Spray wall Basic 8000
5 Description
16 Order number 3305595 | Edition 07/2022
5 DESCRIPTION
5.1 COMPONENTS
The Basic 8000 spray wall is available in the following versions:
Model Note Order no.
Basic 8000 spray wall Control cabinet, left 3301920
Basic 8000 spray wall Control cabinet, right 3306211

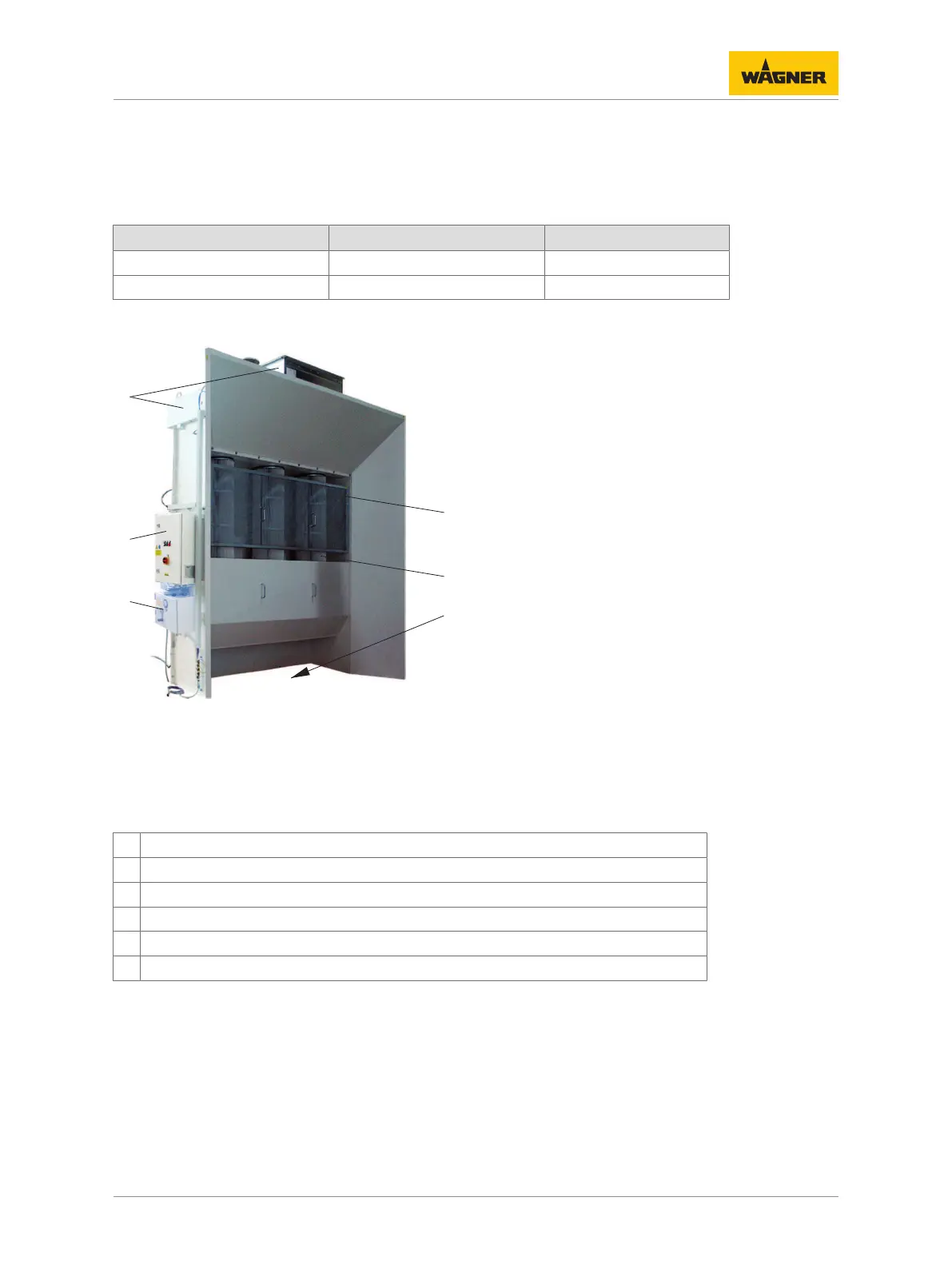

5.1.1 Basic 8000 components
Features:
– Suitable for coating bulky work pieces
– Slanted air baffles for directing the air current
– Small footprint
– Suitable for integration in a work piece conveyor system
1 Extraction unit
2 Electric control cabinet
3 Pneumatic control cabinet
4 Deflector grid
5 Filter cartridges
6 Residual powder accumulation area
The Basic 8000 spray wall meets the applicable regulations for electrostatic powder coating.
The air that is suctioned off is filtered and can be reintegrated into the ambient air.
Operating principle:
The Basic 8000 spray wall is suitable for continuous operation. The air is suctioned off with
the over-spray and guided through the deflector grate 4 to the filters 5. The filter elements
(cartridges) are cleaned automatically, in alternation, as one filter element is quickly cleaned
at a time, while the other elements remain in operation. The settings of the cleaning cycle
depend on the type and quantity of the powder to be separated. The recovered powder
collects on the floor 6 and must be regularly disposed of using an industrial vacuum cleaner.
