Operating manual Spray wall Basic 8000
13 Spare Parts
Order number 3305595 | Edition 07/2022 41
Pos K Stk Order no. Designation
1 3305064 Air diffuser, complete, 1/2" 4-fold
1 1 3068948 Air diffuser, 6704 4x1/2"
2 3 3306439 Magnet coil 230VAC (until 09/2007)*
2 3 3306274 Magnet coil 24VDC (starting 09/2007)*
3 3 9955654 Plug

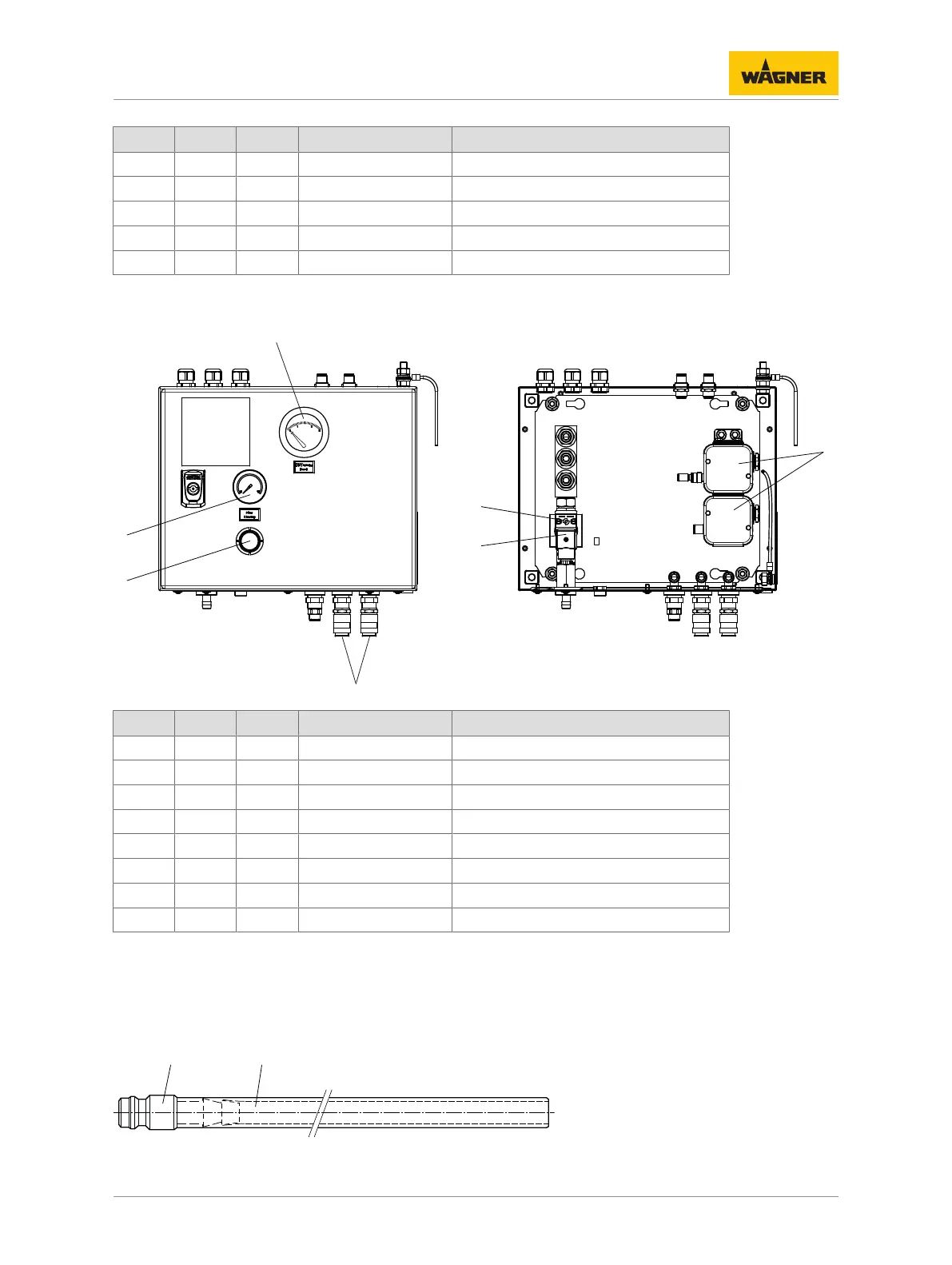

13.7 SPARE PARTS LIST FOR PNEUMATIC CONTROL CABINET (STARTING 07/2021)
7
6
5
P_04816
2
1
3
4
Pos K Stk Order no. Designation
1 1 3060190 Pressure regulator 0–10 bar; 0–145psi
2 1 3051234 Pressure gauge 0–10bar; 0–145psi
3 1 3058798 Differential pressure gauge
4 2 3053234 Coupling socket 5081 3/8" NW7
5 1 9955654 Valve connector
6 1 3145435 Solenoid valve
7 2 3025456 Differential pressure monitor
1 2308621 Assembly set*
* Assembly set for connecting the differential pressure monitor
The assembly set must be ordered separately when replacing the differential pressure
monitor.
13.8 MANUAL SYSTEM CONNECTION SET
1 2
P_00485
