Operating manual Spray wall Basic 8000
13 Spare Parts
40
Order number 3305595 | Edition 07/2022

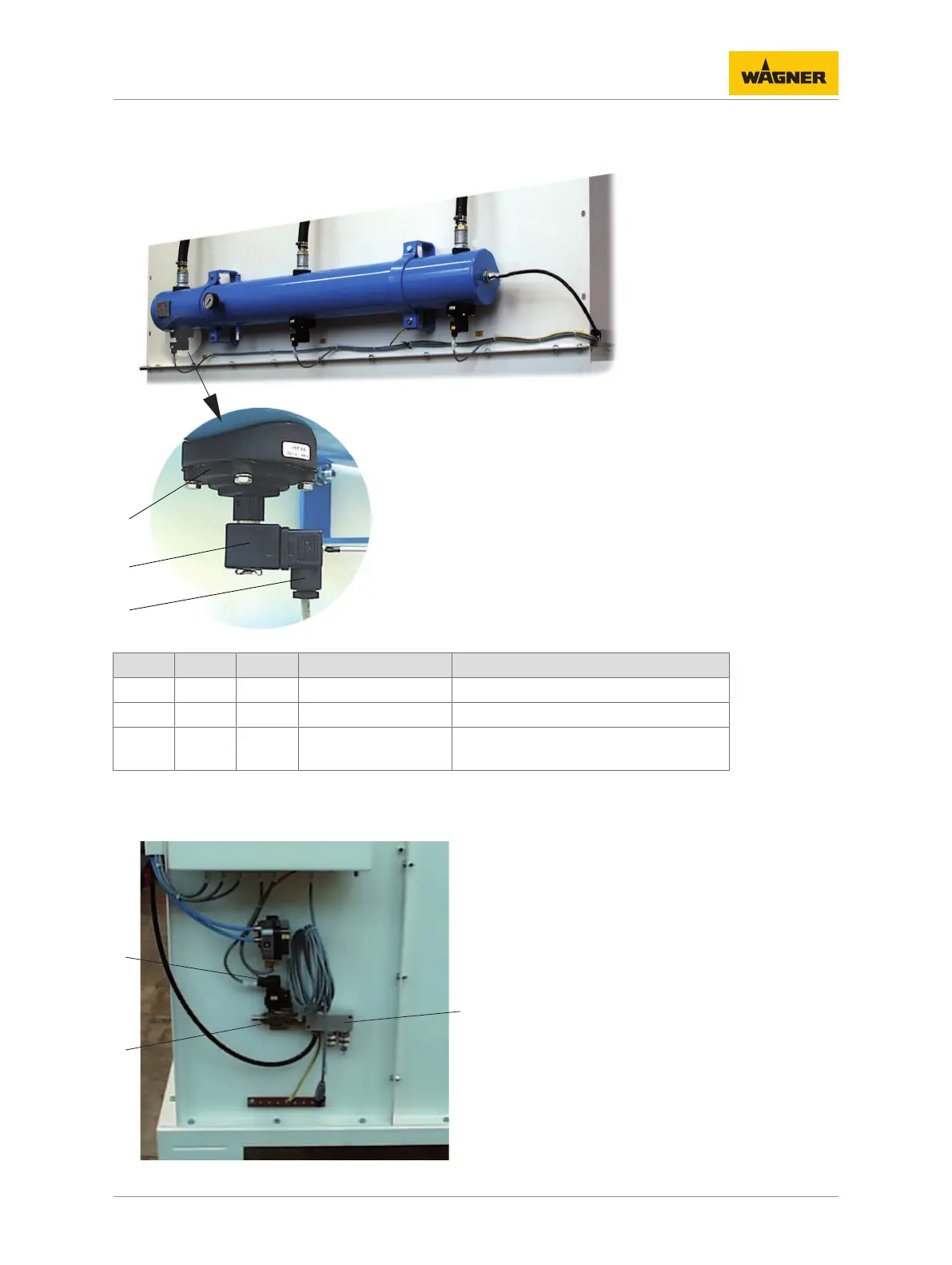

13.5 SPARE PARTS LIST FOR PRESSURE TANK (STARTING 07/2021)
1
2
3
P_05389
Pos
K
Stk
Order no.
Designation
1
♦
3
3306273
Diaphragm
2
2
2424184
Magnet coil 24VDC, non-ATEX
3
3
3304504
Valve connector, type A 18mm;
0.71inch 24VDC
♦
= Wearing parts
13.6 SPARE PARTS LIST FOR AIR DIFFUSER (UNTIL 06/2021)
3
2
1
P_00484
39
41
Table of Contents
Table of Contents
3
About These Instructions
5
Preface
5
Warnings, Notices and Symbols in These Instructions
5
General Characters and Symbols
5
Languages
6
Abbreviations
6
Terminology for the Purpose of this Manual
6
Using in Accordance with the Instructions
8
Device Type
8
Type of Use
8
For Use in Potentially Explosive Areas
8
Processible Working Materials
8
Misuse
8
Identification
9
CE Identification
9
Type Plate
9
Basic Safety Instructions
10
Safety Instructions for the Operator
10
Electrical Devices and Equipment
10
A Safe Work Environment
10
Personnel Qualifications
11
Safety Instructions for the Personnel
11
Personal Safety Equipment
11
Safe Handling of WAGNER Powder Spray Devices
12
Grounding the Device
12
Product Hoses
13
Electrical Connection Cables
13
Cleaning and Flushing
13
Maintenance and Repair
14
Protective and Monitoring Equipment
15
Safety Features
15
Description
16
Components
16
Basic 8000 Components
16
Extent of Delivery
17
Data
17
Technical Data
17
Assembly and Commissioning
18
Training of Assembly/Commissioning Personnel
18
Storage Conditions
18
Installation Conditions
18
Transportation
18
Delivery Condition of the Spray Wall
19
Assembly Sequence
19
First Commissioning
21
Grounding
21
Grounding the Powder Coating System
22
Fire Detection and Fire Extinguishing Measures
23
Safety Checks
23
Testing before First Commissioning
23
Start up
23
Operating and Display Elements
23
Operation
25
Training the Operating Personnel
25
Tasks
25
Switching on the System
25
Switching off the System
25
Performing a Paint Change
26
Cleaning and Maintenance
27
Cleaning
27
Cleaning Personnel
27
Cleaning Instructions
27
Cleaning Procedures
27
Setting the Cleaning Intervals
27
Maintenance
28
Maintenance Personnel
28
Maintenance Instructions
29
Safety Checks
29
Maintenance Procedures
29
Compressed Air Tank Maintenance
30
Inspections in Accordance with DIN en 50177: 2009
31
Abbreviations
31
Overview Table
32
Troubleshooting and Rectification
34
Disassembly and Disposal
35
Disassembly
35
Disposal
35
Accessories
36
Spare Parts
37
How to Order Spare Parts
37
Notes on the Use of Spare Parts
37
Spare Parts List for Basic 8000 Spray Wall
38
Spare Parts List for Pressure Tank (until 06/2021)
39
Spare Parts List for Pressure Tank (Starting 07/2021)
40
Spare Parts List for Air Diffuser (until 06/2021)
40
Spare Parts List for Pneumatic Control Cabinet (Starting 07/2021)
41
Manual System Connection Set
41
Declaration of Conformity
43
CE Declaration of Conformity
43
