WAGNER Basic 8000 User Manual

Operating manual Spray wall Basic 8000
6 Assembly and Commissioning
20 Order number 3305595 | Edition 07/2022
1
2
Y
X
6
4/1
3
4
5
7
8
P_00479

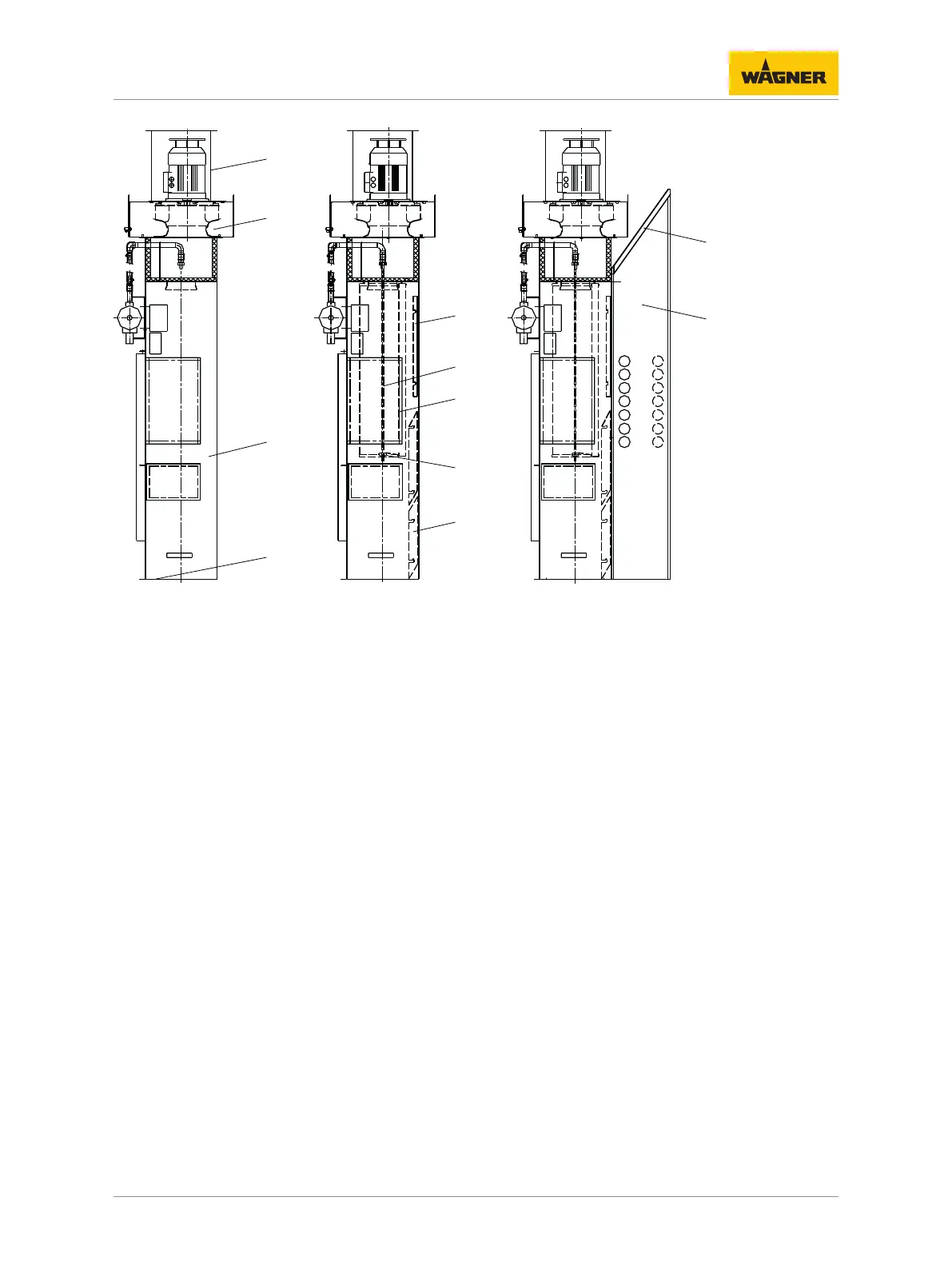

1. Set up base Y of the spray wall using a crane or fork lift.
2. Screw base Y to the floor with at least 2 floor dowels X.
3. Mount silencer 1 on extraction unit 2 and screw both to base Y.
4. Guide the threaded rod 4 into the filter cartridge 3 and position both below the
cartridge opening.
5. Screw threaded rod 4 into the cleaning nozzle and tighten hand-tight.
6. Hold up the filter cartridge 3, screw the sealing washer and washer 4/1 onto the
threaded rod 4 using the star grip 4/1 and tighten firmly.
7. Hook on deflector grate 5 and baffle plate 6.
8. Mount side panels 7.
9. Mount cover plate 8.
10. Align spray wall and screw it to the floor.

WAGNER Basic 8000 Specifications

General

Brand	WAGNER
Model	Basic 8000
Category	Paint Sprayer
Language	English
