EPG-SPRINT / EPG-SPRINT X
P_01359
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
Step Display Description Possible values
1 e.g., 532 Spray current o set value 200-700
2 e.g., 0 Coil current o set value 0-100

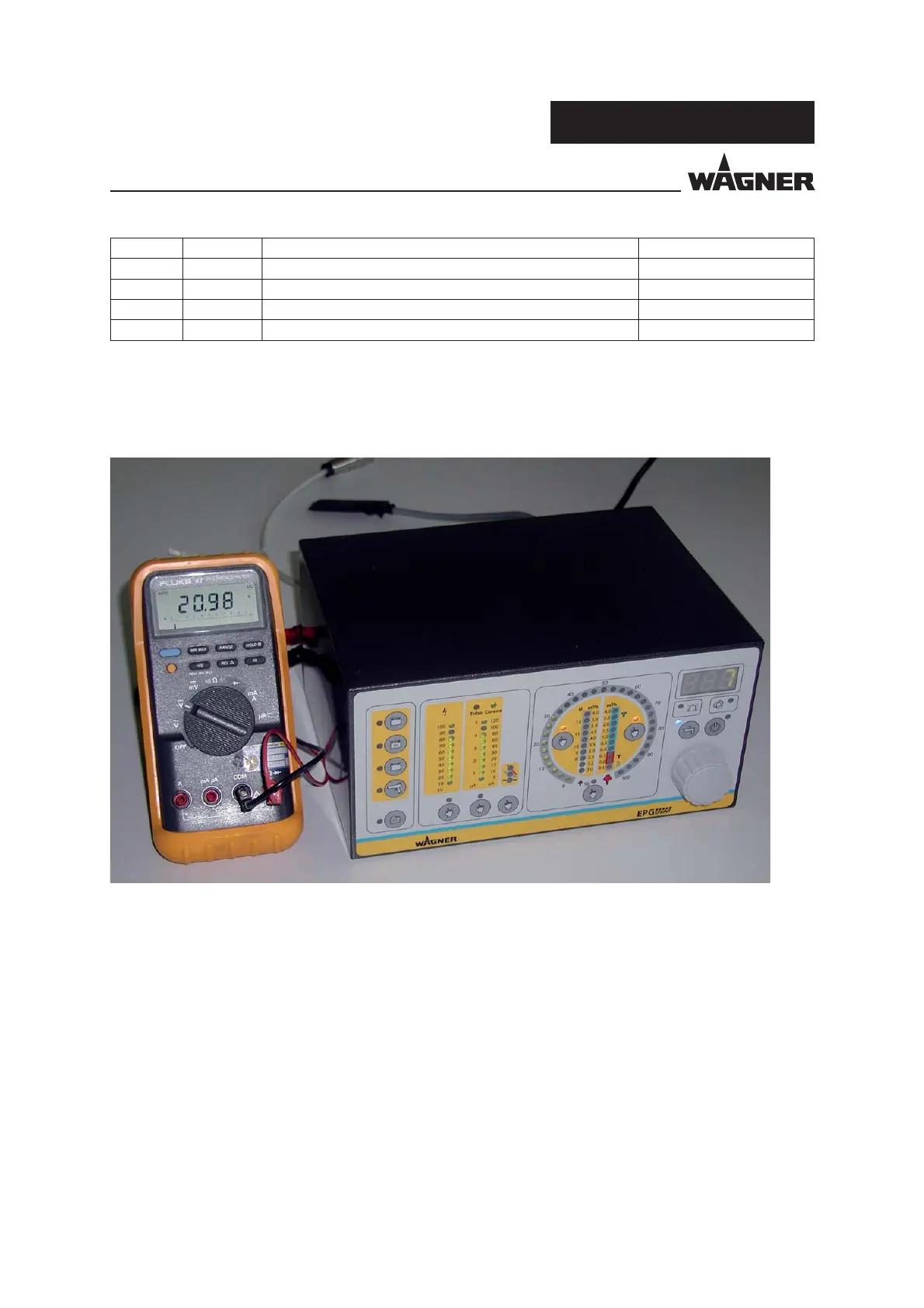

3 e.g., 7 Use rotary controller 24 to calibrate to maximum of 21 V 16.5 - 22.5 V on multimeter
4 New correction is saved to the memory.
13. Exit the con guration by pressing "Standby" button 15.
The high-voltage produced can nally be measured again using a HV200N high-voltage
tester. Please follow the instructions in the high-voltage tester operating manual.
Depending on air humidity, temperature, cleaning state and handling, a maximum value
between 80 kV and 95 kV is displayed. The maximum theoretical value can be measured
again only under lab conditions.
