Procedure for the check:
7. Perform the preparation. Preselect the corresponding channel.
8. Select step 2 by pressing the "High-voltage" button 27.
9. The display value on LED display 19 must be compared with the limits in the previous
table. If the display value falls outside the limits, a calibration must be performed
(step 12).
10. Return to step 0 with the "Current Limitation" button 29. Do not select steps 3 - 7!
11. Press "Standby" button 15 to exit the con guration.
Procedure for the calibration:
12. Perform the preparation. Preselect the corresponding channel.
13. Perform all steps according to the preceding table. The values are not stored in
EEPROM until the last step has been selected.
14. Press "Standby" button 15 to exit the con guration.
Display of o set stage:

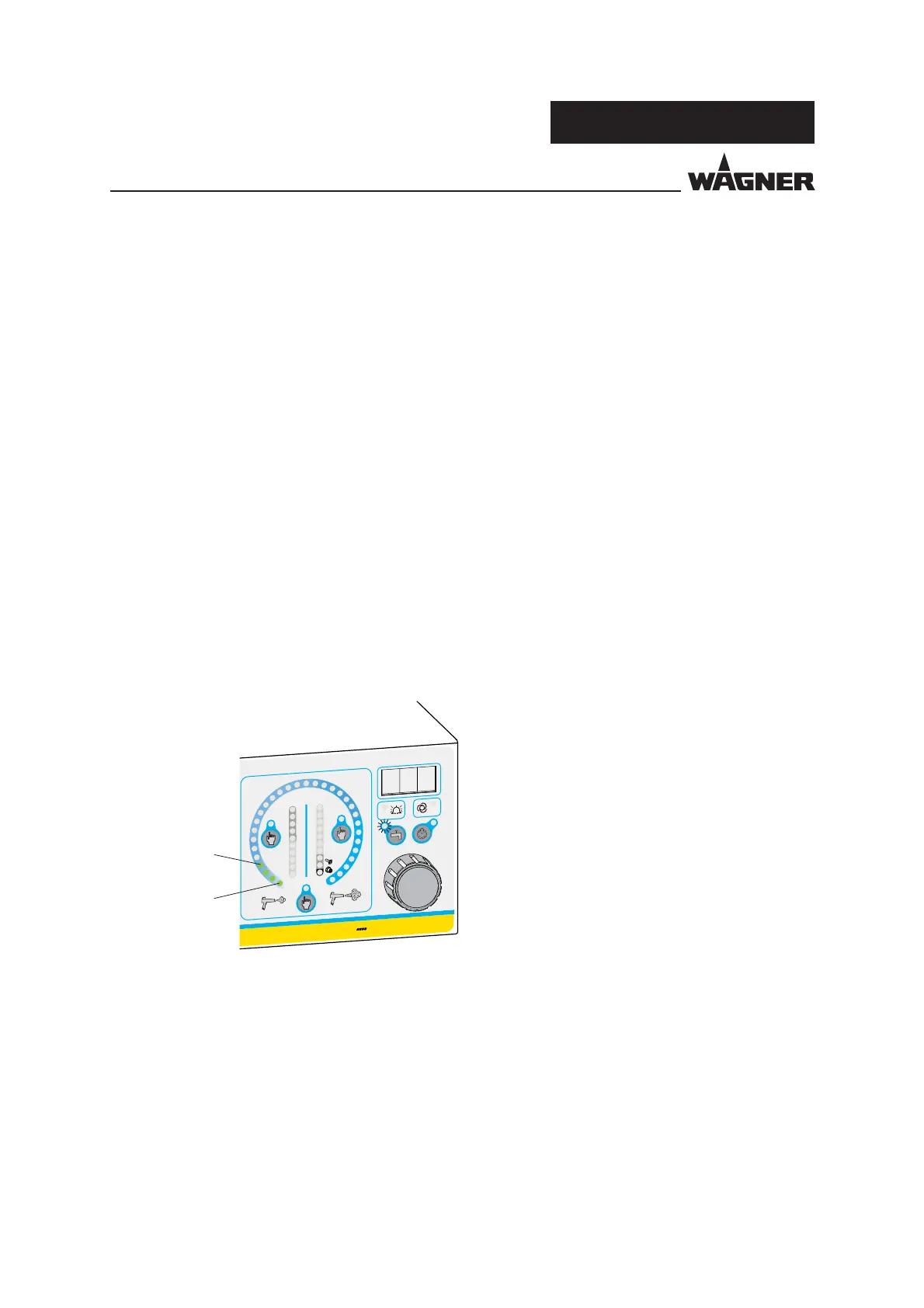

The "Powder Quantity" LED display 33 displays the
o set stage currently used as point, e.g., the  rst LED
lights up if stage 0 is selected.
Level 0
Level 3
