WAGNER EvoMotion 40-15 User Manual

57
B_04135
3
1
2
5
6
4
11
20 Nm; 14.7 lbft
30 Nm; 22.1 lbft
7
8
9
10
12
13
OPERATING MANUAL
VERSION 12/2015
ORDER NUMBER DOC2333558
Order No. Designation
1 1 2329450 EvoMotion 40-15 PE/T
2 1 2329635 Fluid section 15 PE/T EM
3 1 U3B08018060 Air motor M80 EM
4 1 A359.71A Spacer
5 1 E516.71A Safety  xture spacer
6 2 9900353 Hexagon socket cylinder head screw
7 1 2332394 Holder plate
8 4 9920106 Washer
9 4 9900330 Hexagon socket cylinder head screw
10 3 3055157 Hexagon nut with clamp
11 3 H115.62 Tie rod
12 1 T6140.00A Pump air regulator set
13 1 9998253 Male stud elbow 8-1/4

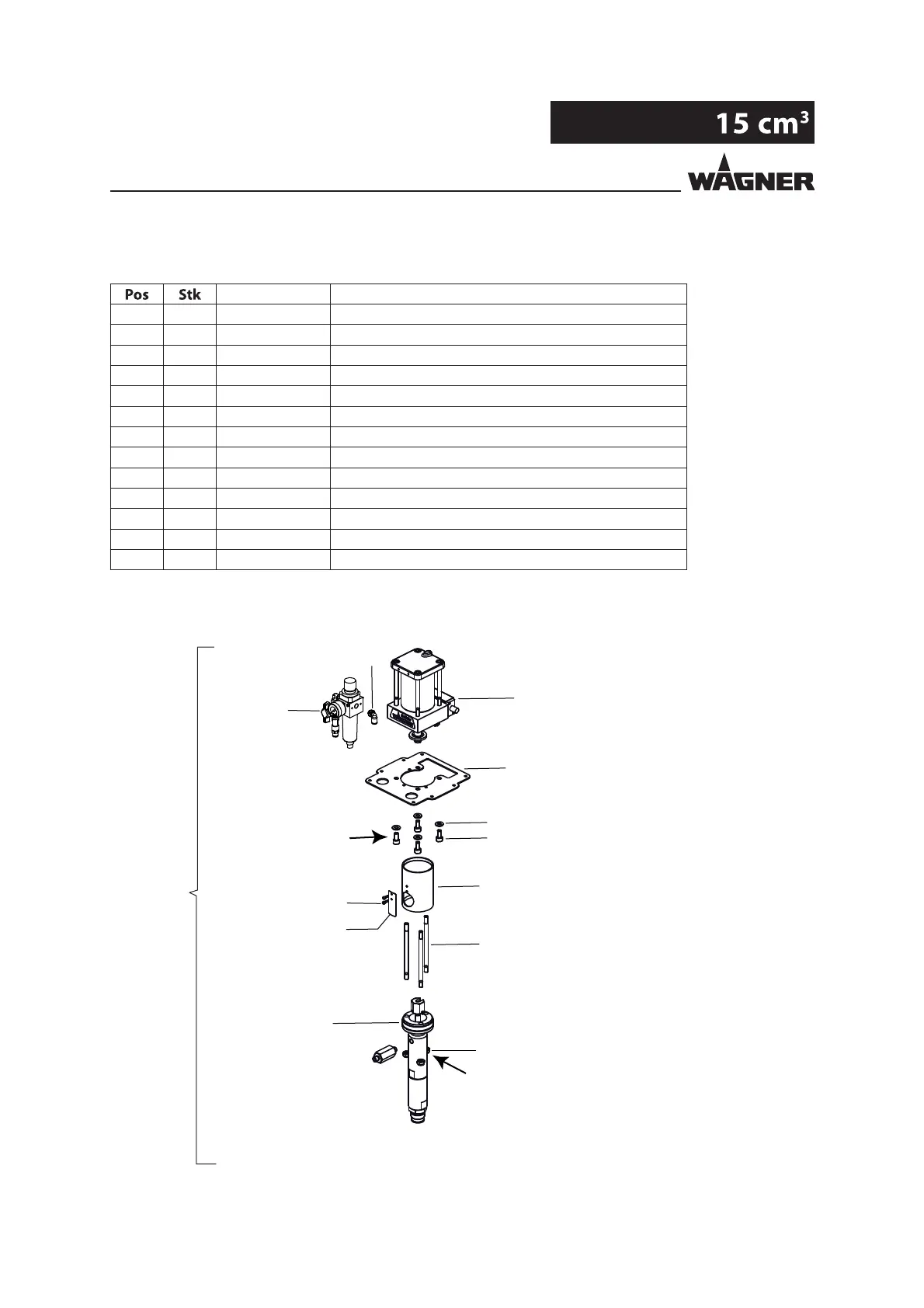

13.2 OVERVIEW OF THE COMPONENTS

WAGNER EvoMotion 40-15 Specifications

General

Brand	WAGNER
Model	EvoMotion 40-15
Category	Water Pump
Language	English
