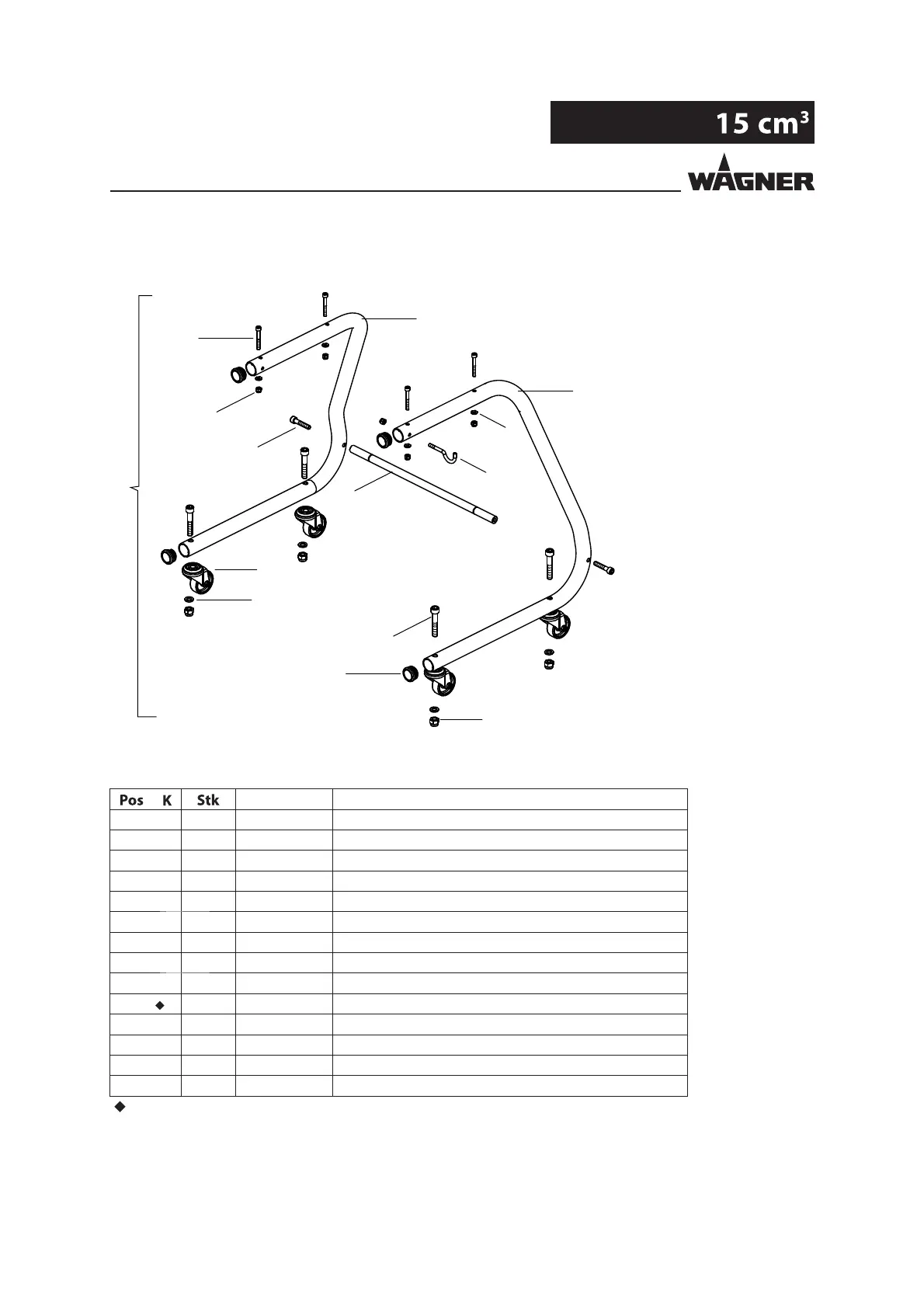

13.8 4WHEEL TROLLEY
Order No. Designation
1 1 T6196.00 Trolley, 4 wheels
2 5 9910204 Hexagon nut with clamp
3 1 E3107.92B Frame, right
4 1 E3107.92C Frame, left
5 1 H009.62 Spray gun hook
6 1 H1156.62 Frame pin
7 4 R204.07 Plug
8 4 3155404 Contact washer, M08
9 4 9920106 Washer
10 4 R120.00F Wheel
11 4 9900311 Hexagon socket cylinder head screw
12 4 9900389 Hexagon socket cylinder head screw
13 2 9900309 Hexagon socket cylinder head screw
14 4 3055157 Hexagon nut with clamp
= Wearing parts
