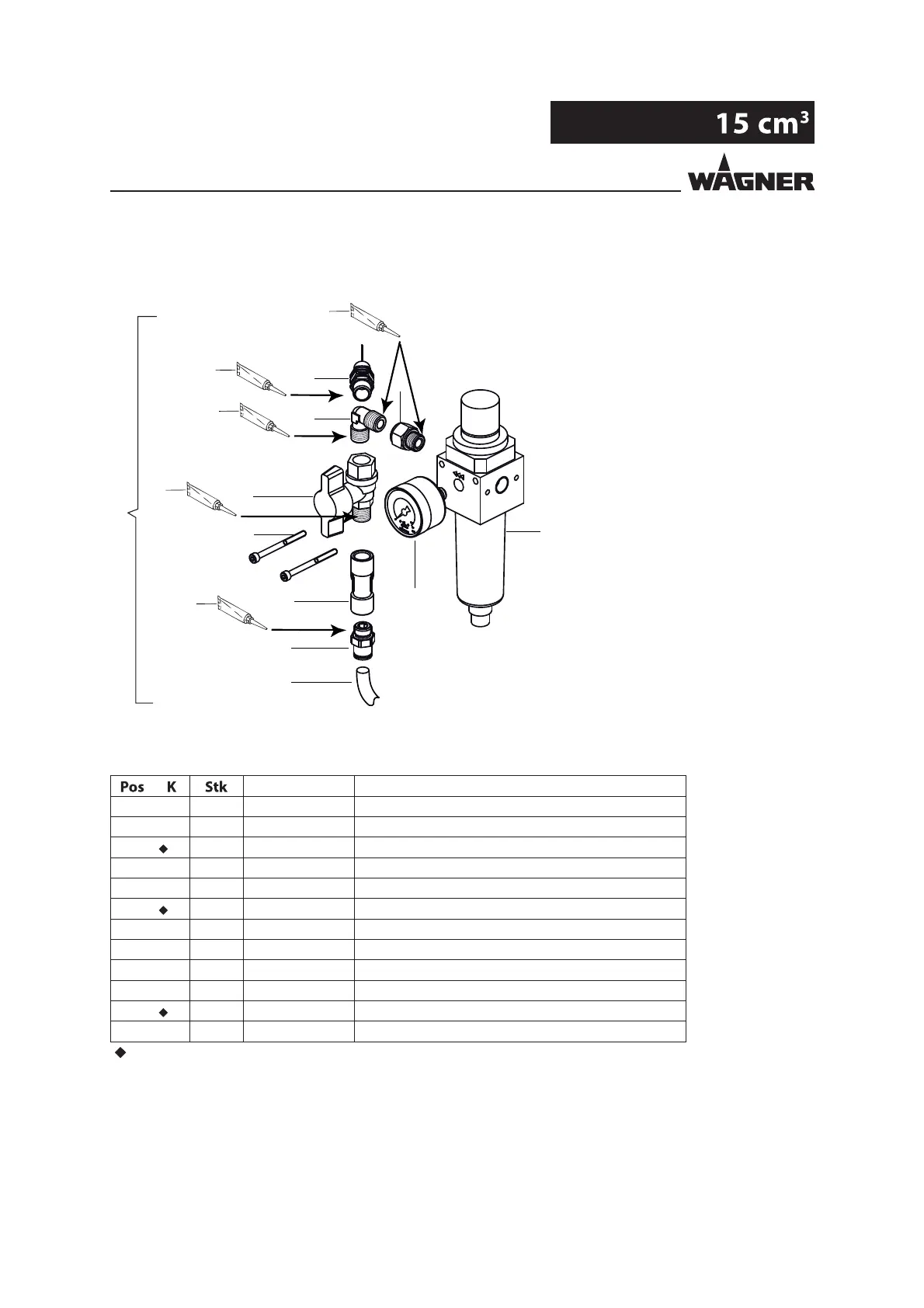

13.5 AIR REGULATOR SET FOR EVOMOTION 4015
Order No. Designation
1 1 T6140.00A Pump air regulator set
2 2 9906026 Hexagon socket cylinder head screw
3
1 9998677 Pressure gauge 0-1 MPa; 0-10 bar; 0-145 psi (d40)
4 1 9985682 Reducer
5 1 9998039 Screw-in connection's elbow
8
1 M101.00 Ball valve, FM
9 1 P484.00C1 Safety valve 1/4"
10 1 M297.00 T-connection
11 1 9992743 Straight threaded tting
12 0.32 m 9982078 Hose, black AD8 x 1,25 (0.32 m; 1.05 ft long)
13
1 P124.00M Filter regulator, CZ 1/4
14 1 9992831 Loctite® 542
= Wearing parts
