OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

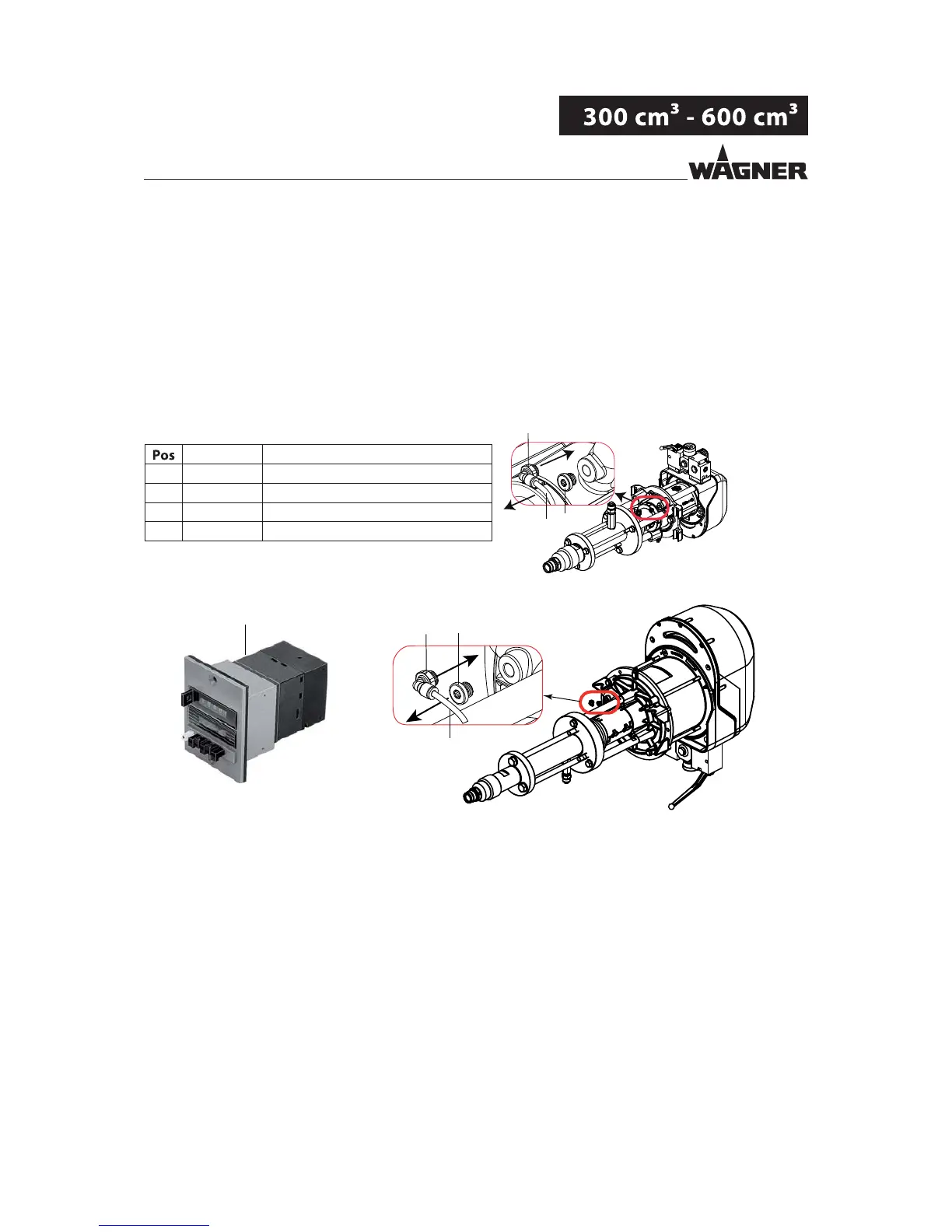

5.4.4 STROKE COUNT OPTION
Each air motor has a 1/8" air connection with which the air pressure in the lower air motor
chamber can be measured. This signal can be used for counting the strokes in an external
control, for example.
The pressure signal corresponds to the set working air pressure and is available during the
complete upwards stroke of the pump. If both of the signal anks are evaluated, the upper
and lower reversal point can be determined. A 4/2mm; 0.16/0.08 inch air hose is used as
an air signal line.
Pneumatic pumps: Puma and Leopard
Pneumatic pumps: Jaguar
Order No. Designation
1 9998675 Threaded plug
2 9999066 Male stud elbow
3 9982072 Air hose (per meter)
4 9943049 Pneumatic pre-selection counter
To Next Page
