6.5.2 FILLING WITH SEPARATING AGENT
Before every start-up, the following points
should be observed as laid down in the
operating manual:
- Secure gun with safety clip.
- Check the permissible pressures.
- Check all connections for leaks.
- Check hoses for damage.
It should be ensured that the device is in
the following state before carrying out
any work on it:
- The pressure should be released from
the pump and high-pressure hose
with gun.
- The gun should be secured with the
safety clip.
- Interrupt the air supply.
closed
open
EMERGENCY STOP

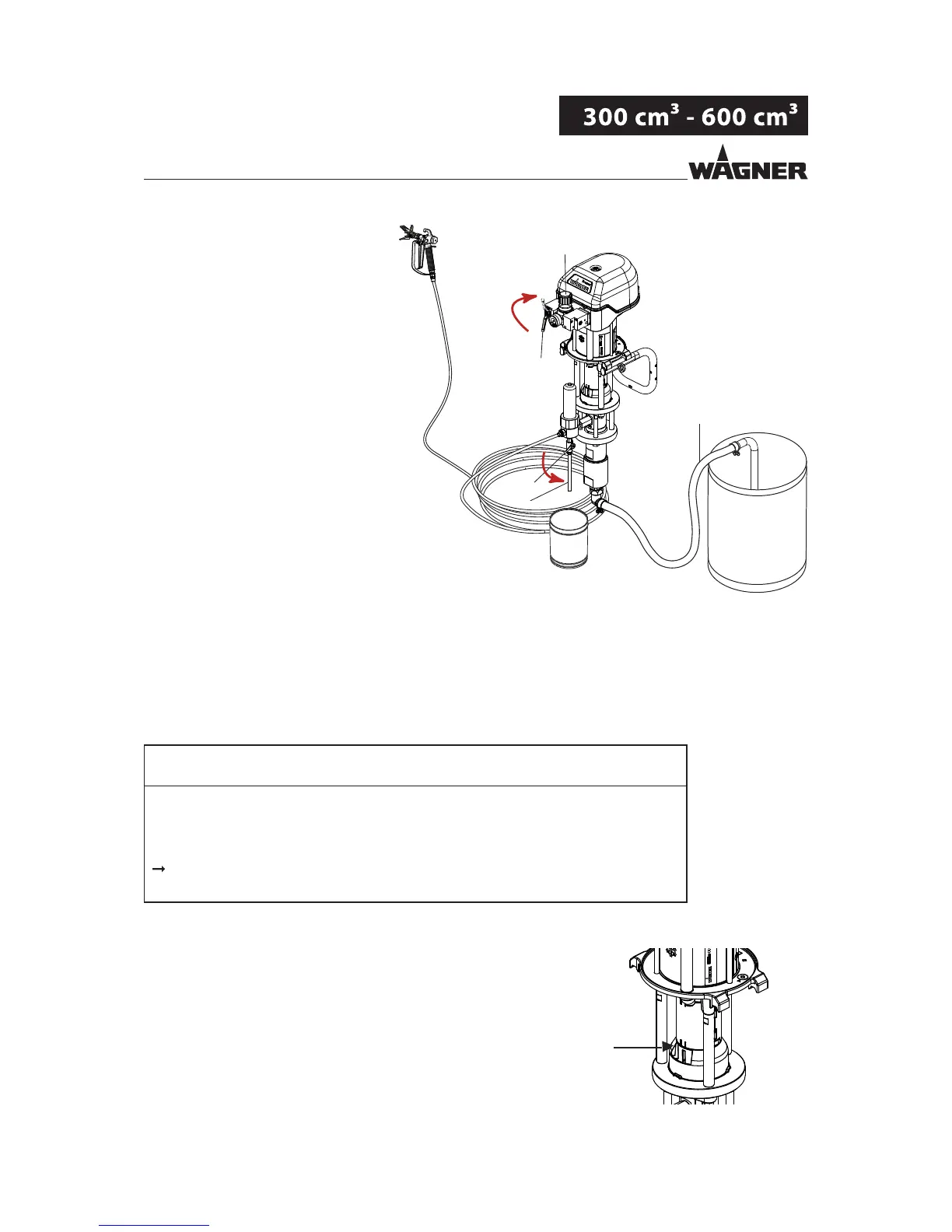

In case of unforeseen occurrences the ball valve (2) should be closed immediately and the
return valve (3) opened.
Place the supplied separating agent into the separating agent cup.
Filling level: 1 cm; 0.4 inch under the cup edge.
Separating agent: Order No. 9992504
Notice
Maximum permissible inclination of pump for moving, transportation etc.
after lling with separating agent is ± 30°.
The pump must be vertical during operation.
Piston pump dry run!
High wear/damage to the packings.
Paint or solvent can escape if the seals are dry.
Ensure that the separating atgent container is lled with su cient separating agent.
Fill level 1 cm; 0.4 inch under the pot edge.
