OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

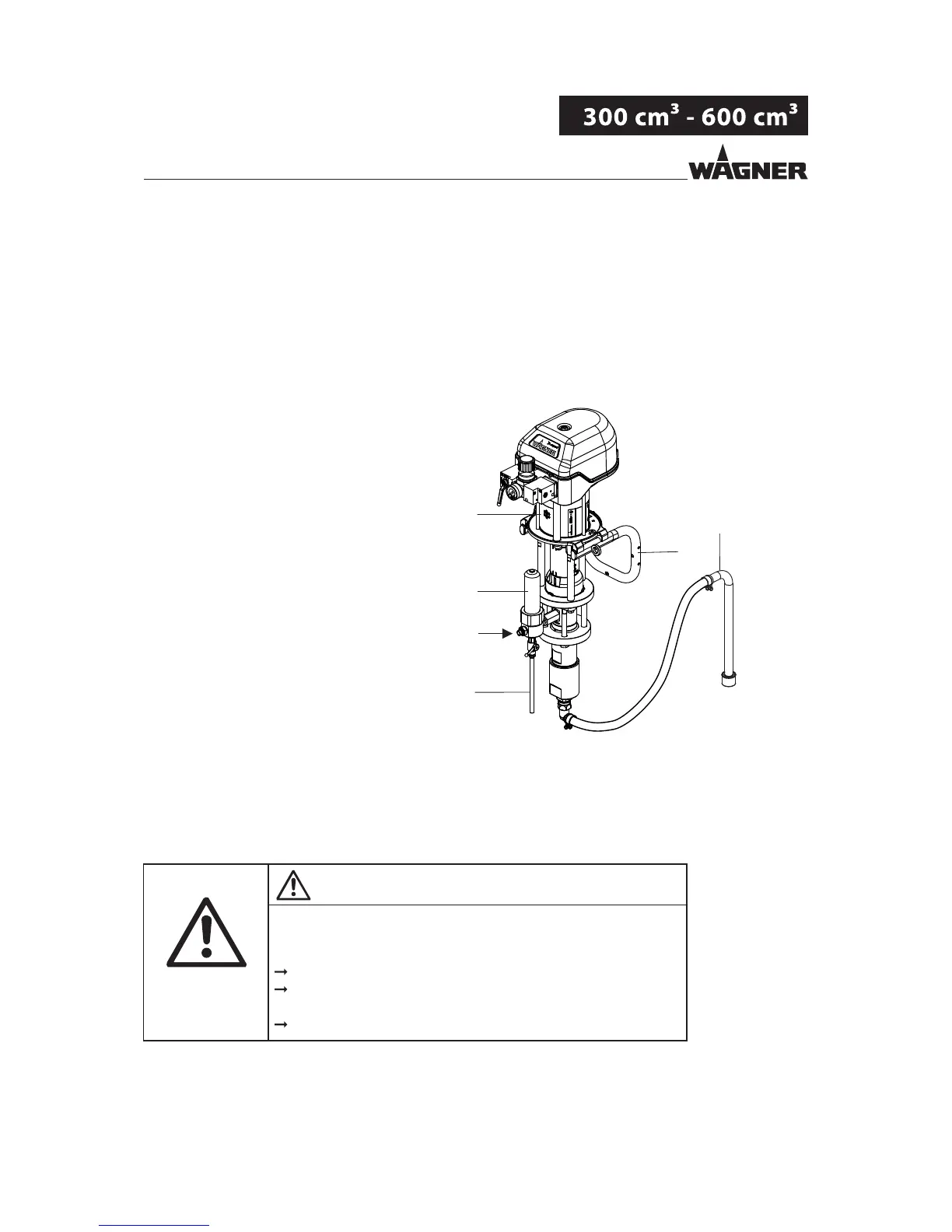

6.3 ASSEMBLING THE PUMP
Procedure:
1. Mount the pump on a stand, a trolley
or a wall mount (6).
2. Mount high pressure lter (3).
3. Mount suction system (5).
4. Mount return tube (4) or return hose.
5. Connect to material supply system
or high pressure hose and gun in
accordance with gun operating
instructions (2).
Notice
This pump can be used as part of a spraying or feed system. The individual components are
shown in the accessories, or can be arranged with a spraypack con gurator. The nozzles
must be selected according to the gun operating manual.
Inclined ground!
Risk of accidents if the device rolls away/falls.
Position the carriage with the piston pump horizontally.
If the surface is inclined, position the feet of the trolley towards
the gradient.
Secure the trolley.
WARNING
