OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

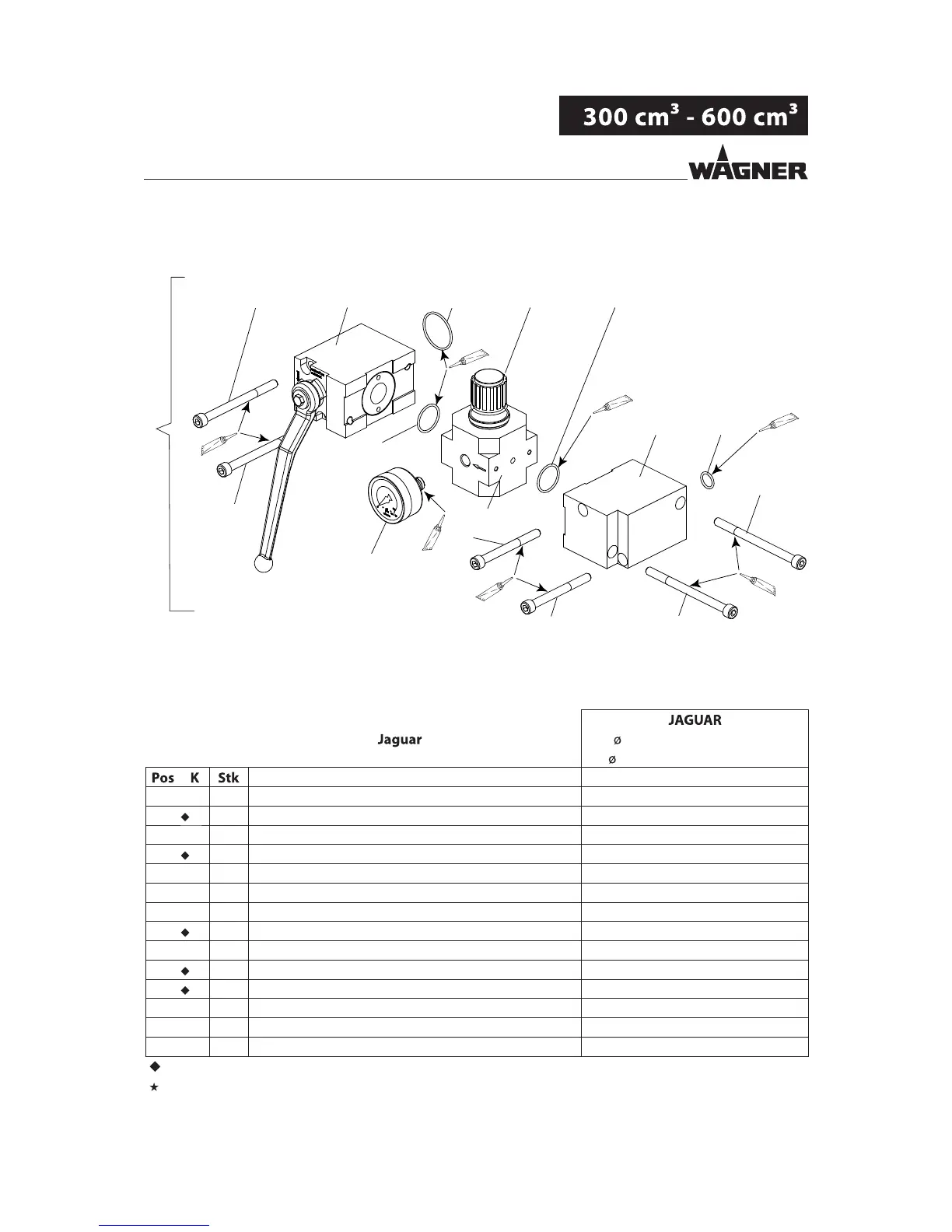

11.3.5 JAGUAR AIR MOTOR REGULATOR
Air motor regulator spare parts list 220 mm / stroke 150 mm
8.7 inches / stroke 6 inches
Designation Order No.
1 1 Pressure regulator unit, 9", complete 2328609
2
1 Pressure regulator valve 9" 2309974
3 1 Distribution piece, 9" 2309963
4
1 Pressure gauge 0-10 bar (d50) 9998725
5 2 Hexagon socket head screw 9900360
6 2 Hexagon socket head screw 9907087
7 2 Hexagon socket head screw 9900356
8 1 O-ring 9974166
9 2 O-ring 3105540
10 1 O-ring 9971405
11 1 Edge ball valve, 9" 2310637
12 1 Molykote DX grease 9992616
13 1 Loctite, 542 50 ml; 50 cc 9992831
14 1 Grease beacon 9998808
= Wearing part
= Included in service set
