OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

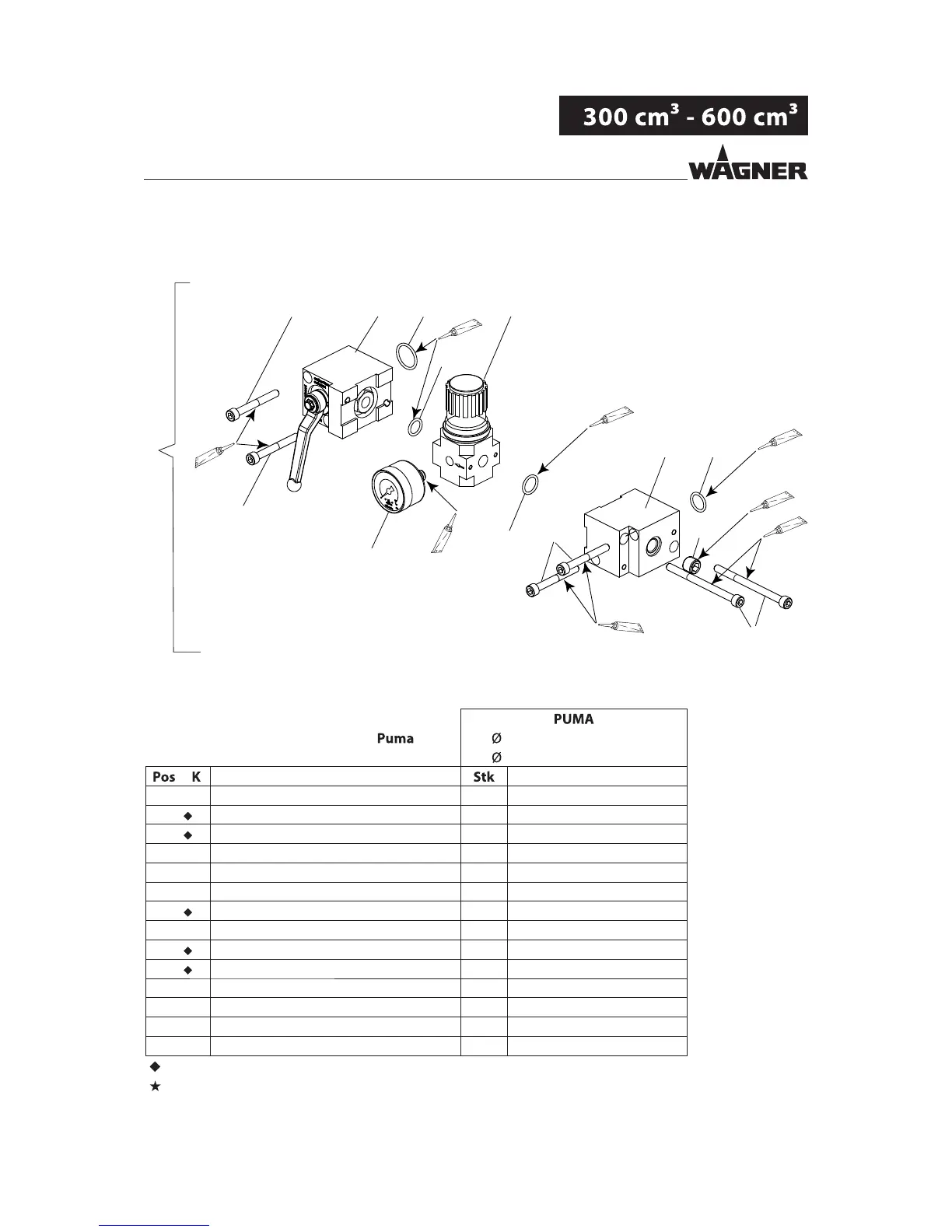

11.3.2 PUMA AIR MOTOR REGULATOR
Air motor regulator spare parts list 100 mm / stroke 150 mm
4 inches / stroke 6 inches
Designation Order No.
1 Pressure regulator unit, 4", complete 1 2328606
2
Pressure regulator valve, 4" 1 2309972
3 Pressure gauge 0-10 bar (d40) 1 9998677
4 Distribution piece, 4" 1 2309744
5 Hexagon socket head screw 2 9907039
6 Hexagon socket head screw 4 9900316
7
O-ring 2 9974166
8 O-ring 1 9971313
9 O-ring 1 9971137
10 Edge ball valve, 4" 1 2310635
11 Screw plug 1 9904407
12 Molykote DX grease 1 9992616
13 Loctite, 542 50 ml; 50 cc 1 9992831
14 Grease beacon 1 9998808
= Wearing part
= Included in service set
